Mini PC Q10100G6 1U10 Series
With Intel Bay Trail j1900 Processor and 6x Intel 1GbE, Qotom Mini PC Q190G6 1U Rack can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and so on. Small, quiet, compact and cheap, running 24/7, Qotom firewall appliance is a good solution for home, office, factory and so on.
- Total of Network Interfaces
- 6
- SFP(+)
- None
- 10G RJ45
- None
- 2.5G RJ45
- None
- 1G RJ45
- 6
- Serial Ports
- 1
Tell us the configuration and quantity you need.
Overview
Main Features
Intel Bay Trail Processor
1 × HDMI, 1 × RS-232 (RJ-45)
1 × USB 3.0, 3 × USB 2.0, 1 × SATA 3.0
1 × Mini PCIe, 1 × mSATA, 1 × M.2
6 × Intel I211-AT/I210-AT Gigabit LAN
Specifications
| Processor System | |
| CPU | Intel Bay Trail Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 6 × Intel I211-AT/I210-AT Gigabit LAN |
| Audio | No |
| Watch Dog | Yes |

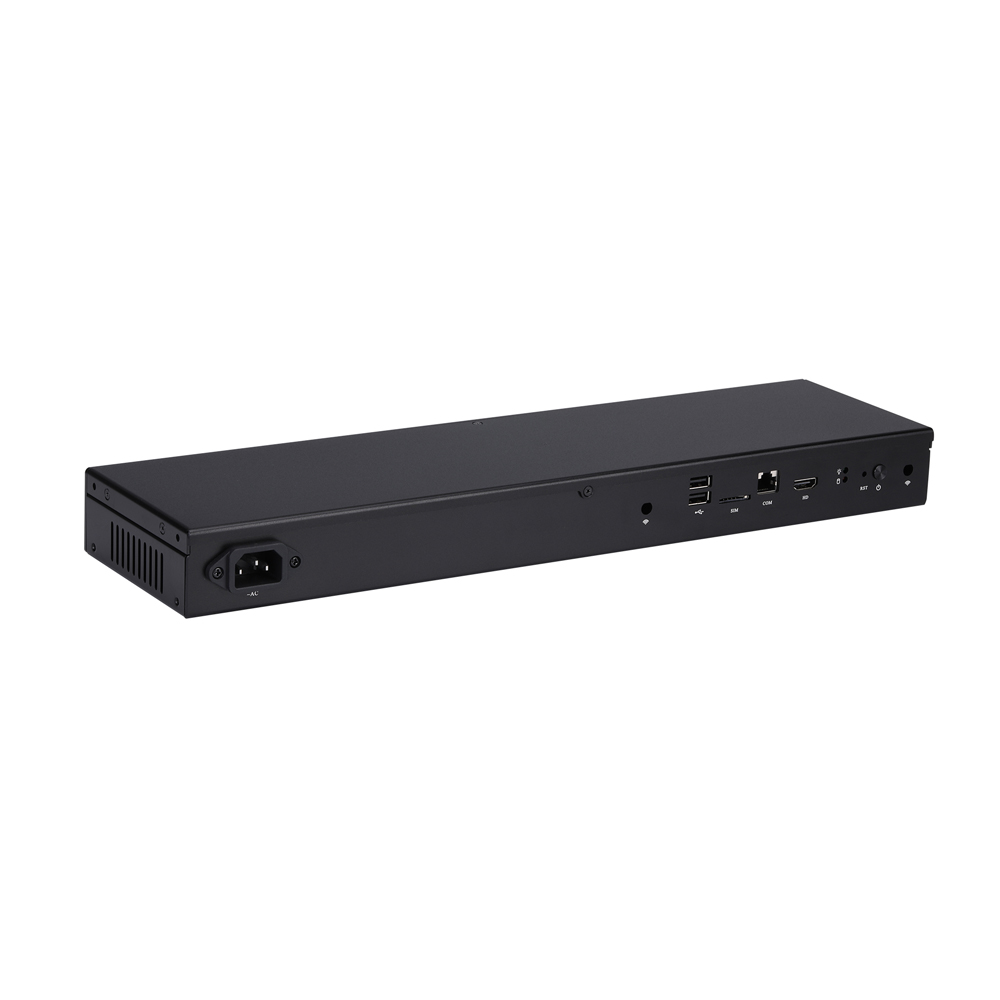

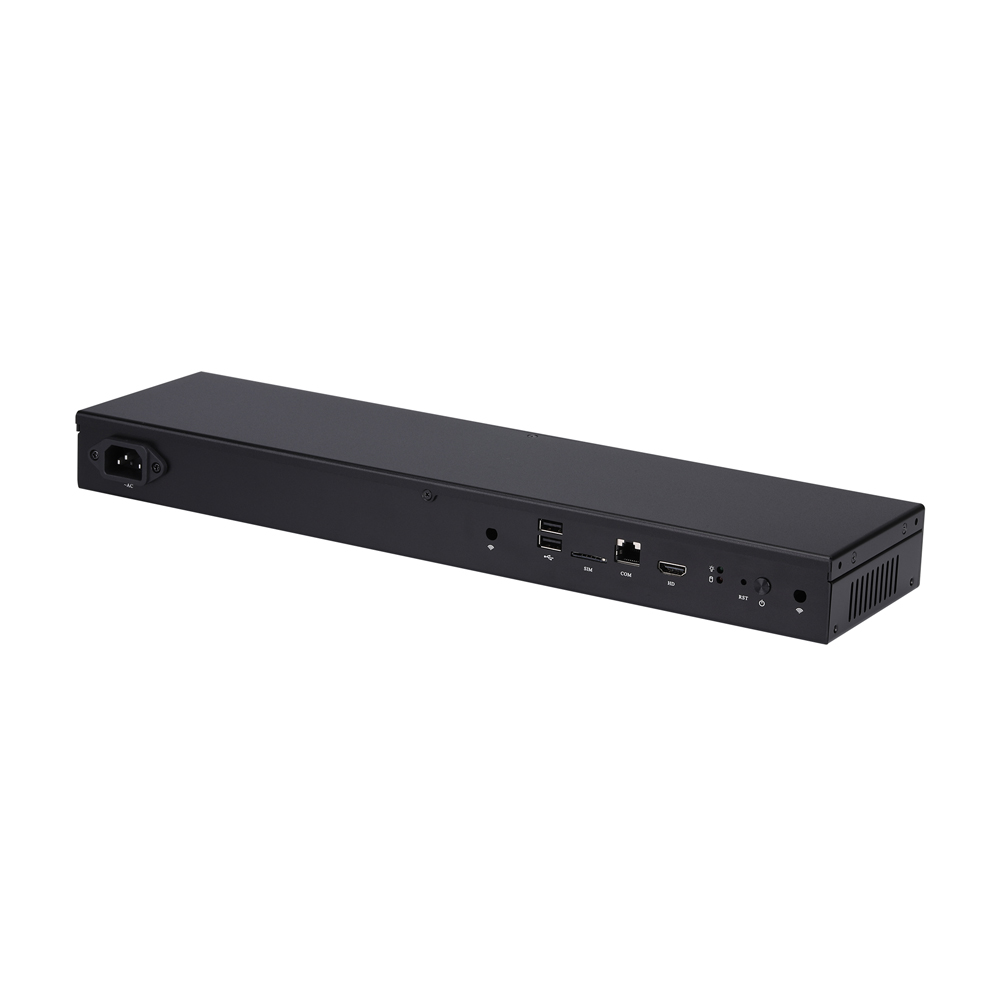

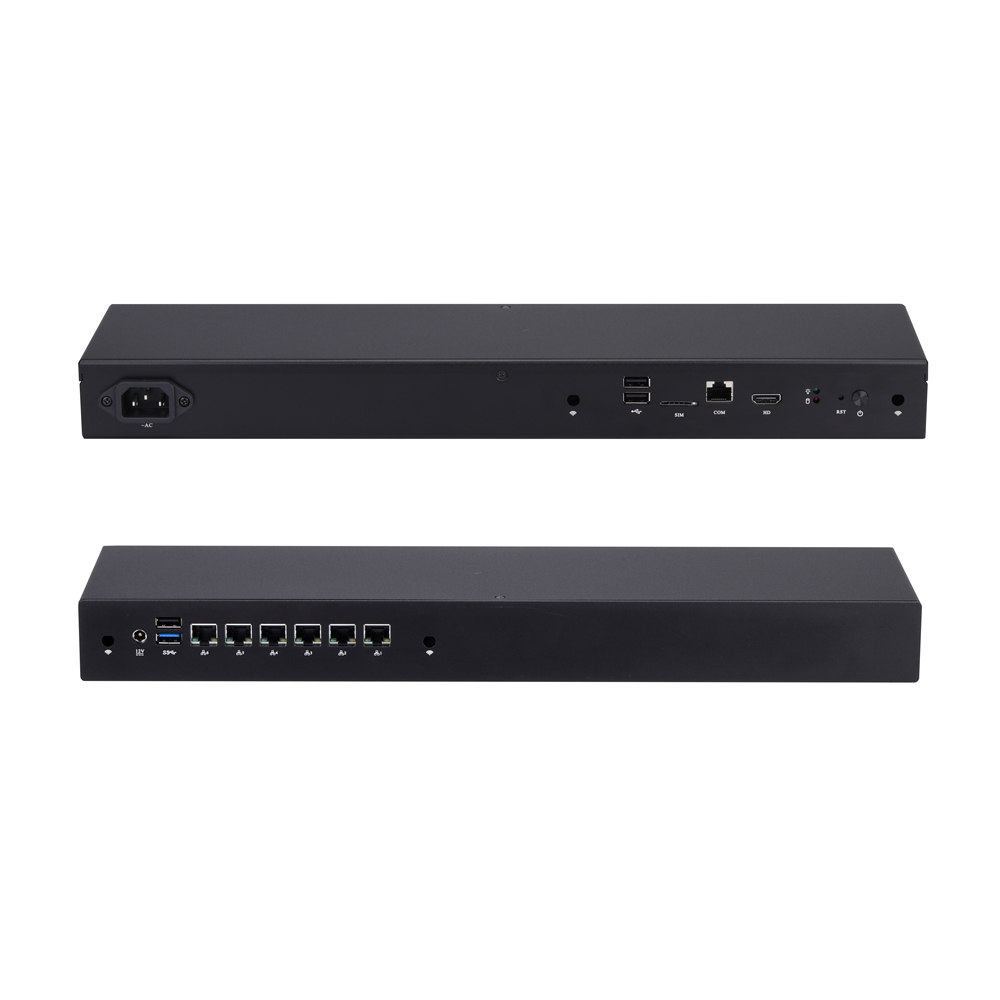

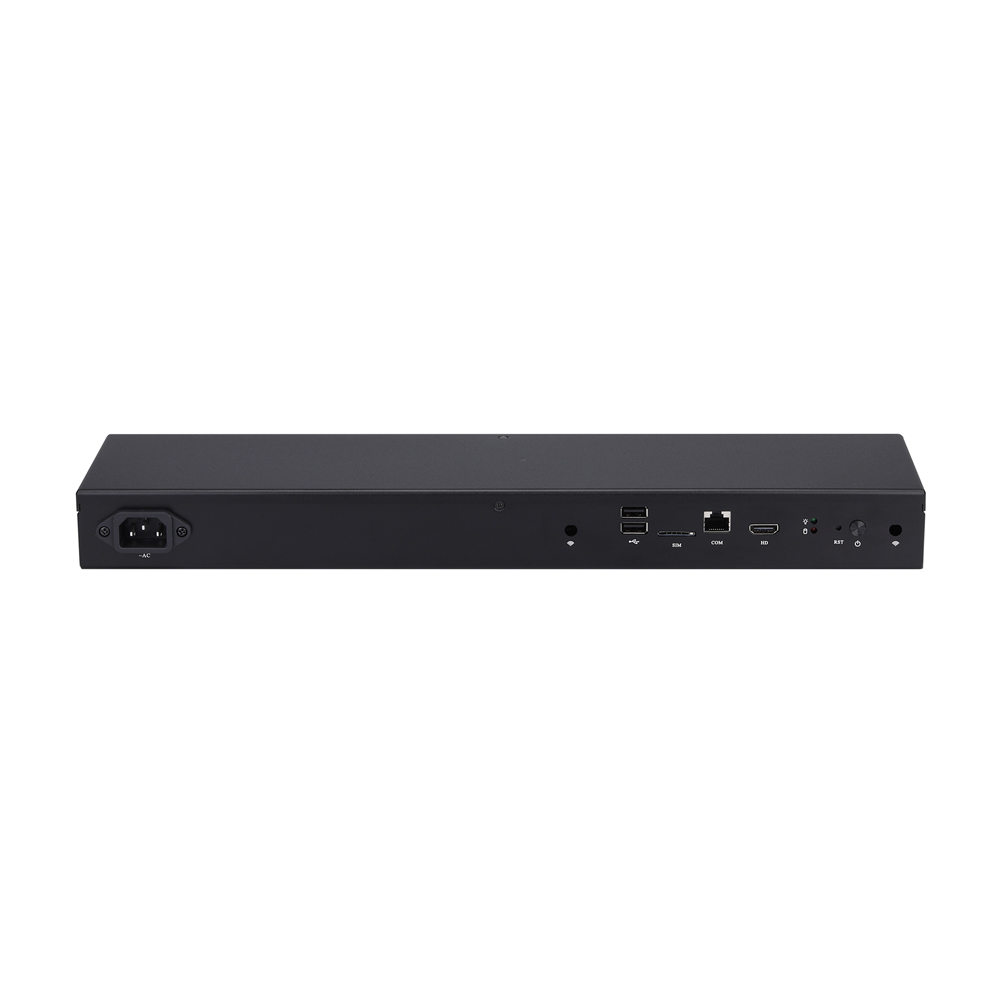

| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 2 × USB 2.0 |
| Video Output | 1 × HDMI |
| Serial Port | 1 × RS-232 (RJ-45) |
| SIM Slot | 1 |

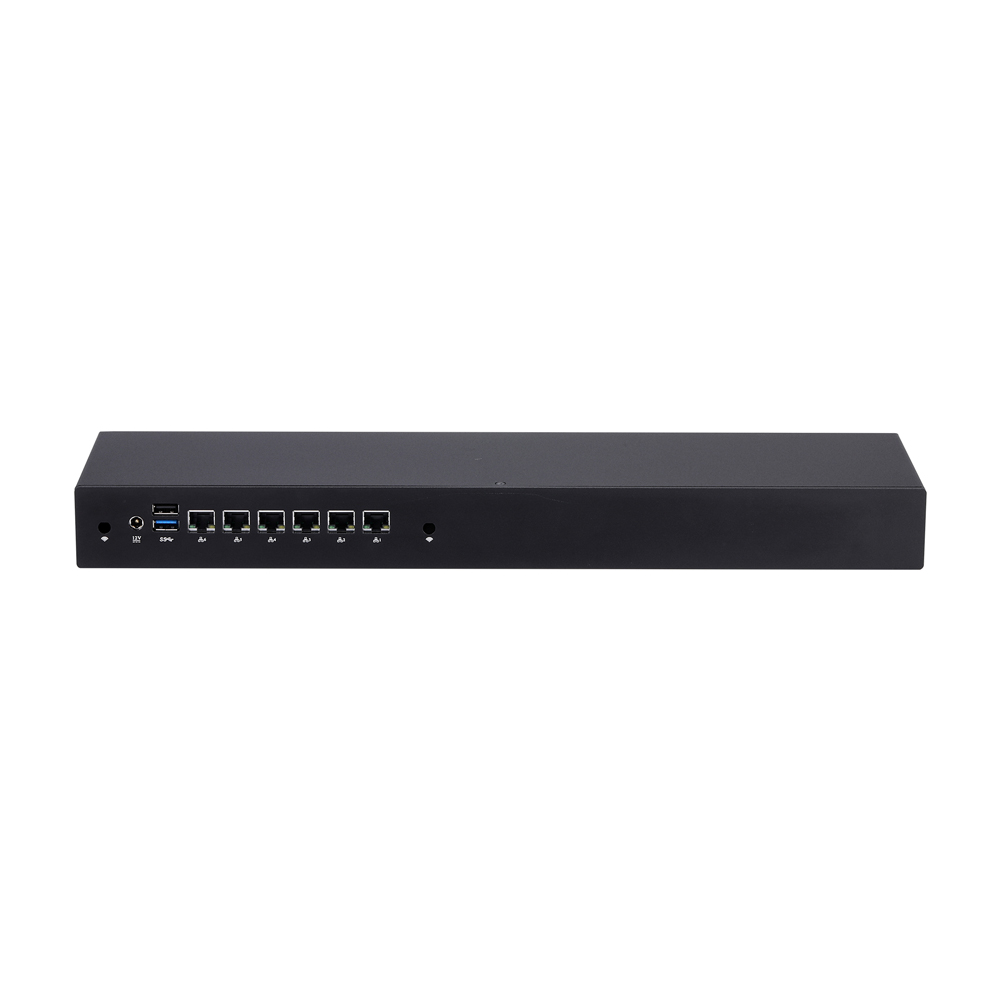

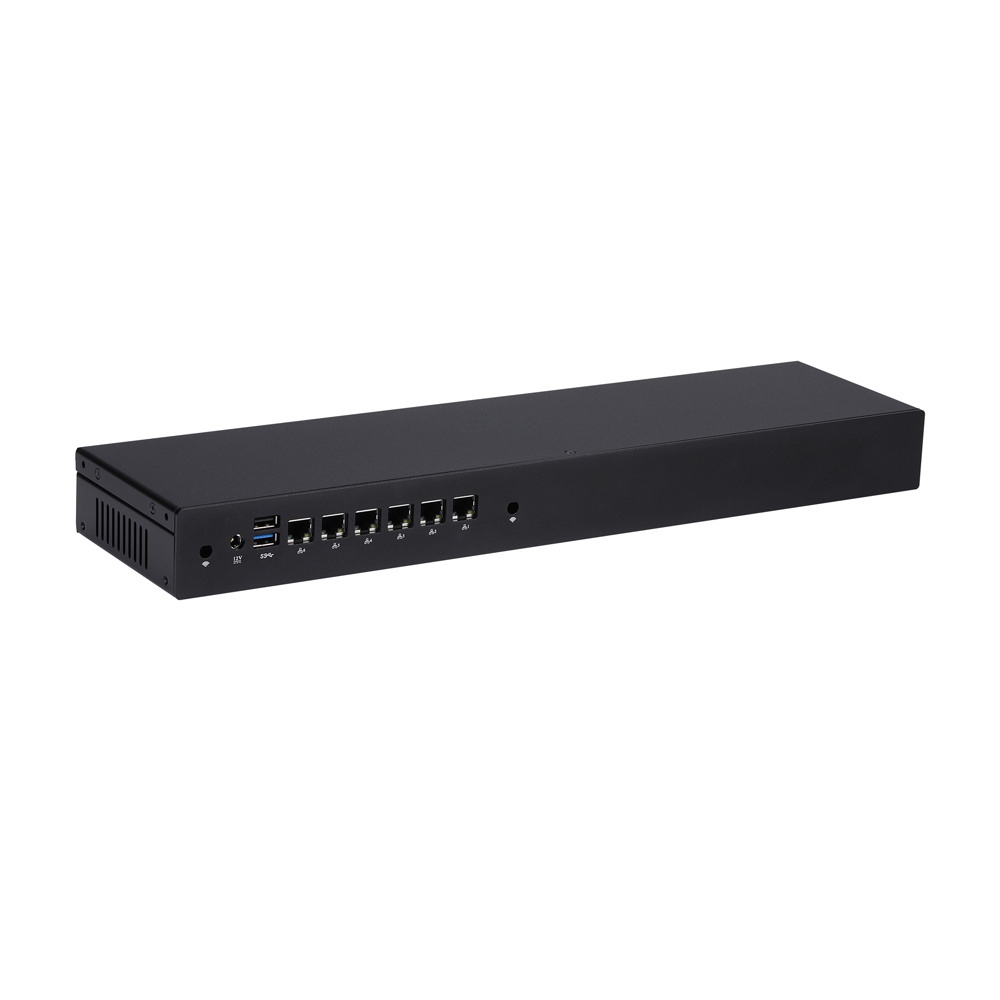

| Rear I/O | |
| Power | 1 × DC Jack |
| LED | 1 × USB2.0, 1 × USB3.0 |
| LAN | 6 × Intel I211-AT/I210-AT Gigabit LAN |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi (Default Only Support USB Device) |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| Serial Port | 0 |
| USB2.0 | 1, 2 × 5Pin, Pitch 2.54mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Power Requirement | |
| AC Input | AC 100-240V by Default |
| Power Adapter | DC 12V (5.5mm, 2.5mm) |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 440 × 112 × 44mm |
| Weight | 1.11kg |
| Mounting | No |
| Packaging Dimension | 545 × 180 × 90mm |
| Kensington Lock | No |
| Cooling Mode | Fan |
| OS Support | |
| OS | Windows 7, Windows 10, Linux |
In the box
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | AC Power Cord | 1 | |
| 3 | Screws for SATA SSD/HDD | 1 | |
| 4 | SATA cable for SSD/HDD | 1 | Option |
| 5 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2AC Power Cord1
- 3Screws for SATA SSD/HDD1
- 4SATA cable for SSD/HDD1Option
- 5Antennas2Option
Models & options
Ordering and Specifications Information
Quick Order Model: Q190G6-1U10
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q190G6 (Q10121G6) | 1U10 | Bay trail | Celeron | J1900 | 4 | 4 | 2.00Ghz | 2.42Ghz | 2M | Intel HD Graphics | 10W |
Q192G6 (Q10122G6) | 1U10 | Bay trail | Celeron | N2920 | 4 | 4 | 1.86Ghz | 2.00Ghz | 2M | Intel HD Graphics | 7.5W |
Q190G6
(Q10121G6)
1U10
- Case
- 1U10
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- J1900
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 2.00Ghz
- Max Turbo Frequency
- 2.42Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 10W
Q192G6
(Q10122G6)
1U10
- Case
- 1U10
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- N2920
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.86Ghz
- Max Turbo Frequency
- 2.00Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 7.5W
PC Case Options
| Category | SATA Support |
| S04 | Yes |
| 1U10 | Yes |
Custom Options
| Category | Description |
| Serial Port | 3 × RS-232 |
| VGA | 1 |
| GPIO | 1 |
| RS-485 | 2 (3/4) |
| USB 2.0 | 1 |
