Mini PC Q10400G4 S05 Series
Q710G4 integrates Intel Apollo Lake architecture J3455 4-core low-power processor, 4 x Gigabit card network, supports POE, SATA3.0, 4 USB, and can be expanded to support 3G/4G functions.
- Total of Network Interfaces
- 4
- SFP(+)
- None
- 10G RJ45
- None
- 2.5G RJ45
- None
- 1G RJ45
- 4
- Serial Ports
- 1
Tell us the configuration and quantity you need.
Overview
Main Features
Intel Apollo Lake Processor
1 × HDMI, 1 × RS-232 (RJ-45)
2 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
1 × Mini PCIe, 1 × mSATA
4 × Intel I211-AT/I210-AT Gigabit LAN (POE)
Specifications
| Processor System | |
| CPU | Intel Apollo Lake Processor |
| CPU TDP | By CPU |

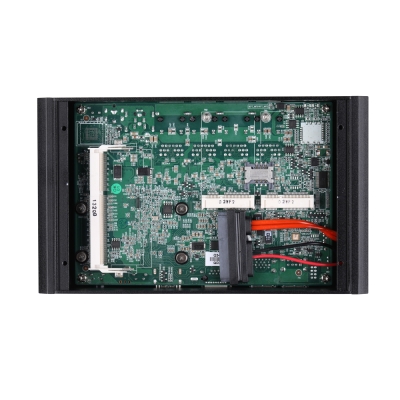

| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 4 × Intel I211-AT/I210-AT Gigabit LAN (Support POE) |
| Audio | No |
| Watch Dog | Yes |

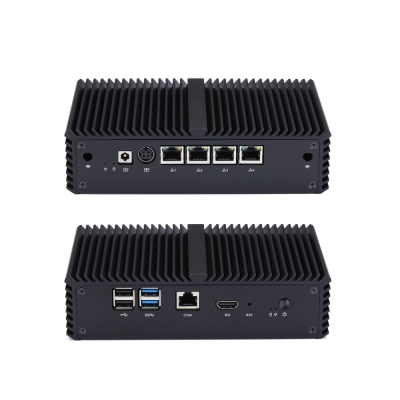

| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| Serial Port | 1 × RS-232 (RJ-45) |
| Video Output | 1 × HDMI |
| USB | 2 × USB 3.0, 2 × USB 2.0 |

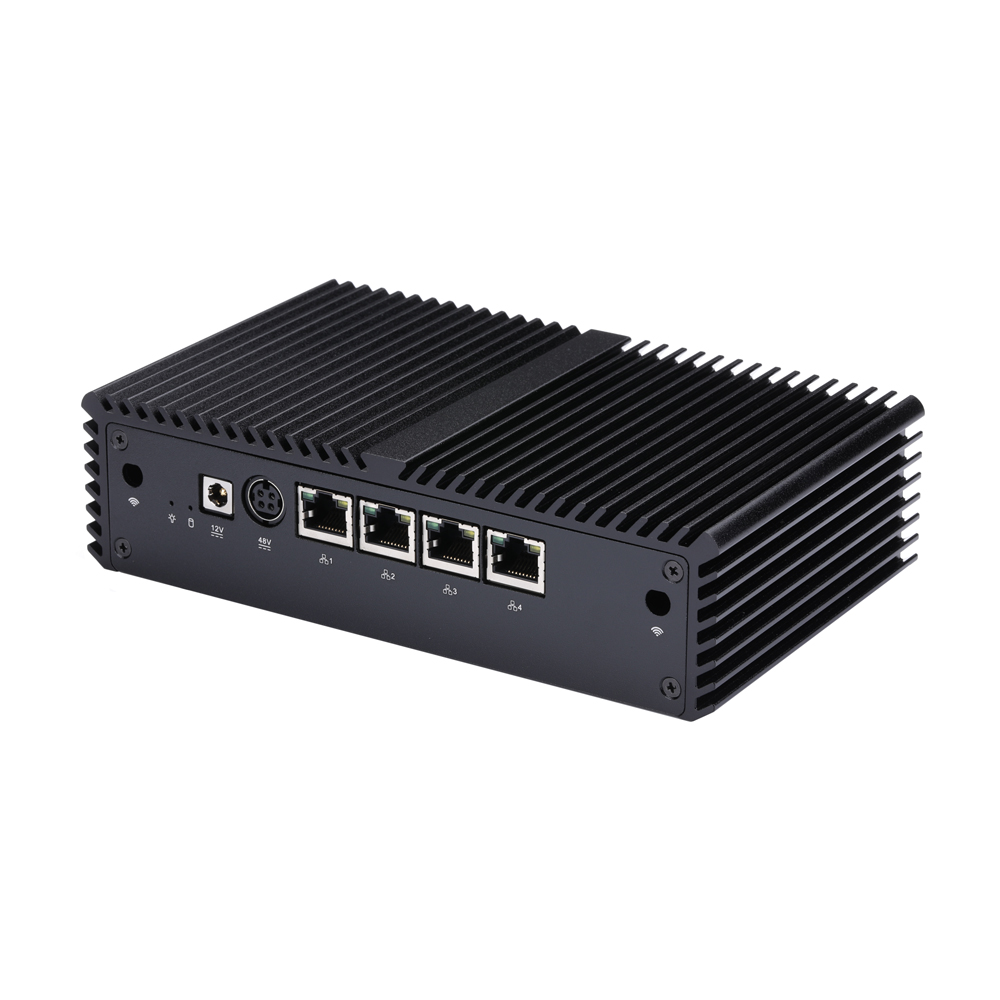

| Rear I/O | |

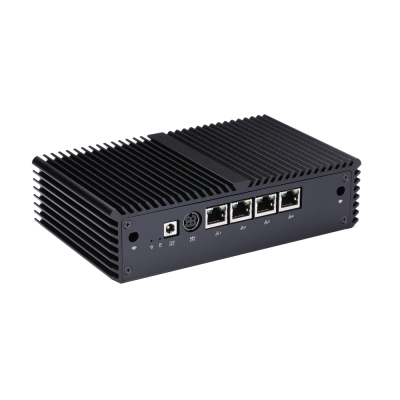

| Power | 1 × 12V DC Jack, 1 × 48V DC Jack for POE |
| LED | 1 × Power LED, 1 × HDD LED |
| LAN | 4 × Intel I211-AT/I210-AT Gigabit LAN (Support POE) |
| Audio | No |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi (Default Only Support USB Device) |
| SIM Card Slot | 1 |
| AutoStart Jumper | No |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 0 |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 1 × 12V3A, DC Jack: 5.5mm/2.5mm |
| Power Adapter for POE | 1 × 48V2A, DC Jack: Mini DIN |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 187 × 111 × 49mm |
| Weight | 1.00kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | UEFI Windows 10, Linux |
In the box
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2Silicone Mat4
- 3VESA Bracket1
- 4Screws for VESA Bracket1
- 5Power Adapter1
- 6AC Power Cord1
- 7Screws for SATA SSD/HDD1
- 8SATA cable for SSD/HDD1Option
- 9Antennas2Option
Models & options
Ordering and Specifications Information
Quick Order Model: Q710G4-S05
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | ProcessorGraphics | TDP |
Q705G4 (Q10411G4) | S05 | Apollo Lake | Celeron | J3355 | 2 | 2 | 2.00Ghz | 2.50Ghz | 2M | Intel HD 500 | 10W |
Q710G4 (Q10421G4) | S05 | Apollo Lake | Celeron | J3455 | 4 | 4 | 1.50Ghz | 2.50Ghz | 2M | Intel HD 500 | 10W |
Q705G4
(Q10411G4)
S05
- Case
- S05
- Code Name
- Apollo Lake
- Processor Type
- Celeron
- Processor Number
- J3355
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 2.00Ghz
- Max Turbo Frequency
- 2.50Ghz
- Cache
- 2M
- ProcessorGraphics
- Intel HD 500
- TDP
- 10W
Q710G4
(Q10421G4)
S05
- Case
- S05
- Code Name
- Apollo Lake
- Processor Type
- Celeron
- Processor Number
- J3455
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.50Ghz
- Max Turbo Frequency
- 2.50Ghz
- Cache
- 2M
- ProcessorGraphics
- Intel HD 500
- TDP
- 10W
Custom Options
| Category | Description |
| GPIO | 1 |
| USB 2.0 | 2 |
| VGA | 1 |
| Serial Port | 3 × RS-232 (COM1/COM2 Support 5V/12V) |
| RS-485 | 2, COM1/2 can be set up as RS-485 |
