Mini PC Q10500G5 S08 Series
Q10500G5 mini PC features Intel Gemini Lake/R CPUs, 5× 2.5G Intel LAN, triple storage expansion, and compact design—ideal for high-speed firewall, router, and edge network applications.
- Total of Network Interfaces
- 5
- SFP(+)
- None
- 10G RJ45
- None
- 2.5G RJ45
- 5
- 1G RJ45
- None
- Serial Ports
- None
Tell us the configuration and quantity you need.
Overview
Main Features
Intel Gemini Lake Processor
Intel Gemini Lake-R Processor
1 × HDMI, 1 × SATA 3.0
2 × USB 3.0, 2 × USB 2.0
1 × M.2, 1 × mSATA, 1 × Mini PCIe
5 × Intel I225-V/I226-V 2.5 Gigabit LAN
Q10500G5 Series Expansion Models
Standard model: Q10500G5

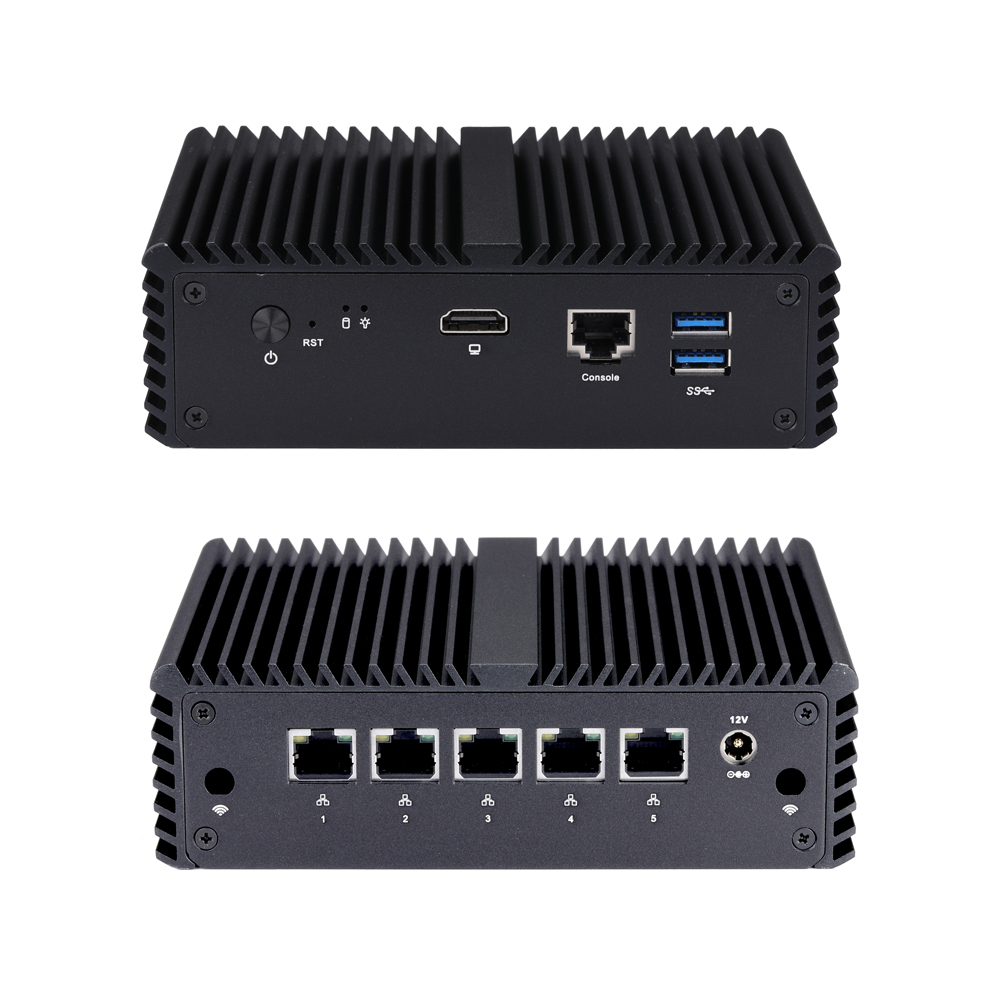

Q10500G5C variant:
Replaces 2×USB 2.0 ports with 1×RS-232 (RJ-45) port
Specifications
| Processor System | |
| CPU | Intel Gemini Lake Processor Intel Gemini Lake-R Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 16G) Only Supports a Single 1G Memory Chip |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 5 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Audio | No |
| Watch Dog | Yes |

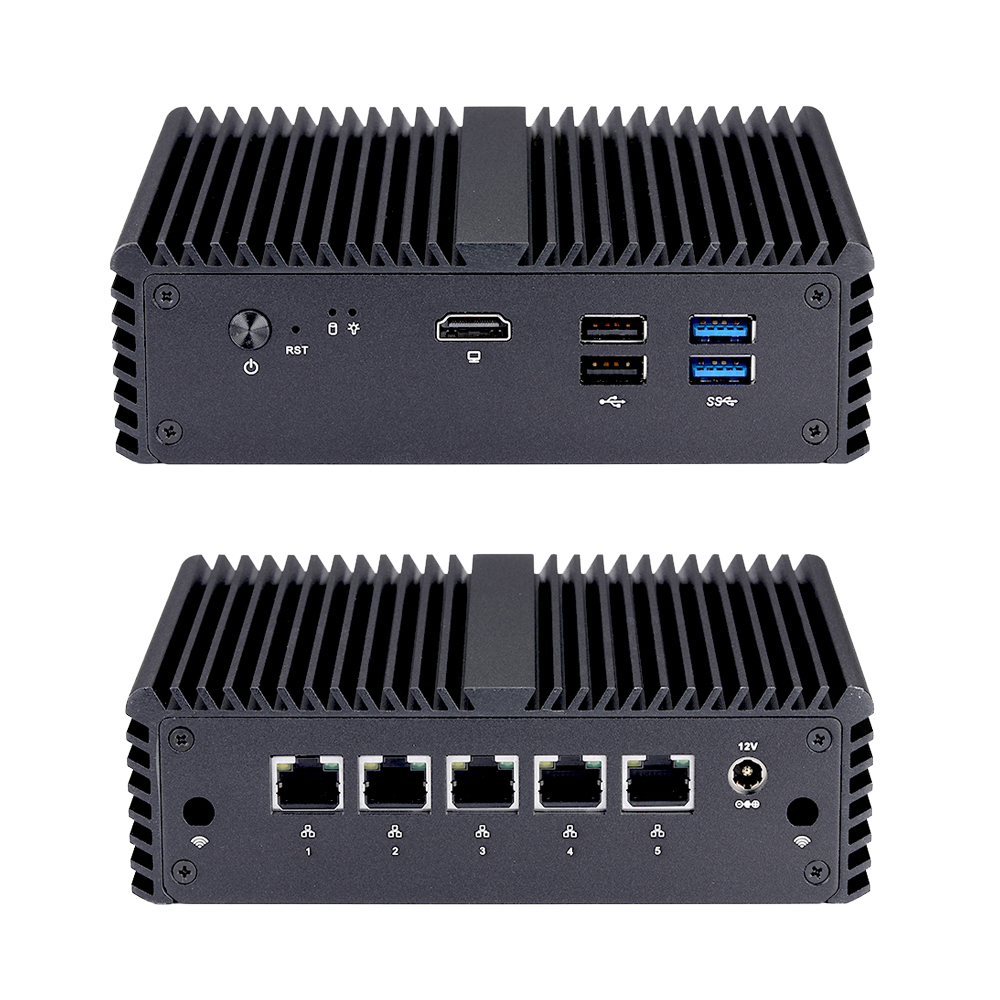

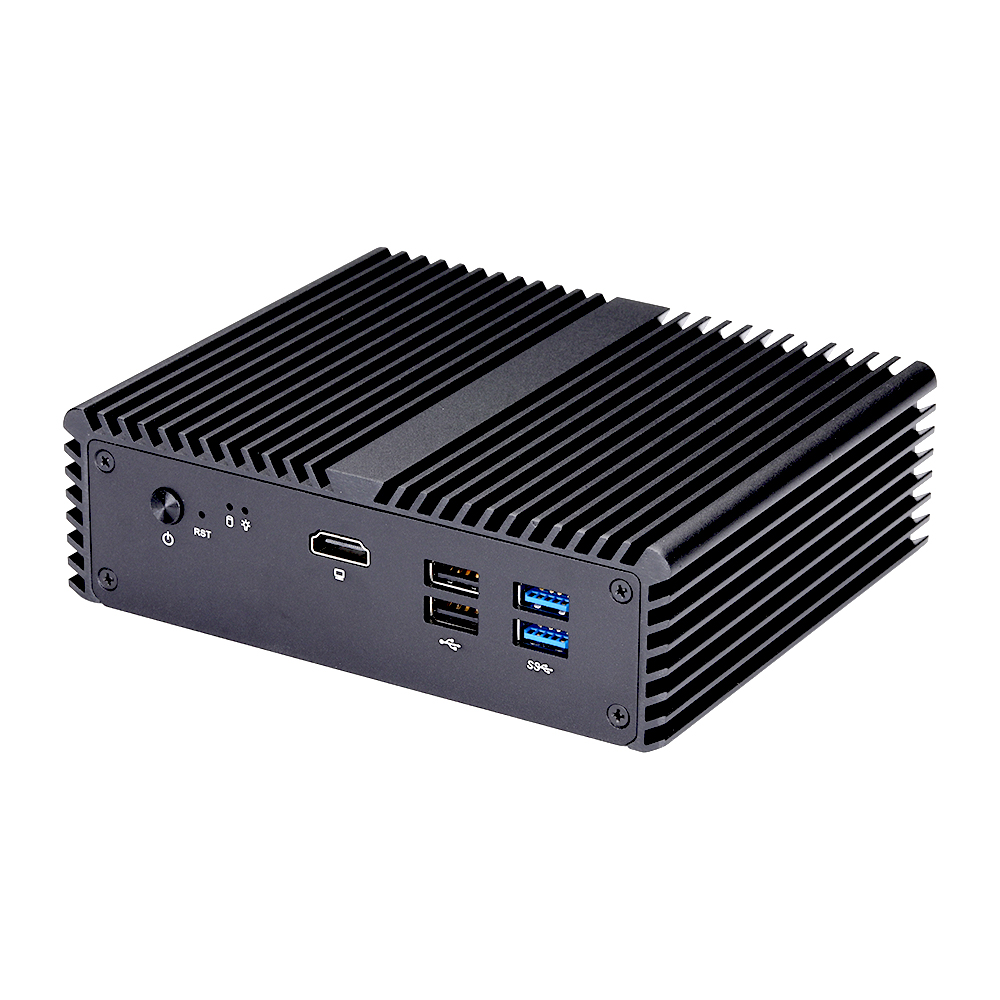

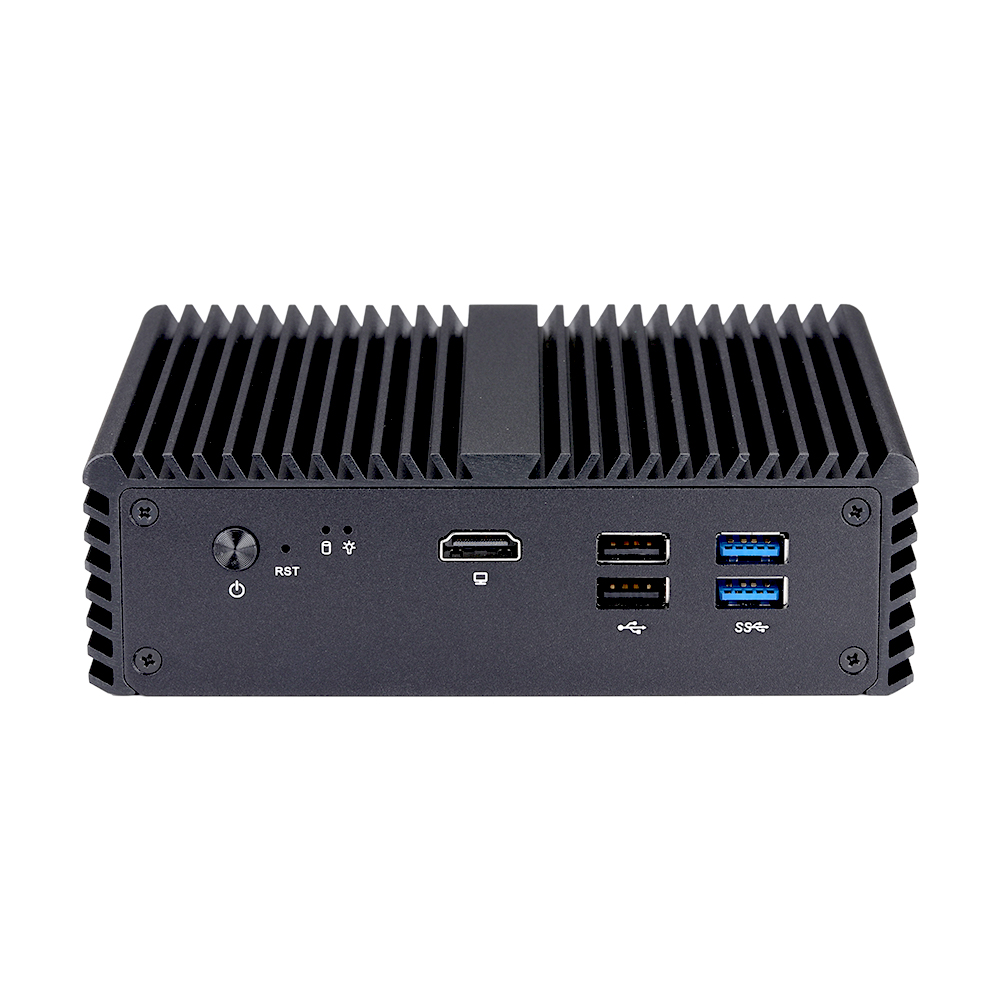

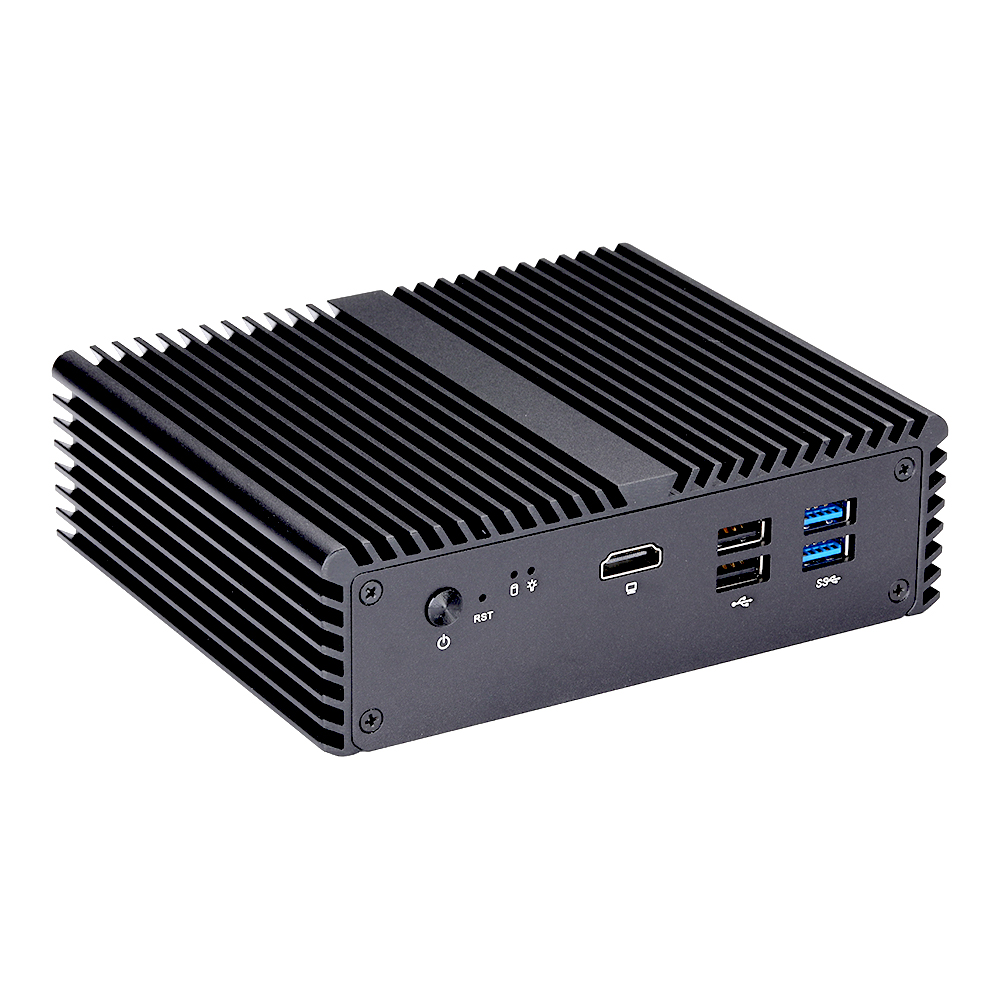

| Front I/O | |
| Power Button | 1 |
| Reset Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 2 × USB 2.0, 2 × USB 3.0 |
| Video Output | 1 × HDMI |

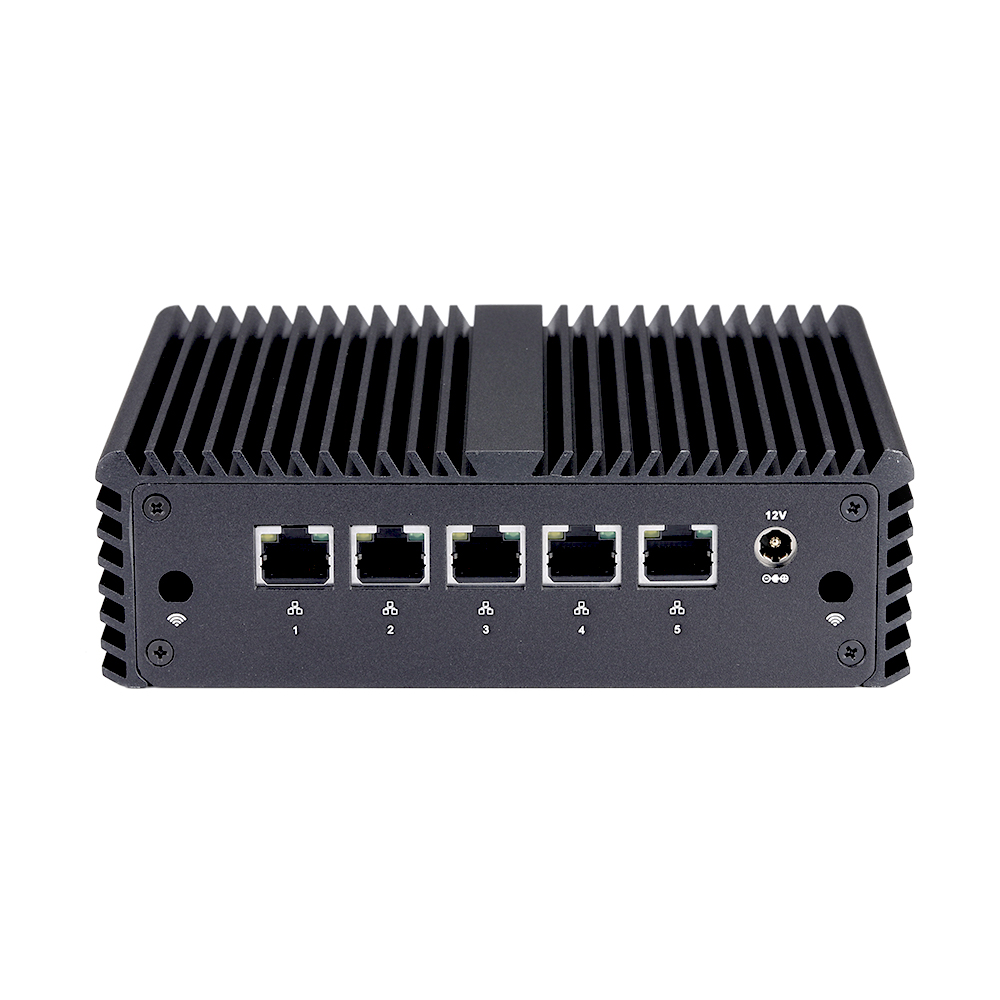

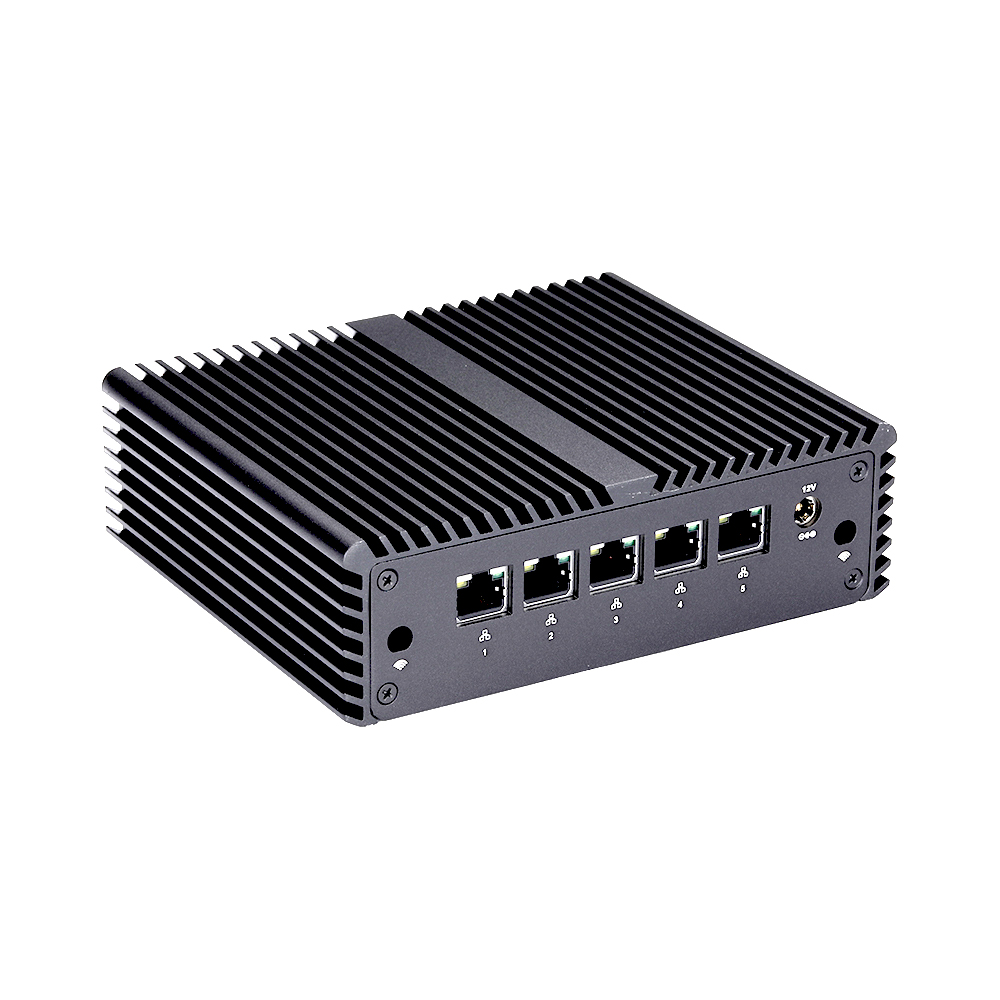

| Rear I/O | |
| Power | 1 × DC Jack |
| LAN | 5 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| LED | 1 × Power LED (Option) |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi (Default Only Support USB Device) |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| VGA | 0 |
| SIM Card Slot | 1 |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 155 × 127 × 48mm |
| Weight | 0.82kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 10, Linux |
In the box
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2Silicone Mat4
- 3VESA Bracket1
- 4Screws for VESA Bracket1
- 5Power Adapter1
- 6AC Power Cord1
- 7Screws for SATA SSD/HDD1
- 8SATA cable for SSD/HDD1Option
- 9Antennas2Option
Models & options
Ordering and Specifications Information
Quick Order Model: Q730G5-S08
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| Q10511G5 | S08 | Gemini Lake | Celeron | J4005 | 2 | 2 | 2.0GHz | 2.7GHz | 4M | Intel UHD Graphics 600 | 10W |
Q720G5 (Q10512G5) | S08 | Gemini Lake | Celeron | N4000 | 2 | 2 | 1.1GHz | 2.6GHz | 4M | Intel UHD Graphics 600 | 6W |
Q730G5 (Q10521G5) | S08 | Gemini Lake | Celeron | J4105 | 4 | 4 | 1.5GHz | 2.5GHz | 4M | Intel UHD Graphics 600 | 10W |
Q740G5 (Q10612G5) | S08 | Gemini Lake Refresh | Celeron | N4020 | 2 | 2 | 1.1GHz | 2.8GHz | 4M | Intel UHD Graphics 600 | 6W |
Q750G5 (Q10621G5) | S08 | Gemini Lake Refresh | Celeron | J4125 | 4 | 4 | 2.0GHz | 2.7GHz | 4M | Intel UHD Graphics 600 | 10W |
Q10511G5S08
- Case
- S08
- Code Name
- Gemini Lake
- Processor Type
- Celeron
- Processor Number
- J4005
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 2.0GHz
- Max Turbo Frequency
- 2.7GHz
- Cache
- 4M
- Processor Graphics
- Intel UHD Graphics 600
- TDP
- 10W
Q720G5
(Q10512G5)
S08
- Case
- S08
- Code Name
- Gemini Lake
- Processor Type
- Celeron
- Processor Number
- N4000
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.1GHz
- Max Turbo Frequency
- 2.6GHz
- Cache
- 4M
- Processor Graphics
- Intel UHD Graphics 600
- TDP
- 6W
Q730G5
(Q10521G5)
S08
- Case
- S08
- Code Name
- Gemini Lake
- Processor Type
- Celeron
- Processor Number
- J4105
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.5GHz
- Max Turbo Frequency
- 2.5GHz
- Cache
- 4M
- Processor Graphics
- Intel UHD Graphics 600
- TDP
- 10W
Q740G5
(Q10612G5)
S08
- Case
- S08
- Code Name
- Gemini Lake Refresh
- Processor Type
- Celeron
- Processor Number
- N4020
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.1GHz
- Max Turbo Frequency
- 2.8GHz
- Cache
- 4M
- Processor Graphics
- Intel UHD Graphics 600
- TDP
- 6W
Q750G5
(Q10621G5)
S08
- Case
- S08
- Code Name
- Gemini Lake Refresh
- Processor Type
- Celeron
- Processor Number
- J4125
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 2.0GHz
- Max Turbo Frequency
- 2.7GHz
- Cache
- 4M
- Processor Graphics
- Intel UHD Graphics 600
- TDP
- 10W
PC Case Options
| Category | SATA Support |
| S07 | - |
| S08 | Yes |
| 1U06 | Yes |
Custom Options
| Category | Description |
| GPIO | 1 |
| USB 2.0 | 2 |
| VGA | 1 |
| Serial Port | 1 × RS-232, RJ-45 |
