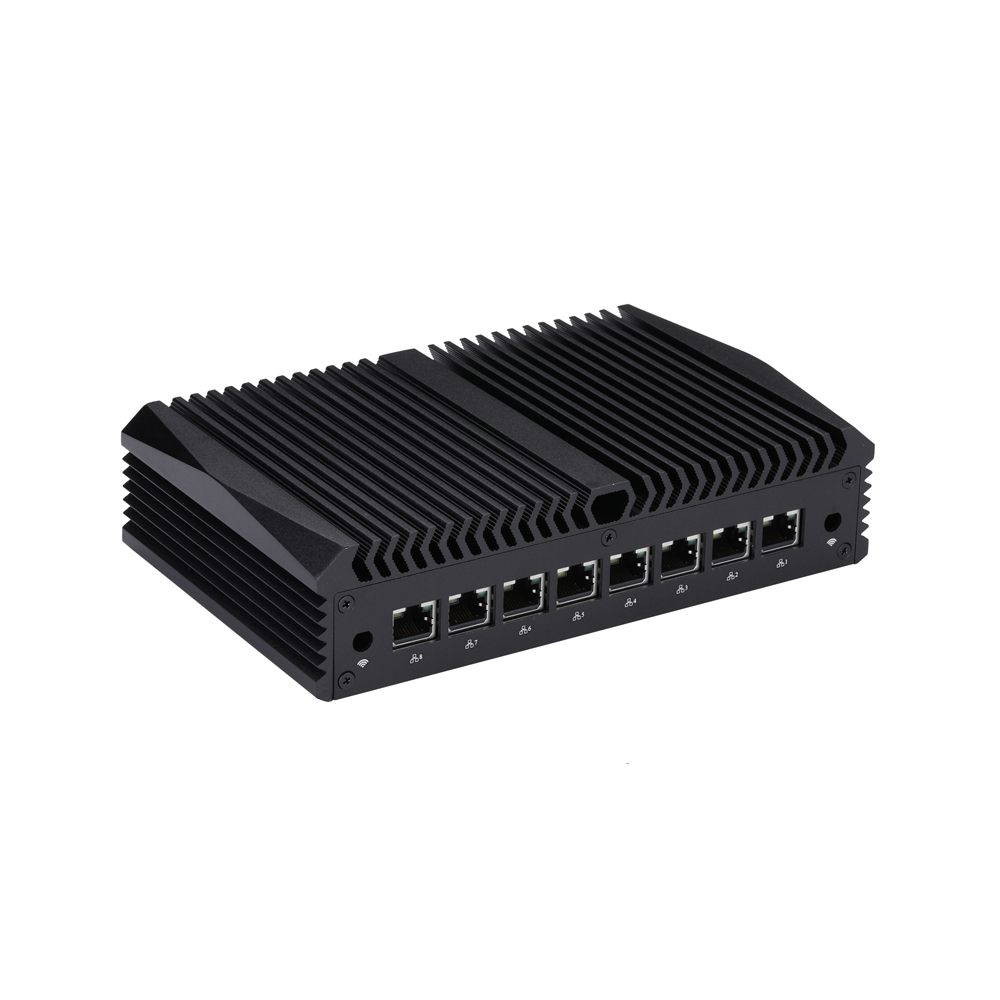

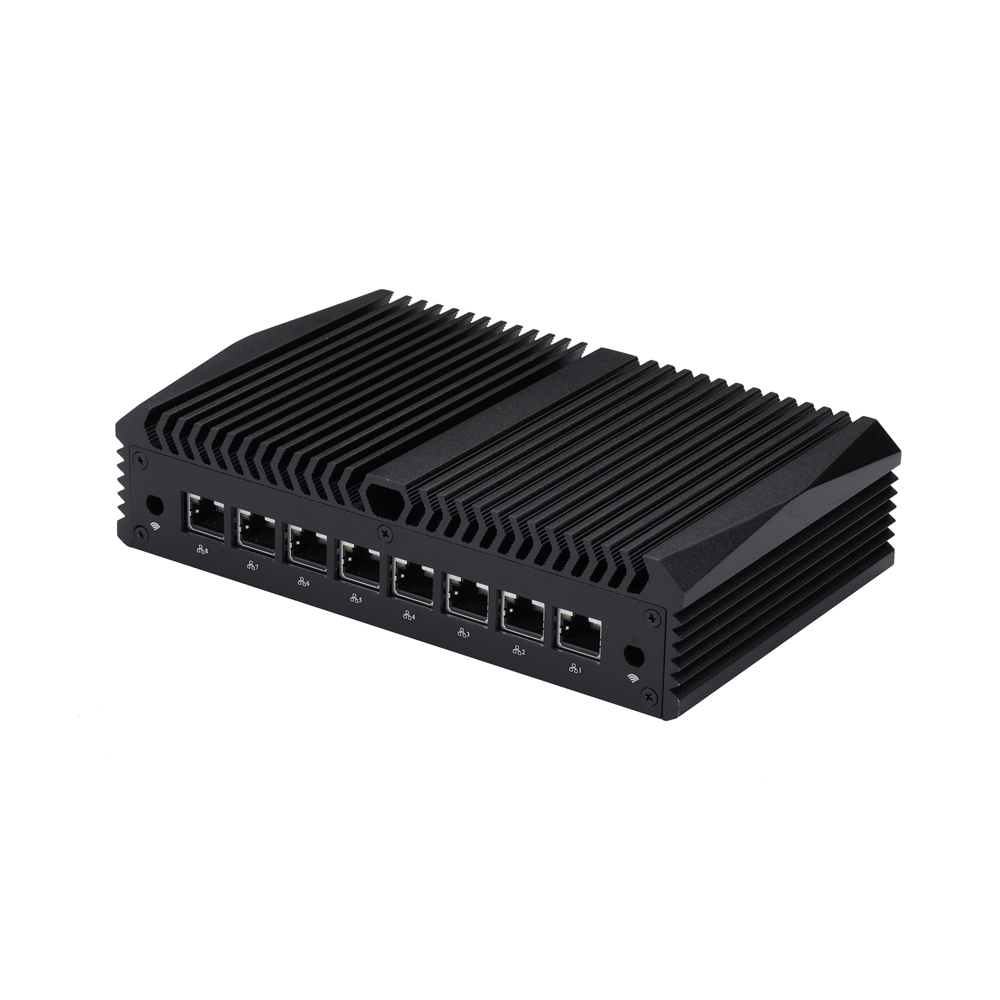

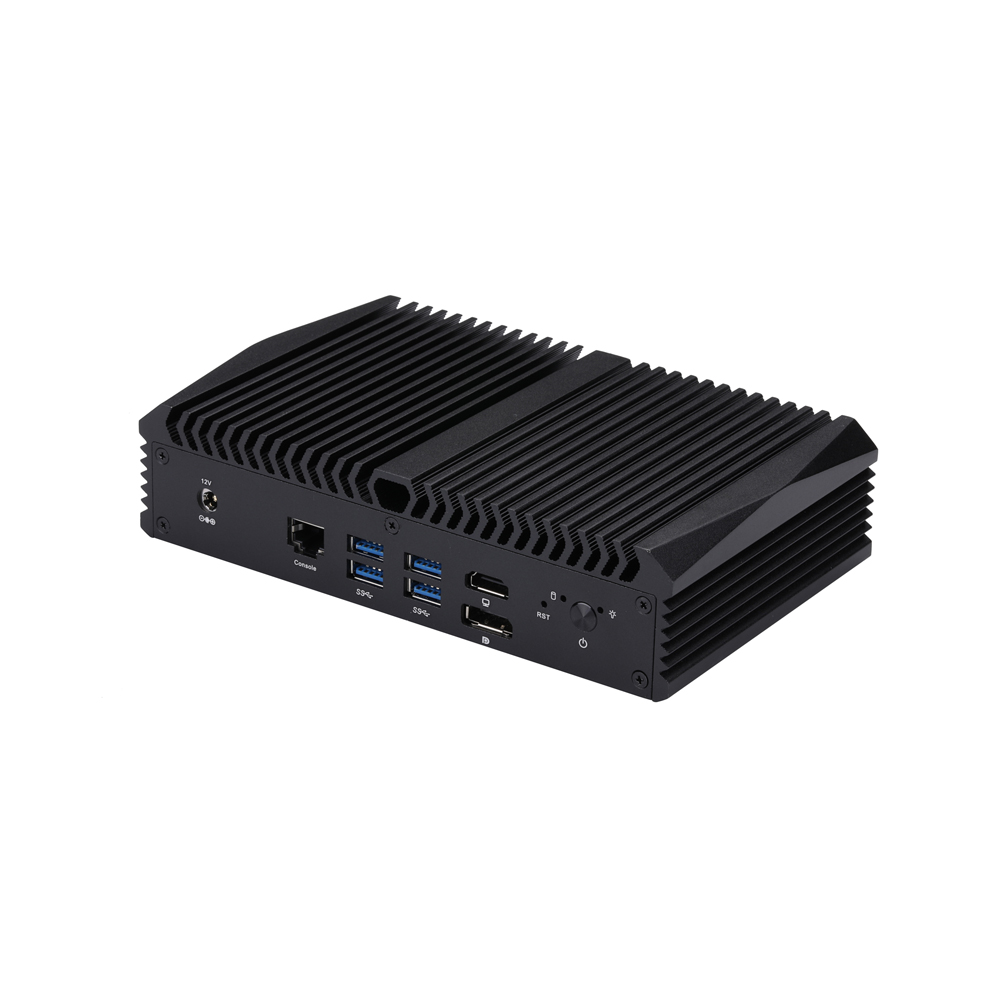

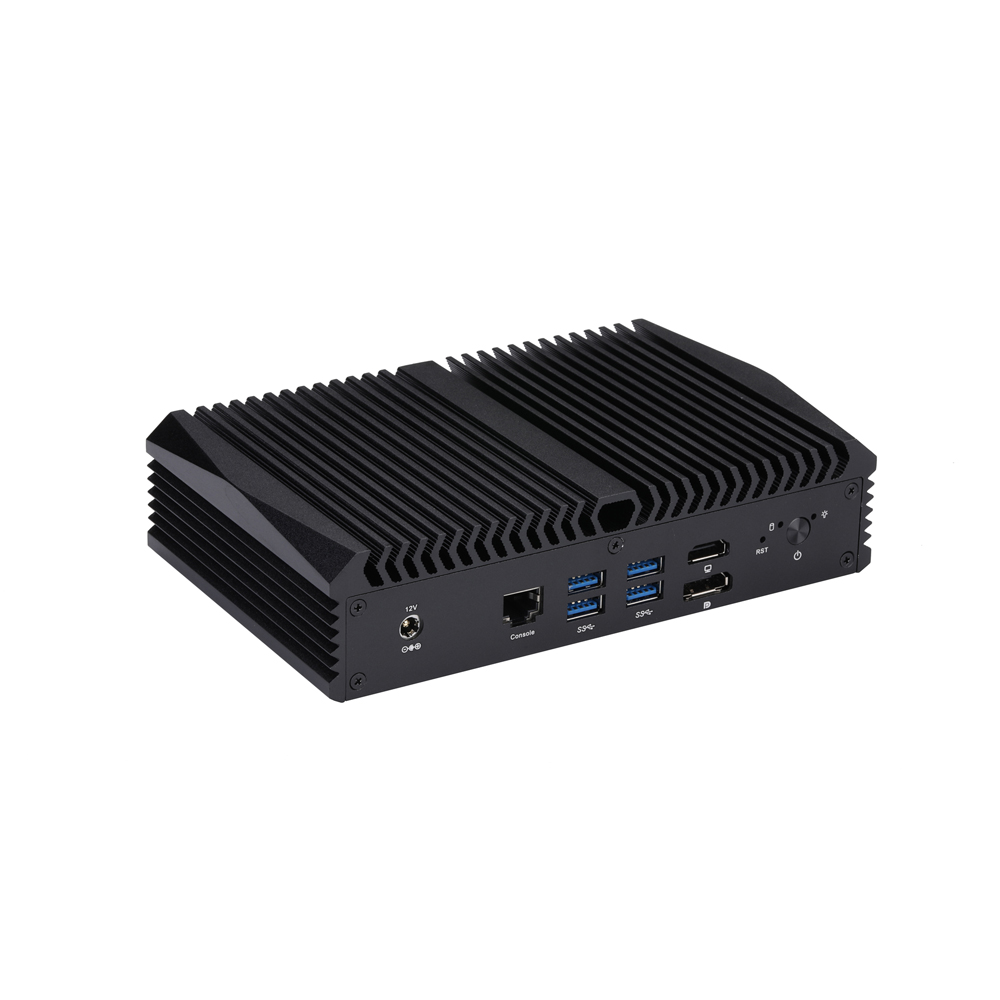

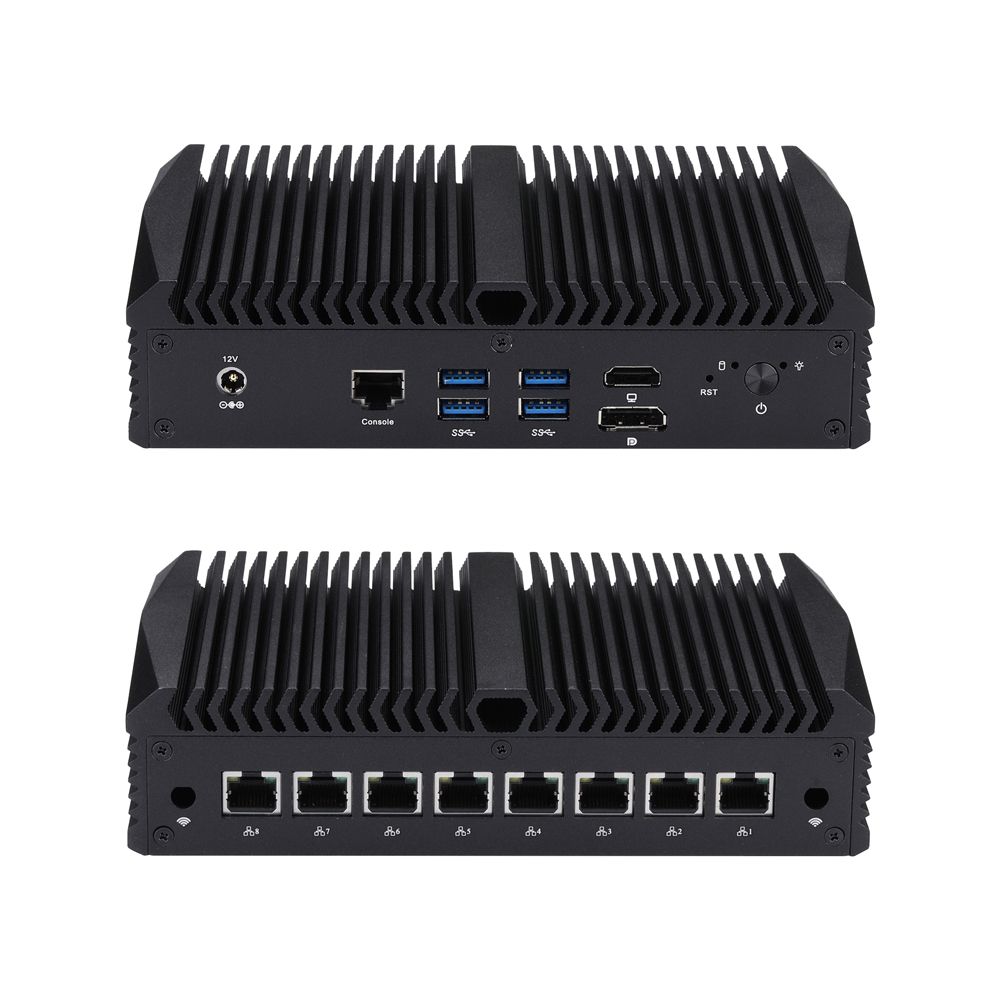

Q30600GER3 is a fanless industrial mini PC with 8 Gigabit LAN ports, supporting Intel® Skylake-U, Kaby Lake-U, and Kaby Lake-R processors. Designed for network appliances, industrial automation, edge computing, IoT gateways, and embedded communication systems. Compact aluminum chassis ensures stable and reliable 24/7 operation.
Intel 6th Skylake-U Processor
Intel 7th Kabylake-U Processor
Intel 8th Kabylake-R-U Processor
1 × Display Port, 1 × HDMI
4 × USB 3.0
1 × mSATA, 1 × Mini PCIe, 1 × M.2, 1 × SATA 3.0
1 × RS-232 (RJ-45)
8 × Realtek Gigabit LAN
| Processor System | |
| CPU | Intel 6thSkylake-U Processor Intel 7thKabylake-U Processor Intel 8thKabylake-R-U Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 8 × Realtek Gigabit LAN |
| Watch Dog | Yes |

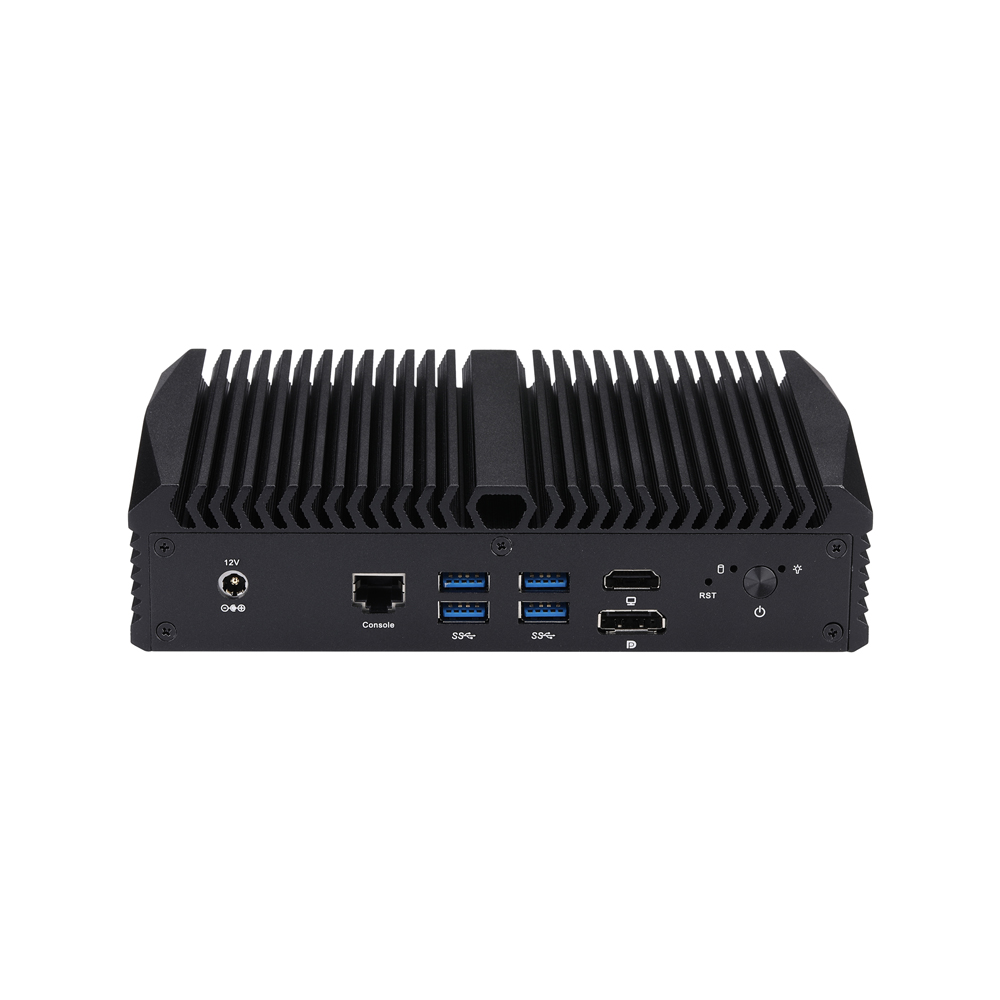

| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 4 × USB 3.0 |
| Power | 1 × DC Jack |
| Video Output | 1 × HDMI, 1 × Display Port |
| Serial Port | 1 × RS-232 Port (RJ-45) |
| Rear I/O | |

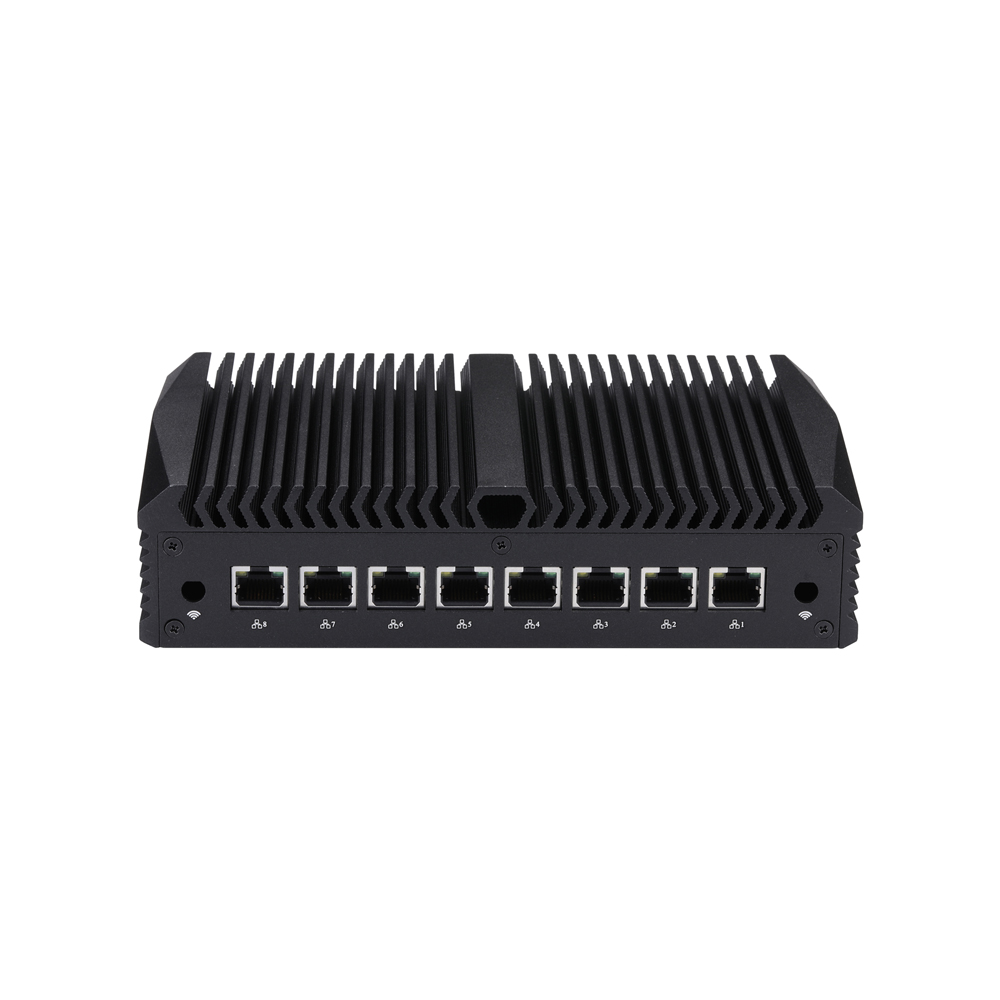

| LAN | 8 × Realtek Gigabit LAN |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| Mini PCIe | 1 × Mini PCIe (Only Support USB Device) Full-length for 4G Half-length for Wi-Fi |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| CMOS Clear Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 0 |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 12V4A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 196 × 122 × 47mm |
| Weight | 1.25kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 285 × 260 × 93mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 10, Linux Windows 7 (only for 6th Gen Skylake) |
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Quick Order Model: Q30831GER3-S13
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| Q30611GER3 | S13 | Skylake | Celeron | 3855U | 2 | 2 | 1.6GHz | / | 2M | Intel HD 510 | 15W |
| Q30612GER3 | S13 | Skylake | Celeron | 3955U | 2 | 2 | 2.0GHz | / | 2M | Intel HD 510 | 15W |
| Q30631GER3 | S13 | Skylake | Core i3 | 6100U | 2 | 4 | 2.3GHz | / | 3M | Intel HD 520 | 15W |
| Q30651GER3 | S13 | Skylake | Core i5 | 6200U | 2 | 4 | 2.3GHz | 2.8GHz | 3M | Intel HD 520 | 15W |
| Q30671GER3 | S13 | Skylake | Core i7 | 6500U | 2 | 4 | 2.5GHz | 3.1GHz | 4M | Intel HD 520 | 15W |
| Q30711GER3 | S13 | Kaby Lake | Celeron | 3865U | 2 | 2 | 1.8GHz | / | 2M | Intel HD 610 | 15W |
| Q30712GER3 | S13 | Kaby Lake | Celeron | 3965U | 2 | 2 | 2.2GHz | / | 2M | Intel HD 610 | 15W |
| Q30731GER3 | S13 | Kaby Lake | Core i3 | 7100U | 2 | 4 | 2.4GHz | / | 3M | Intel HD 620 | 15W |
| Q30751GER3 | S13 | Kaby Lake | Core i5 | 7200U | 2 | 4 | 2.5GHz | 3.1GHz | 3M | Intel HD 620 | 15W |
| Q30771GER3 | S13 | Kaby Lake | Core i7 | 7500U | 2 | 4 | 2.7GHz | 3.5GHz | 4M | Intel HD 620 | 15W |
| Q30811GER3 | S13 | Kaby Lake R | Celeron | 3867U | 2 | 2 | 1.8GHz | / | 2M | Intel HD 610 | 15W |
| Q30821GER3 | S13 | Kaby Lake R | Pentium | 4417U | 2 | 2 | 2.3GHz | / | 2M | Intel HD 610 | 15W |
| Q30831GER3 | S13 | Kaby Lake R | Core i3 | 8130U | 2 | 4 | 2.0GHz | 3.40GHz | 4M | Intel UHD 620 | 15W |
| Q30851GER3 | S13 | Kaby Lake R | Core i5 | 8250U | 4 | 8 | 1.6GHz | 3.4GHz | 6M | Intel UHD 620 | 15W |
| Q30871GER3 | S13 | Kaby Lake R | Core i7 | 8550U | 4 | 8 | 1.8GHz | 4.0GHz | 8M | Intel UHD 620 | 15W |
| Category | SATA Support |
| S13 | Yes |
| S13 | Yes |
| 1U07 | Yes |
| Category | Description |
| USB 2.0 | 2 |
| Serial Port | 5 × RS-232, DB9 |
| GPIO | 1 |
| VGA | 1 |
| RS-485 | 2 |
