Mini PC Q70600G6 S09 Series

Qotom Q70600G6 Series mini PC features Intel 6th–9th Gen CPUs, 6 Intel Gigabit LAN ports, dual DDR4, HDMI, SATA, and M.2 slots—ideal for firewall, router, and network applications.

Total of Network Interfaces: 6
SFP(+): None
10G RJ45: None
2.5G RJ45: 6 × Intel I211-AT/I210-AT Gigabit LAN
1G RJ45: None
Serial Ports: None

Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

Intel 6th Skylake-S Processor
Intel 7th Kabylake-S Processor
Intel 8th Coffee Lake-S Processor
Intel 9th Coffee Lake-R-S Processor
2 × DDR4 2133 MHz SO-DIMM Up to 32GB
1 × HDMI, 2 × USB 3.0, 2 × M.2, 1 × SATA 3.0
6 × Intel I211-AT/I210-AT Gigabit LAN

Specifications

Processor System
CPU	Intel 6thSkylake-S Processor Intel 7thKabylake-S Processor Intel 8thCoffee Lake-S Processor Intel 9thCoffee Lake-R-S Processor
CPU TDP	By CPU
Memory	2 × DDR4 SO-DIMM Socket (Up to 64G, 2133MHz)
Chipset	Intel B150
Graphics	By CPU
LAN Chipset	6 × Intel I211-AT/I210-AT Gigabit LAN
Audio	No
Watch Dog	Yes

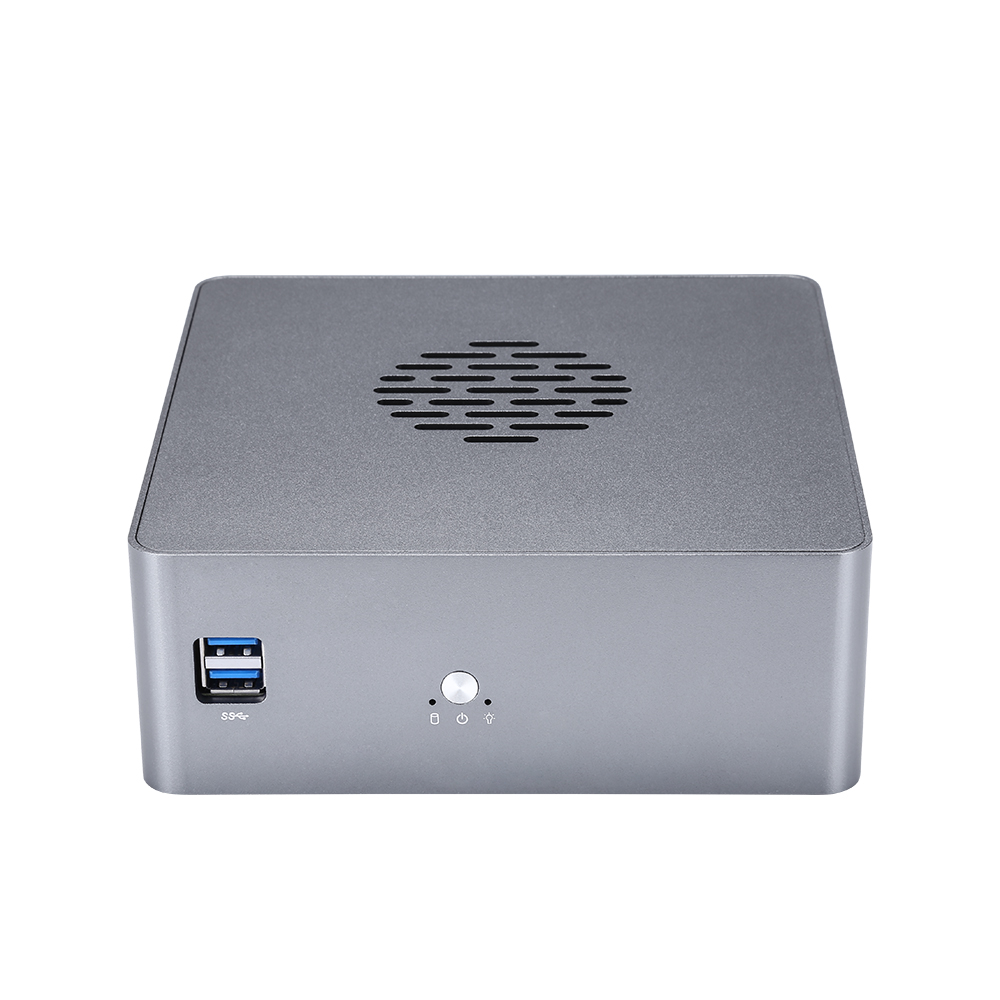

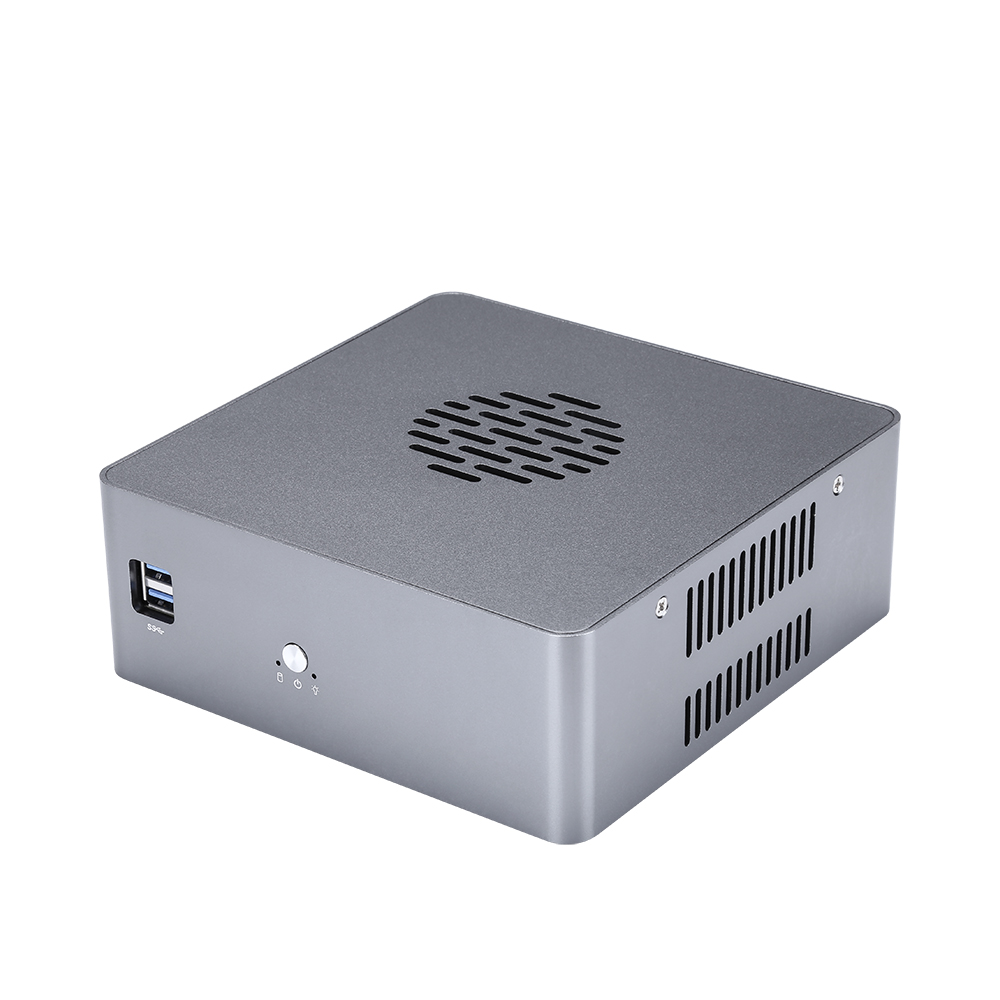

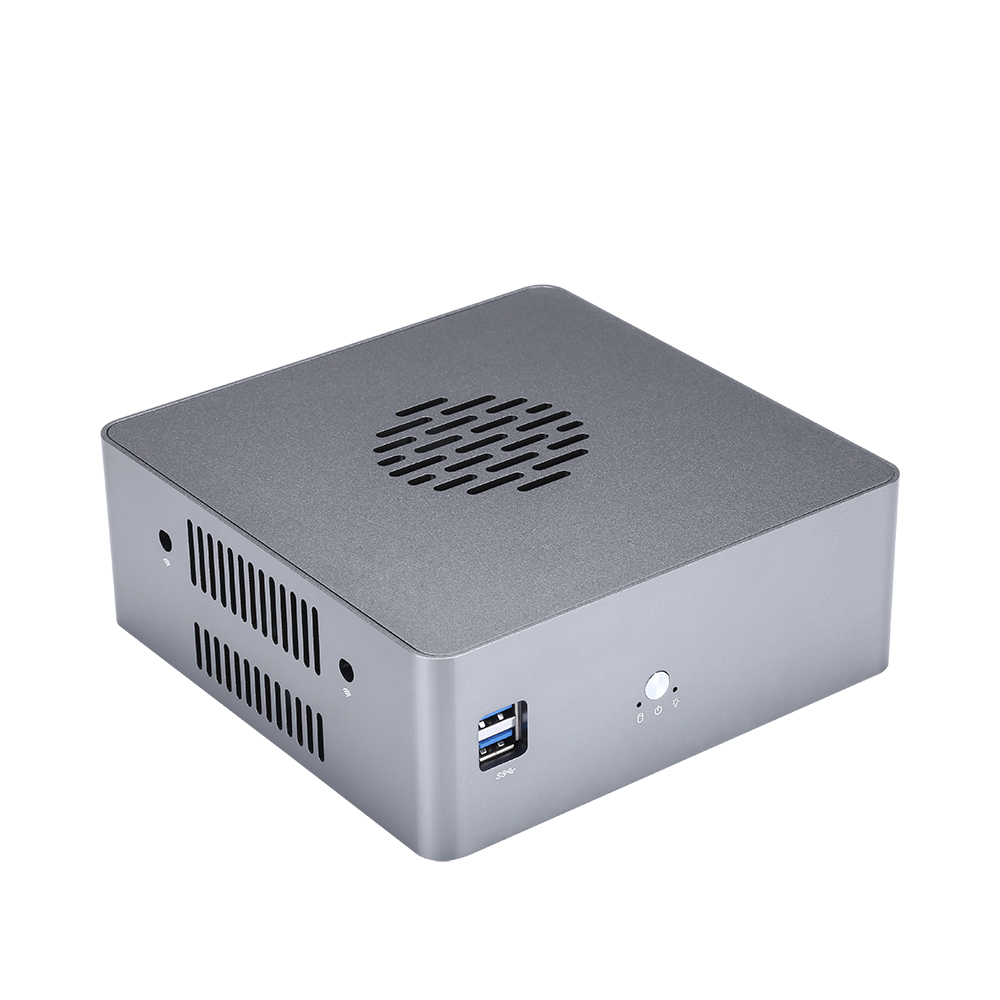

Front I/O
Power Button	1
USB	2 × USB 3.0
LED	1 × Power LED, 1 × HDD LED
Serial Port	0

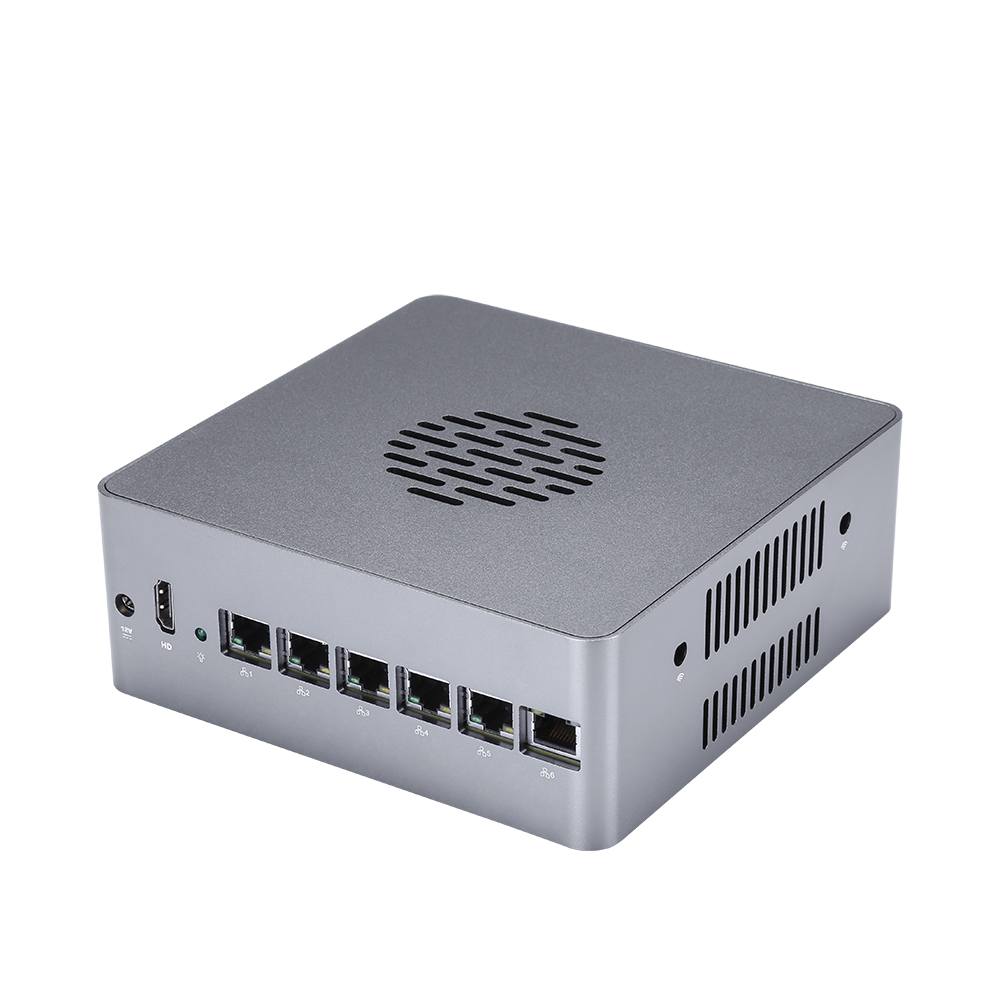

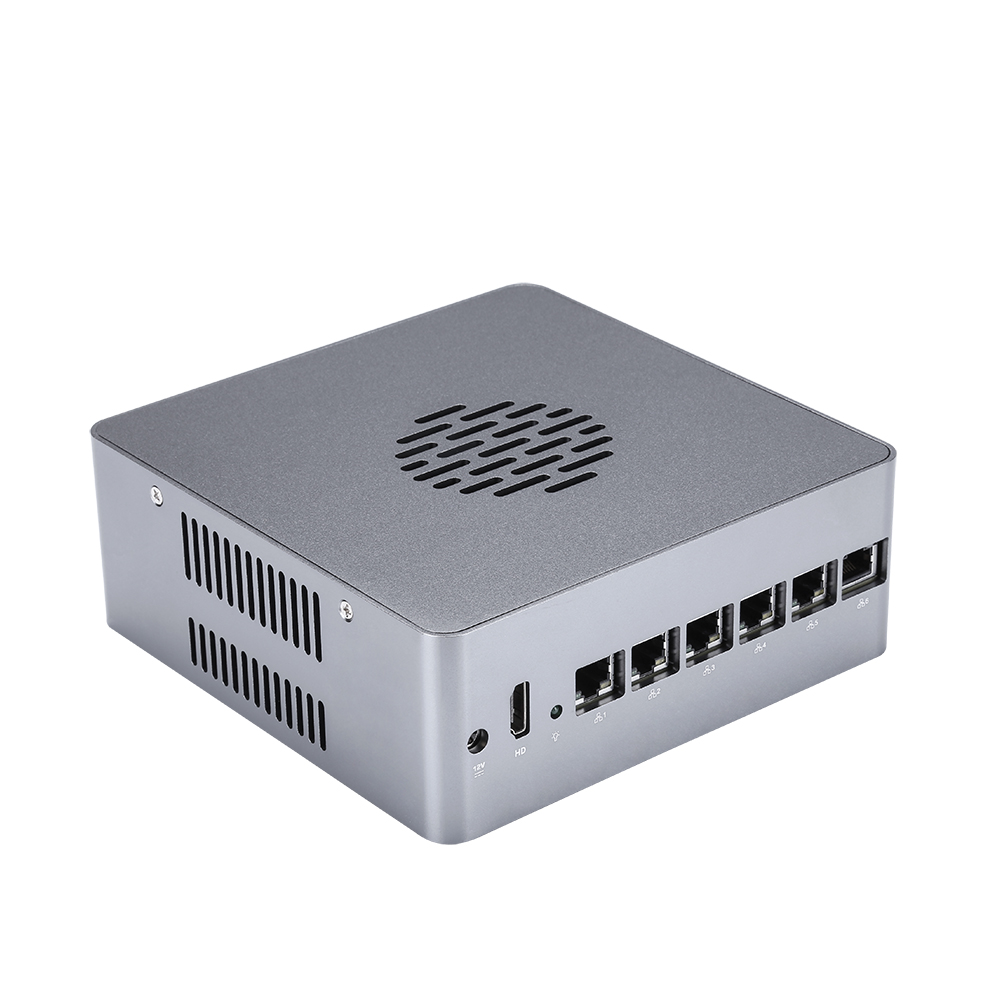

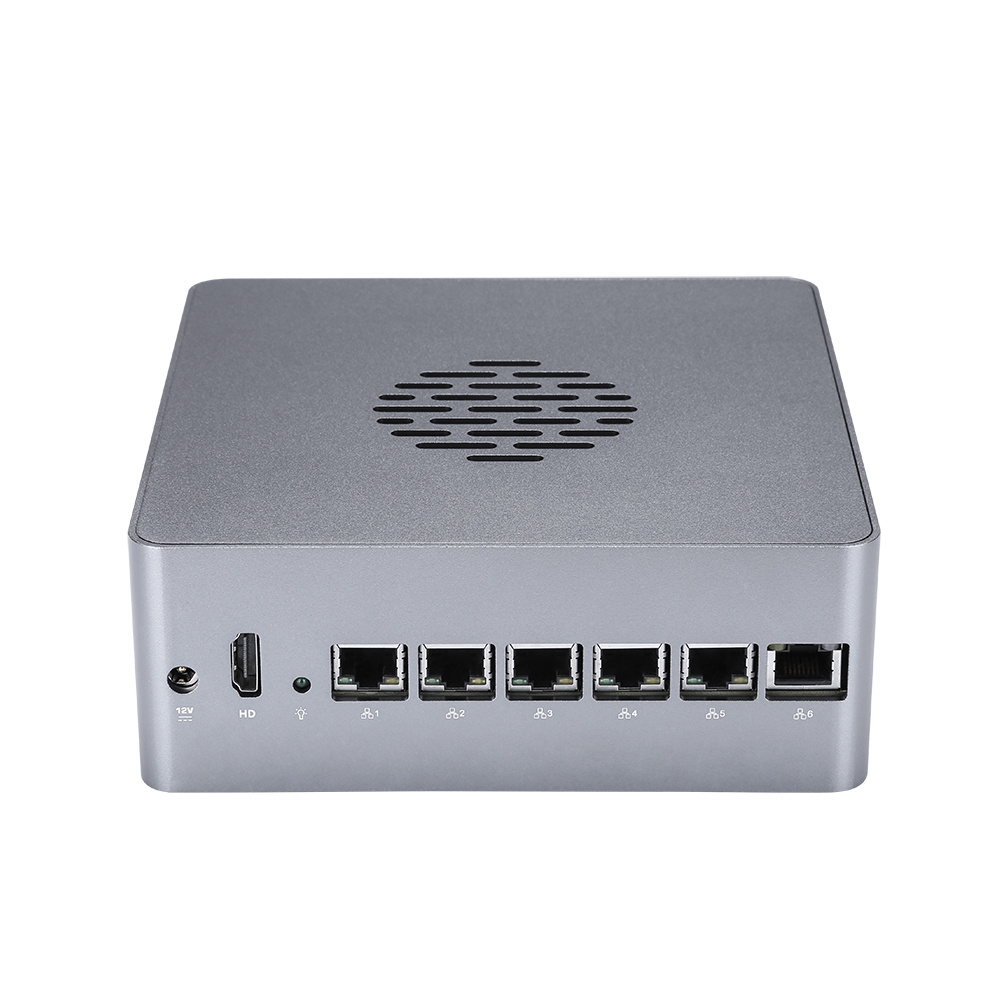

Rear I/O
Power	1 × DC Jack
Video Output	1 × HDMI
LED	1 × Power LED
LAN	6 × Intel I211-AT/I210-AT Gigabit LAN
Storage
Type	1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280)
Expansion
M.2	1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230)
Mini PCIe	1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO	1, 2 × 5Pin, Pitch 2.0mm
RS-485	0
Power Requirement
Power Adapter	12V5A/12V7A
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	164 × 164 × 61mm
Weight	1.21kg
Mounting	No
Packaging Dimension	285 × 260 × 93mm
Kensington Lock	No
Cooling Mode	Fan
OS Support
OS	Windows 10, Linux Windows 7 (Only for 6th Gen Skylake)

In the box

Packing List

NO.	Category	Quantity	Remark
1	Mini PC	1
2	Silicone Mat	4
3	VESA Bracket	1
4	Screws for VESA Bracket	1
5	Power Adapter	1
6	AC Power Cord	1
7	Screws for SATA SSD/HDD	1
8	SATA cable for SSD/HDD	1	Option
9	Antennas	2	Option

ItemQuantity

1
Mini PC
1
2
Silicone Mat
4
3
VESA Bracket
1
4
Screws for VESA Bracket
1
5
Power Adapter
1
6
AC Power Cord
1
7
Screws for SATA SSD/HDD
1
8
SATA cable for SSD/HDD
Option
1
9
Antennas
Option
2

Models & options

Ordering and Specifications Information

Quick Order Model: Q650G6-S09

Ordering Code	Case	Code Name	Processor Type	Processor Number	# of Cores	# of Threads	Base Frequency	Max Turbo Frequency	Cache	Processor Graphics	TDP
Q610G6 (Q70611G6)	S09	Skylake	Celeron	G3900	2	2	2.8GHz	/	2M	Intel HD 510	51W
Q620G6 (Q70621G6)	S09	Skylake	Pentium	G4500	2	2	3.5GHz	/	3M	Intel HD 530	51W
Q630G6 (Q70631G6)	S09	Skylake	Core i3	6100	2	4	3.7GHz	/	3M	Intel HD 530	51W
Q650G6 (Q70651G6)	S09	Skylake	Core i5	6400	4	4	2.7GHz	3.3GHz	6M	Intel HD 530	65W
Q615G6 (Q70711G6)	S09	Kaby Lake	Celeron	G3930	2	2	2.9GHz	/	2M	Intel HD 610	51W
Q625G6 (Q70721G6)	S09	Kaby Lake	Pentium	G4560	2	4	3.5GHz	/	3M	Intel HD 610	54W
Q635G6 (Q70731G6)	S09	Kaby Lake	Core i3	7100	2	4	3.9GHz	/	3M	Intel HD 630	51W
Q655G6 (Q70751G6)	S09	Kaby Lake	Core i5	7500	4	4	3.4GHz	3.8GHz	6M	Intel HD 630	65W
Q70811G6	S09	Coffee Lake	Celeron	G4900	2	2	3.1GHz	/	2M	Intel UHD Graphics 610	54W
Q70821G6	S09	Coffee Lake	Pentium	G5400	2	4	3.7GHz	/	4M	Intel UHD Graphics 610	58W
Q70831G6	S09	Coffee Lake	Core i3	8100	4	4	3.6GHz	/	6M	Intel UHD Graphics 630	65W
Q70851G6	S09	Coffee Lake	Core i5	8400	6	6	2.9GHz	4.1GHz	9M	Intel UHD Graphics 630	65W
Q70911G6	S09	Coffee Lake	Celeron	G4930	2	2	3.2GHz	/	2M	Intel UHD Graphics 610	54W
Q70921G6	S09	Coffee Lake	Pentium	G5420	2	4	3.8GHz	/	4M	Intel UHD Graphics 610	54W
Q70931G6	S09	Coffee Lake	Core i3	9100	4	4	3.6GHz	4.2GHz	6M	Intel UHD Graphics 630	65W
Q70951G6	S09	Coffee Lake	Core i5	9400	6	6	2.9GHz	4.1GHz	9M	Intel UHD Graphics 630	65W

Q610G6
(Q70611G6)
S09

Case: S09
Code Name: Skylake
Processor Type: Celeron
Processor Number: G3900
# of Cores: 2
# of Threads: 2
Base Frequency: 2.8GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel HD 510
TDP: 51W

Q620G6
(Q70621G6)
S09

Case: S09
Code Name: Skylake
Processor Type: Pentium
Processor Number: G4500
# of Cores: 2
# of Threads: 2
Base Frequency: 3.5GHz
Max Turbo Frequency: /
Cache: 3M
Processor Graphics: Intel HD 530
TDP: 51W

Q630G6
(Q70631G6)
S09

Case: S09
Code Name: Skylake
Processor Type: Core i3
Processor Number: 6100
# of Cores: 2
# of Threads: 4
Base Frequency: 3.7GHz
Max Turbo Frequency: /
Cache: 3M
Processor Graphics: Intel HD 530
TDP: 51W

Q650G6
(Q70651G6)
S09

Case: S09
Code Name: Skylake
Processor Type: Core i5
Processor Number: 6400
# of Cores: 4
# of Threads: 4
Base Frequency: 2.7GHz
Max Turbo Frequency: 3.3GHz
Cache: 6M
Processor Graphics: Intel HD 530
TDP: 65W

Q615G6
(Q70711G6)
S09

Case: S09
Code Name: Kaby Lake
Processor Type: Celeron
Processor Number: G3930
# of Cores: 2
# of Threads: 2
Base Frequency: 2.9GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel HD 610
TDP: 51W

Q625G6
(Q70721G6)
S09

Case: S09
Code Name: Kaby Lake
Processor Type: Pentium
Processor Number: G4560
# of Cores: 2
# of Threads: 4
Base Frequency: 3.5GHz
Max Turbo Frequency: /
Cache: 3M
Processor Graphics: Intel HD 610
TDP: 54W

Q635G6
(Q70731G6)
S09

Case: S09
Code Name: Kaby Lake
Processor Type: Core i3
Processor Number: 7100
# of Cores: 2
# of Threads: 4
Base Frequency: 3.9GHz
Max Turbo Frequency: /
Cache: 3M
Processor Graphics: Intel HD 630
TDP: 51W

Q655G6
(Q70751G6)
S09

Case: S09
Code Name: Kaby Lake
Processor Type: Core i5
Processor Number: 7500
# of Cores: 4
# of Threads: 4
Base Frequency: 3.4GHz
Max Turbo Frequency: 3.8GHz
Cache: 6M
Processor Graphics: Intel HD 630
TDP: 65W

Q70811G6S09

Case: S09
Code Name: Coffee Lake
Processor Type: Celeron
Processor Number: G4900
# of Cores: 2
# of Threads: 2
Base Frequency: 3.1GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics 610
TDP: 54W

Q70821G6S09

Case: S09
Code Name: Coffee Lake
Processor Type: Pentium
Processor Number: G5400
# of Cores: 2
# of Threads: 4
Base Frequency: 3.7GHz
Max Turbo Frequency: /
Cache: 4M
Processor Graphics: Intel UHD Graphics 610
TDP: 58W

Q70831G6S09

Case: S09
Code Name: Coffee Lake
Processor Type: Core i3
Processor Number: 8100
# of Cores: 4
# of Threads: 4
Base Frequency: 3.6GHz
Max Turbo Frequency: /
Cache: 6M
Processor Graphics: Intel UHD Graphics 630
TDP: 65W

Q70851G6S09

Case: S09
Code Name: Coffee Lake
Processor Type: Core i5
Processor Number: 8400
# of Cores: 6
# of Threads: 6
Base Frequency: 2.9GHz
Max Turbo Frequency: 4.1GHz
Cache: 9M
Processor Graphics: Intel UHD Graphics 630
TDP: 65W

Q70911G6S09

Case: S09
Code Name: Coffee Lake
Processor Type: Celeron
Processor Number: G4930
# of Cores: 2
# of Threads: 2
Base Frequency: 3.2GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics 610
TDP: 54W

Q70921G6S09

Case: S09
Code Name: Coffee Lake
Processor Type: Pentium
Processor Number: G5420
# of Cores: 2
# of Threads: 4
Base Frequency: 3.8GHz
Max Turbo Frequency: /
Cache: 4M
Processor Graphics: Intel UHD Graphics 610
TDP: 54W

Q70931G6S09

Case: S09
Code Name: Coffee Lake
Processor Type: Core i3
Processor Number: 9100
# of Cores: 4
# of Threads: 4
Base Frequency: 3.6GHz
Max Turbo Frequency: 4.2GHz
Cache: 6M
Processor Graphics: Intel UHD Graphics 630
TDP: 65W

Q70951G6S09

Case: S09
Code Name: Coffee Lake
Processor Type: Core i5
Processor Number: 9400
# of Cores: 6
# of Threads: 6
Base Frequency: 2.9GHz
Max Turbo Frequency: 4.1GHz
Cache: 9M
Processor Graphics: Intel UHD Graphics 630
TDP: 65W

Custom Options

Category	Description
USB 2.0	8
GPIO	1
RS-485	2
VGA	1
Audio	2
TPM 2.0	1
