AI Mini PC Q312000AI S81 Series
Q31200AI AI mini PC with Intel 12th/13th CPUs, MXM GPU support, dual 2.5G LAN, 4× display outputs, and high-speed storage for AI computing, edge processing, and advanced graphics tasks.
Main Features
Intel 12th Alder Lake–P Processor
Intel 13th Raptor Lake–P Processor
2 × Display Port, 2 × HDMI
5 × USB 3.0, 2 × Type C (USB 3.0)
3 × M.2, 1 × SATA 3.0
2 × Intel I225-V/I226-V 2.5 Gigabit LAN
Support Expansion of MXM Graphics Card

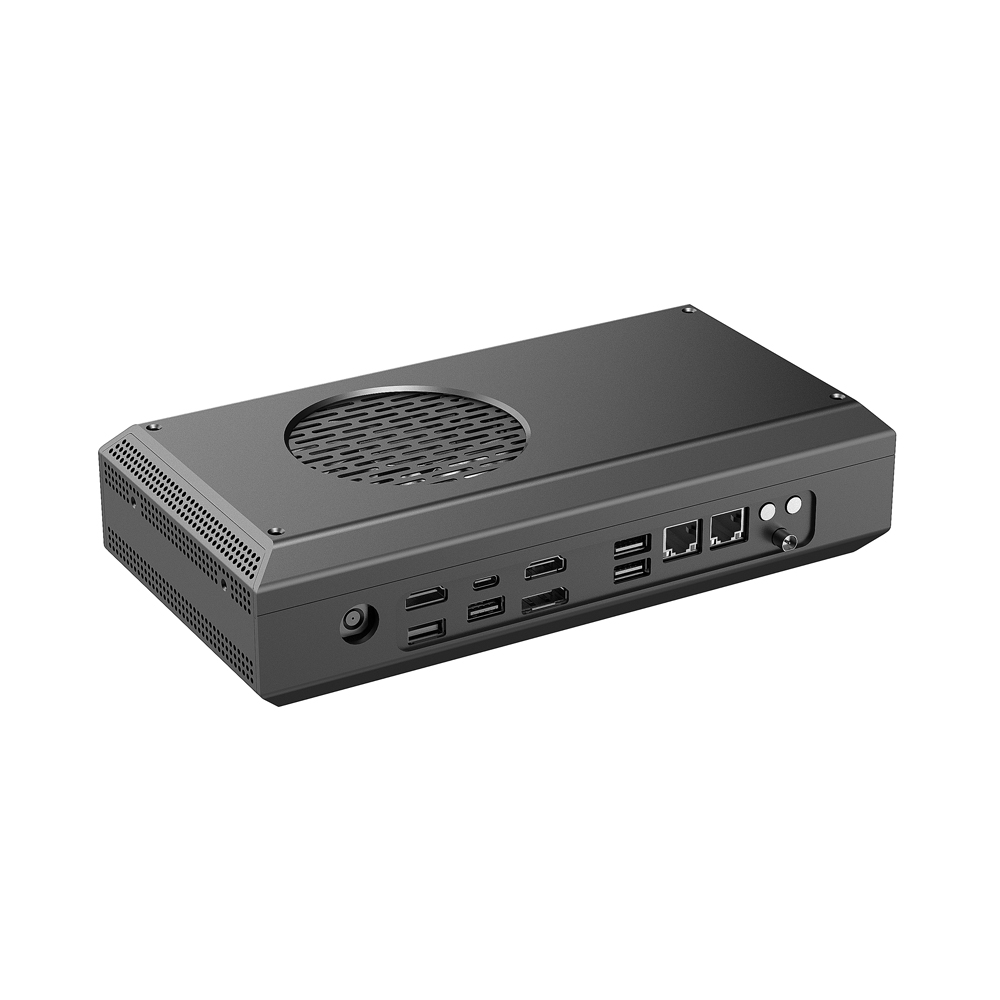

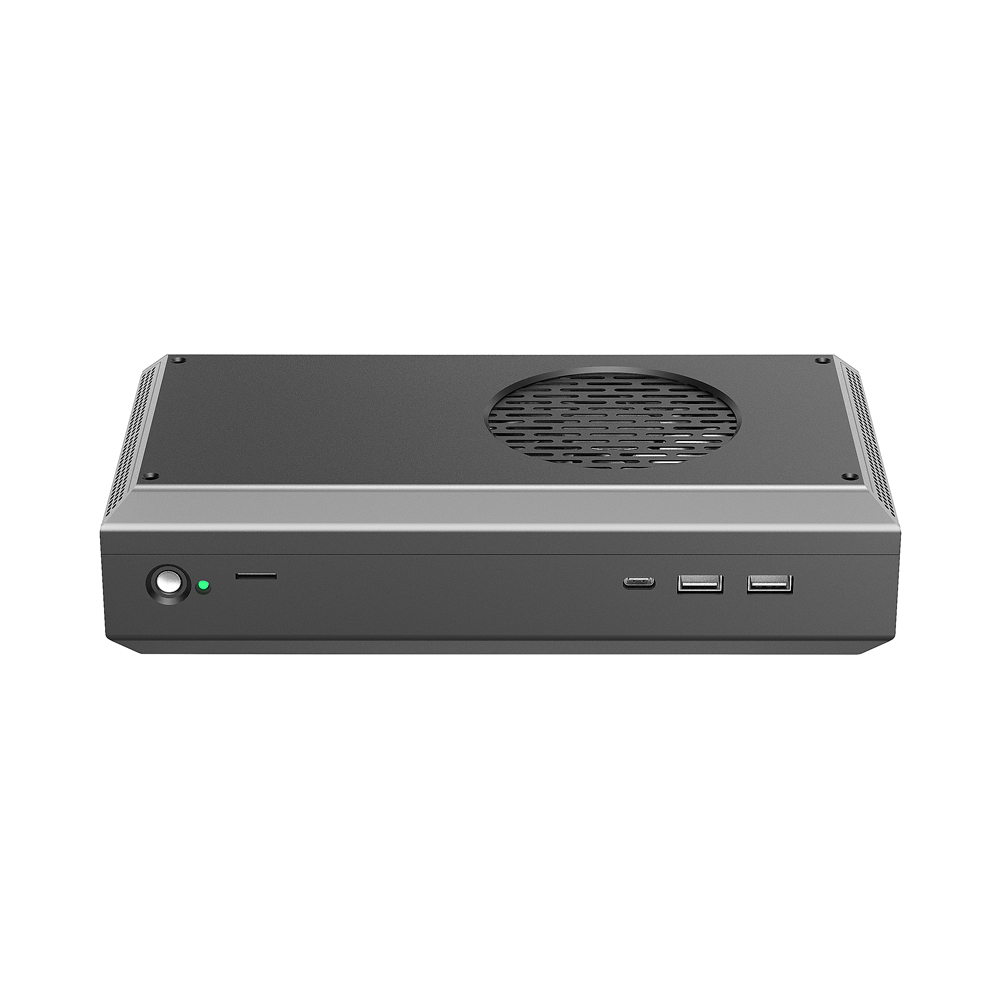

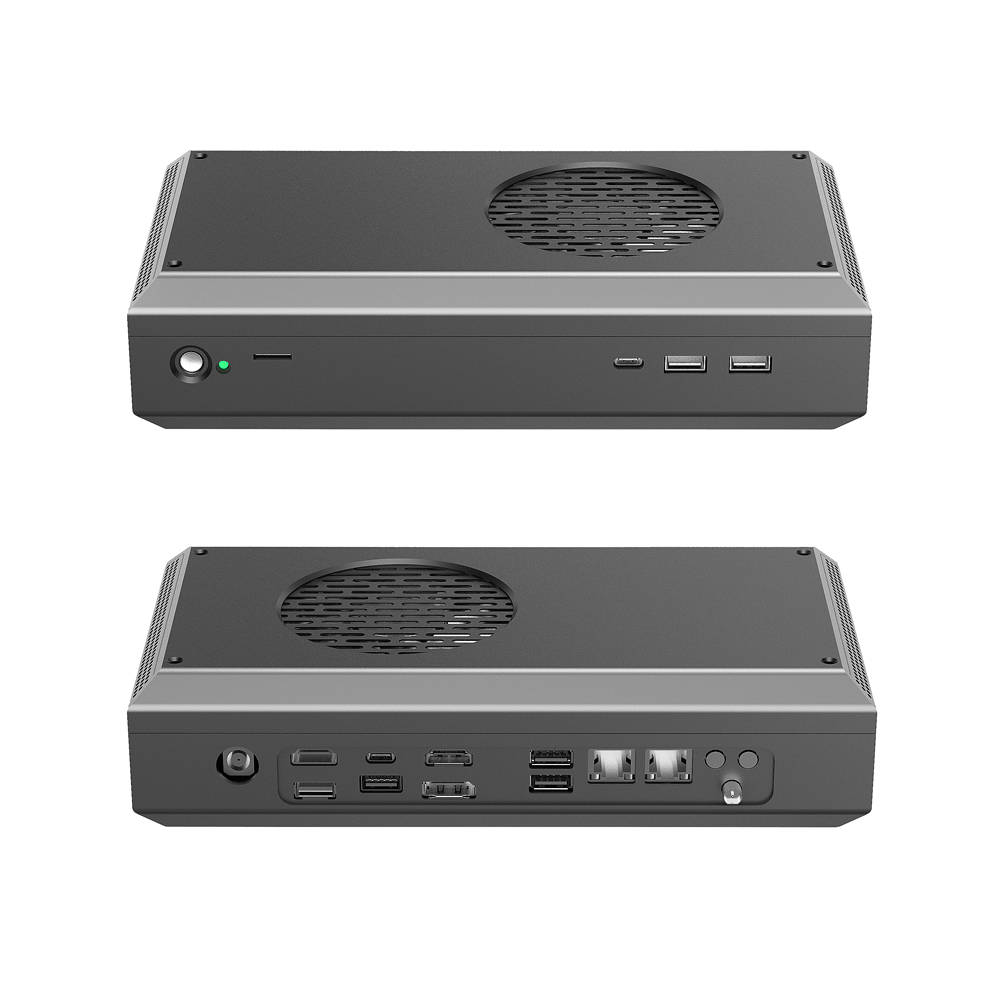

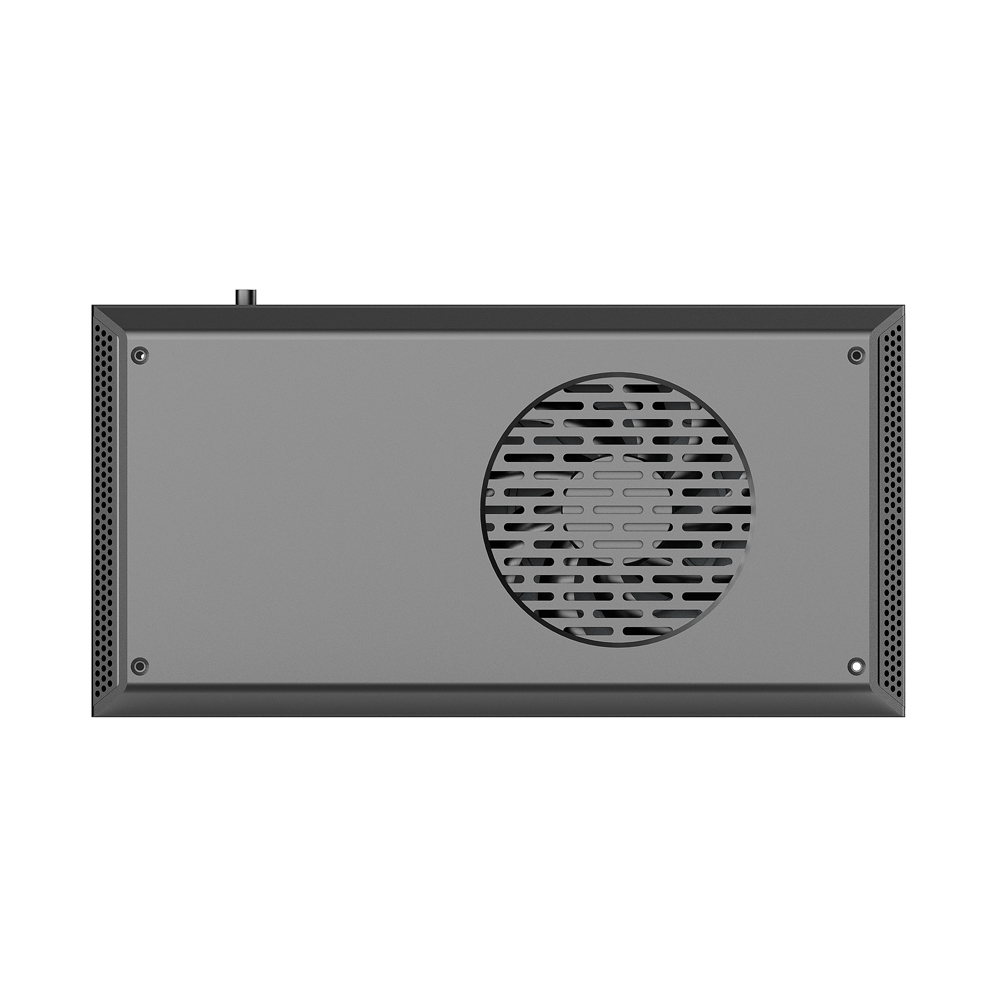

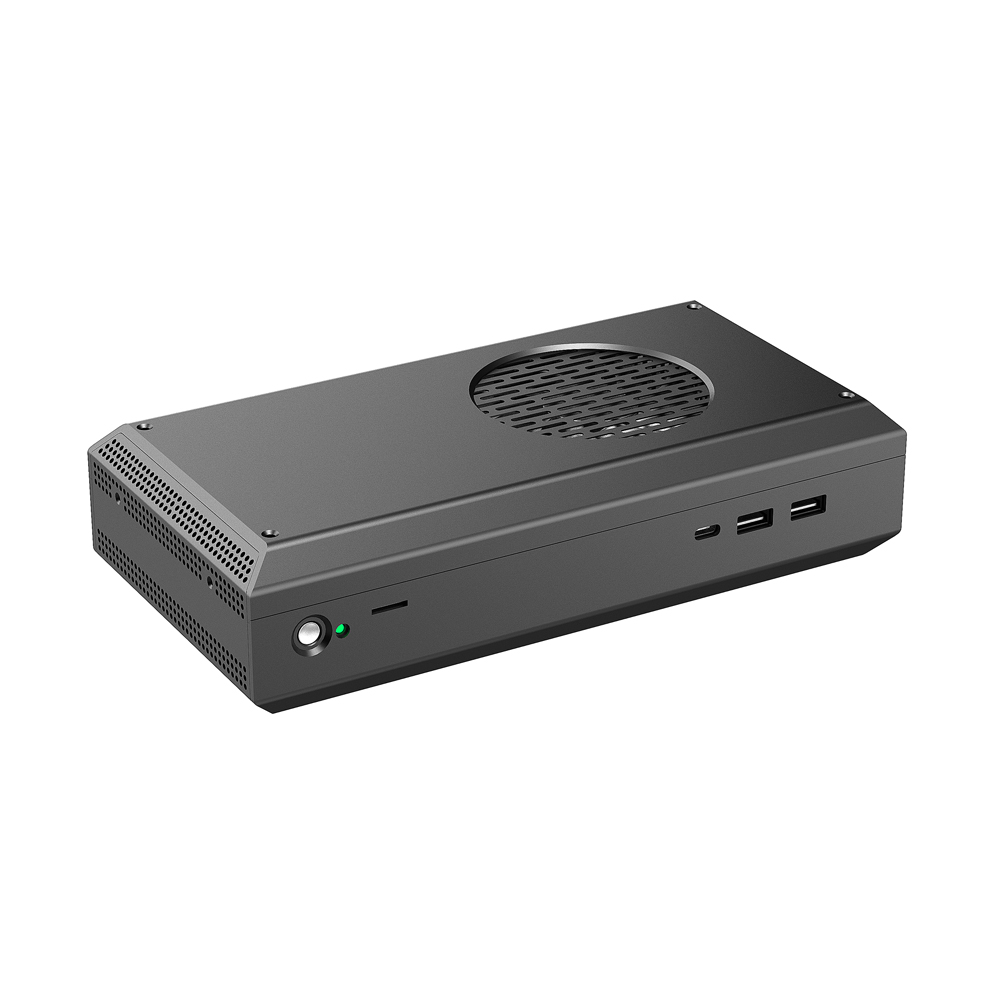

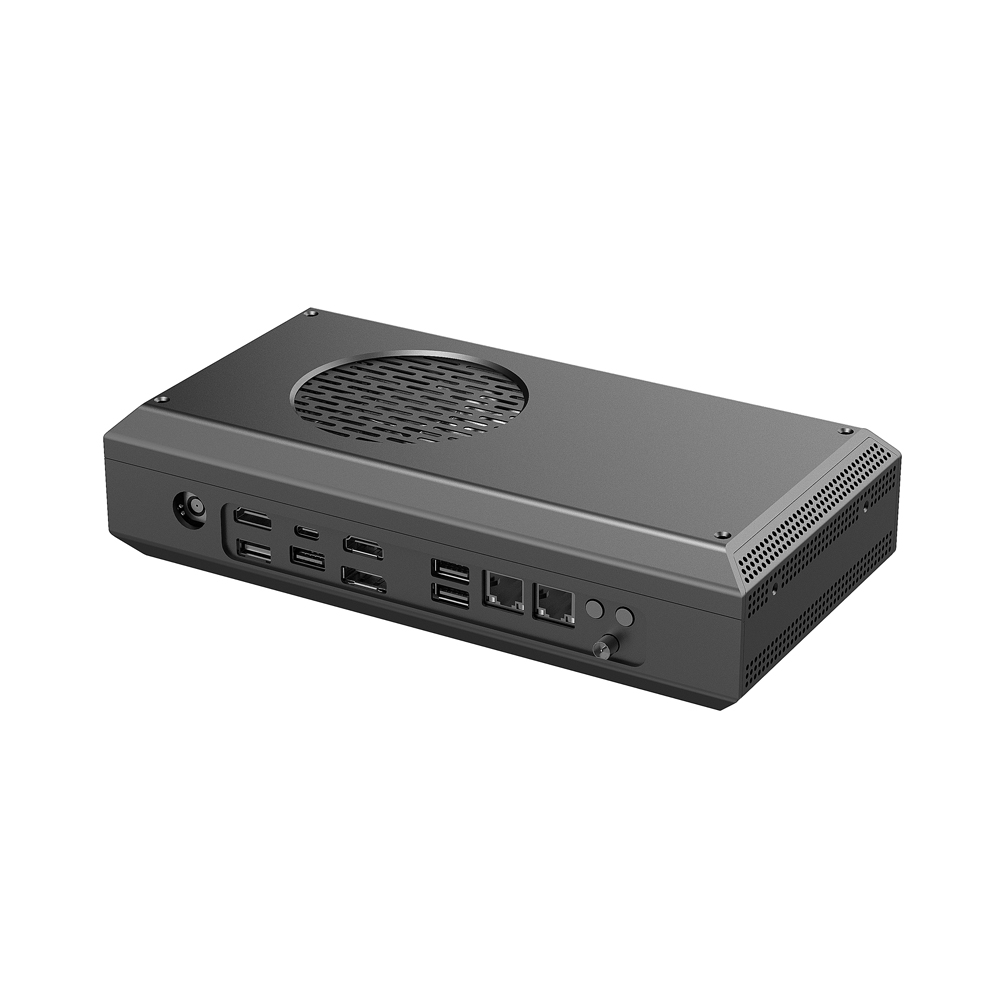

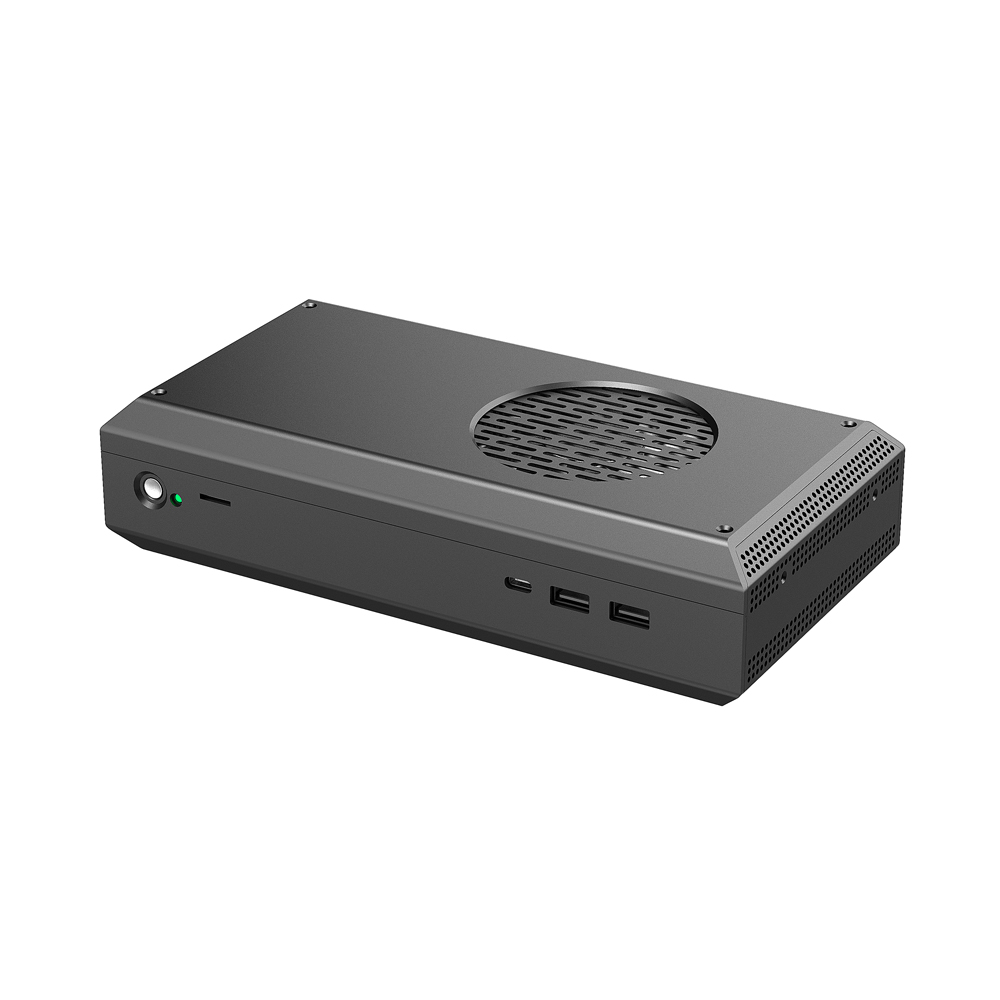

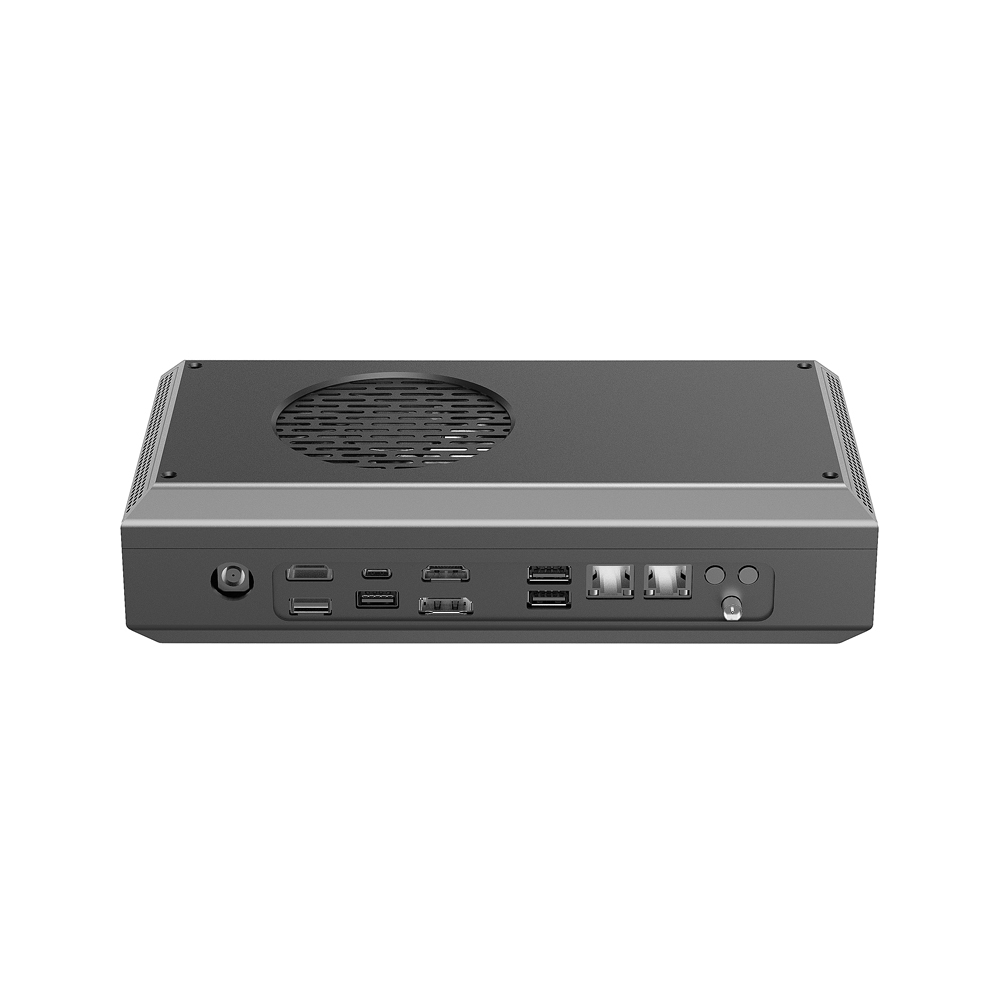

⚠️ These images are renderings.
This product is still in the production plan and has not yet launched.
If you have suggestions or light customization needs,
please leave us a message—we’d love to make this product better
for you and for more users.
| Processor System | |
| CPU | Intel 12th Alder Lake–P Processor Intel 13th Raptor Lake–P Processor |
| CPU TDP | By CPU |
| Memory | 16GB, Integrated (Up to 32G) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 2 × USB 3.0 |
| Type C | 1 × Type C (USB 3.0) |
| TF Card Slot | 1 |
| Rear I/O | |
| Power | 1 × DC Jack |
| USB | 5 × USB 3.0, 2 × USB 2.0 |
| Video Output | 2 × Display Port, 2 × HDMI |
| LAN | 2 × Intel I226-V 2.5 Gigabit LAN |
| Type C | 1 × Type C (USB 3.0) |
| Audio | 1 (Mic-in, Line-out) |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 2 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) |
| Expansion | |
| M.2 | 2 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| AutoStart Jumper | 0 |
| CMOS Clear Jumper | 0 |
| GPIO | 0 |
| RS-485 | 0 |
| DC-in | 0 |
| Power Requirement | |
| Power Adapter | 19V4.74A |
| DC Jack | Under design |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Under design |
| Dimension | Under design |
| Weight | Under design |
| Mounting | Under design |
| Packaging Dimension | Under design |
| Kensington Lock | Under design |
| Cooling Mode | Fan |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Ordering and Specifications Information
Quick Order Model: Q51251AI
| Ordering Code | Q31211AI | Q31221AI | Q31231AI | Q31251AI | Q31271AI |
| Code Name | Alder Lake U | Alder Lake U | Alder Lake U | Alder Lake U | Alder Lake U |
| Processor Type | Celeron | Pentium | Core i3 | Core i5 | Core i7 |
| Processor Number | 7305 | 8505 | 1215U | 1235U | 1255U |
| Total Cores | 5 | 5 | 6 | 10 | 10 |
| # of Performance-cores | 1 | 1 | 2 | 2 | 2 |
| # of Efficient-cores | 4 | 4 | 4 | 8 | 8 |
| # of Threads | 5 | 6 | 8 | 12 | 12 |
| Max Turbo Frequency | - | 4.40 GHz | 4.40 GHz | 4.40 GHz | 4.70 GHz |
| Performance-core Base Frequency | 1.10 GHz | 1.20 GHz | 1.20 GHz | 1.30 GHz | 1.70 GHz |
| Performance-core Max Turbo Frequency | - | 4.40 GHz | 4.40 GHz | 4.40 GHz | 4.70 GHz |
| Efficient-core Base Frequency | 0.9 GHz | 0.9 GHz | 0.9 GHz | 0.9 GHz | 1.20 GHz |
| Efficient-core Max Turbo Frequency | - | 3.30 GHz | 3.30 GHz | 3.30 GHz | 3.50 GHz |
| Cache | 8M | 8M | 10M | 12M | 12M |
| Processor Graphics | Intel UHD Graphics | Intel UHD Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible |
| TDP | 15-55W | 15-55W | 15-55W | 15-55W | 15-55W |
| Ordering Code | Q41231AI | Q41251AI | Q41271AI | ||
| Code Name | Alder Lake P | Alder Lake P | Alder Lake P | ||
| Processor Type | Core i3 | Core i5 | Core i7 | ||
| Processor Number | 1220P | 1240P | 1260P | ||
| Total Cores | 10 | 12 | 12 | ||
| # of Performance-cores | 2 | 4 | 4 | ||
| # of Efficient-cores | 8 | 8 | 8 | ||
| # of Threads | 12 | 16 | 16 | ||
| Max Turbo Frequency | 4.40 GHz | 4.40 GHz | 4.70 GHz | ||
| Performance-core Base Frequency | 1.50 GHz | 1.70 GHz | 2.10 GHz | ||
| Performance-core Max Turbo Frequency | 4.40 GHz | 4.40 GHz | 4.70 GHz | ||
| Efficient-core Base Frequency | 1.10 GHz | 1.20 GHz | 1.50 GHz | ||
| Efficient-core Max Turbo Frequency | 3.30 GHz | 3.30 GHz | 3.40 GHz | ||
| Cache | 12M | 12M | 18M | ||
| Processor Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible | ||
| TDP | 28-64W | 28-64W | 28-64W | ||
| Ordering Code | Q51251AI | Q51271AI | Q51291AI | ||
| Code Name | Alder Lake H | Alder Lake H | Alder Lake H | ||
| Processor Type | Core i5 | Core i7 | Core i9 | ||
| Processor Number | 12450H | 12650H | 12900H | ||
| Total Cores | 8 | 10 | 14 | ||
| # of Performance-cores | 4 | 6 | 6 | ||
| # of Efficient-cores | 4 | 4 | 8 | ||
| # of Threads | 12 | 16 | 20 | ||
| Max Turbo Frequency | 4.40 GHz | 4.70 GHz | 5.00 GHz | ||
| Performance-core Base Frequency | 2.00 GHz | 2.30 GHz | 2.50 GHz | ||
| Performance-core Max Turbo Frequency | 4.40 GHz | 4.70 GHz | 5.00 GHz | ||
| Efficient-core Base Frequency | 1.50 GHz | 1.70 GHz | 1.80 GHz | ||
| Efficient-core Max Turbo Frequency | 3.30 GHz | 3.50 GHz | 3.80 GHz | ||
| Cache | 12M | 24M | 24M | ||
| Processor Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible | ||
| TDP | 45-95W | 45-115W | 45-115W |
