Intel 12th Alder Lake–P Processor
Intel 13th Raptor Lake–P Processor
1 × Display Port, 1 × HDMI
2 × USB 3.0
2 × M.2, 1 × SATA 3.0
1 × RS-232 (RJ-45)
10 × Intel I226-V 2.5 Gigabit LAN
| Processor System | |
| CPU | Intel 12th Alder Lake–P Processor Intel 13th Raptor Lake–P Processor |
| CPU TDP | By CPU |
| Memory | 2 × DDR4 SO-DIMM Socket (Up to 64G, 2133/2400MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 10 × Intel I226-V 2.5 Gigabit LAN |
| Watch Dog | Yes |

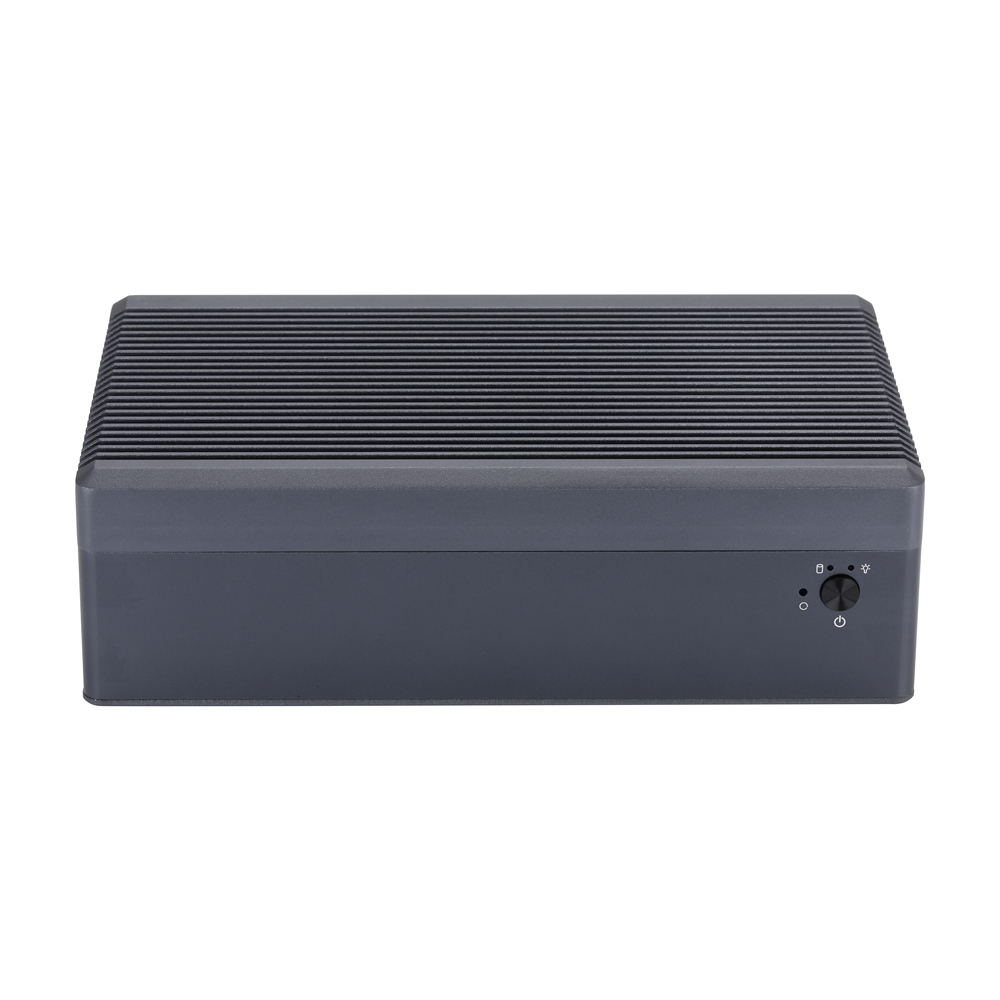

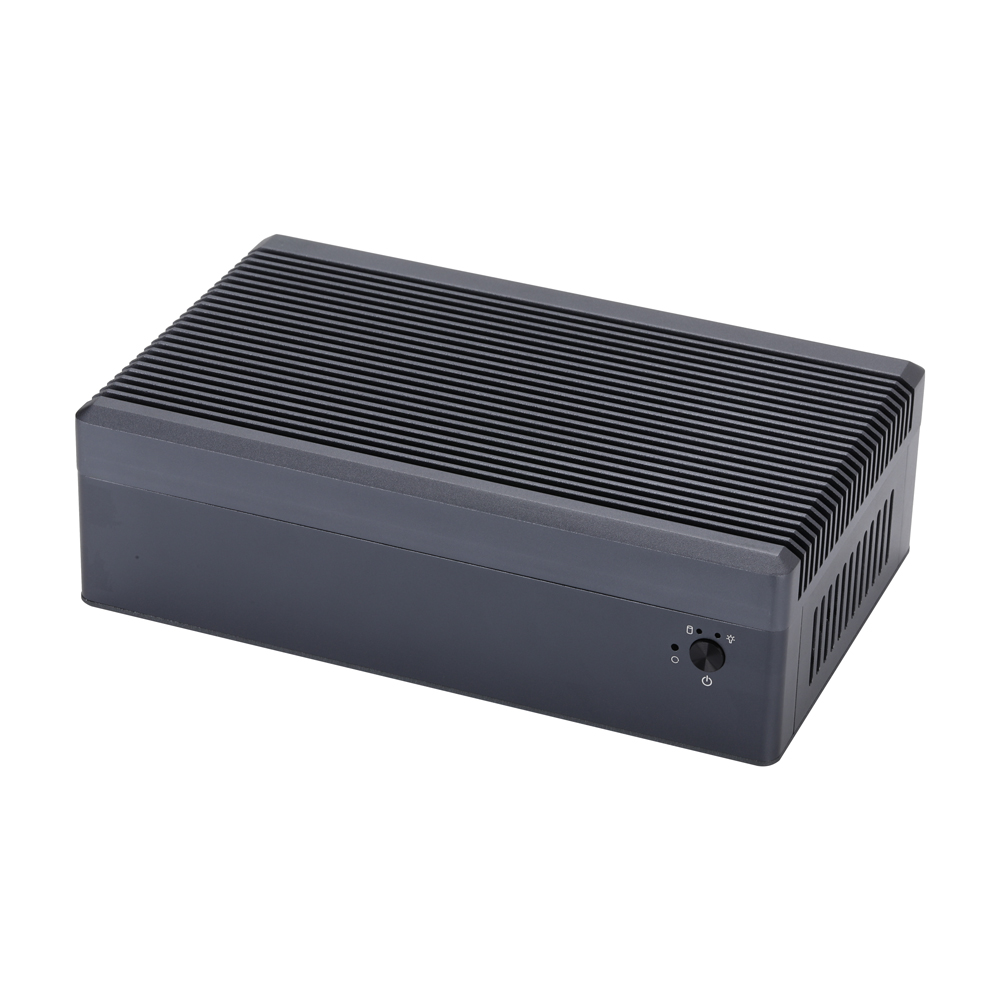

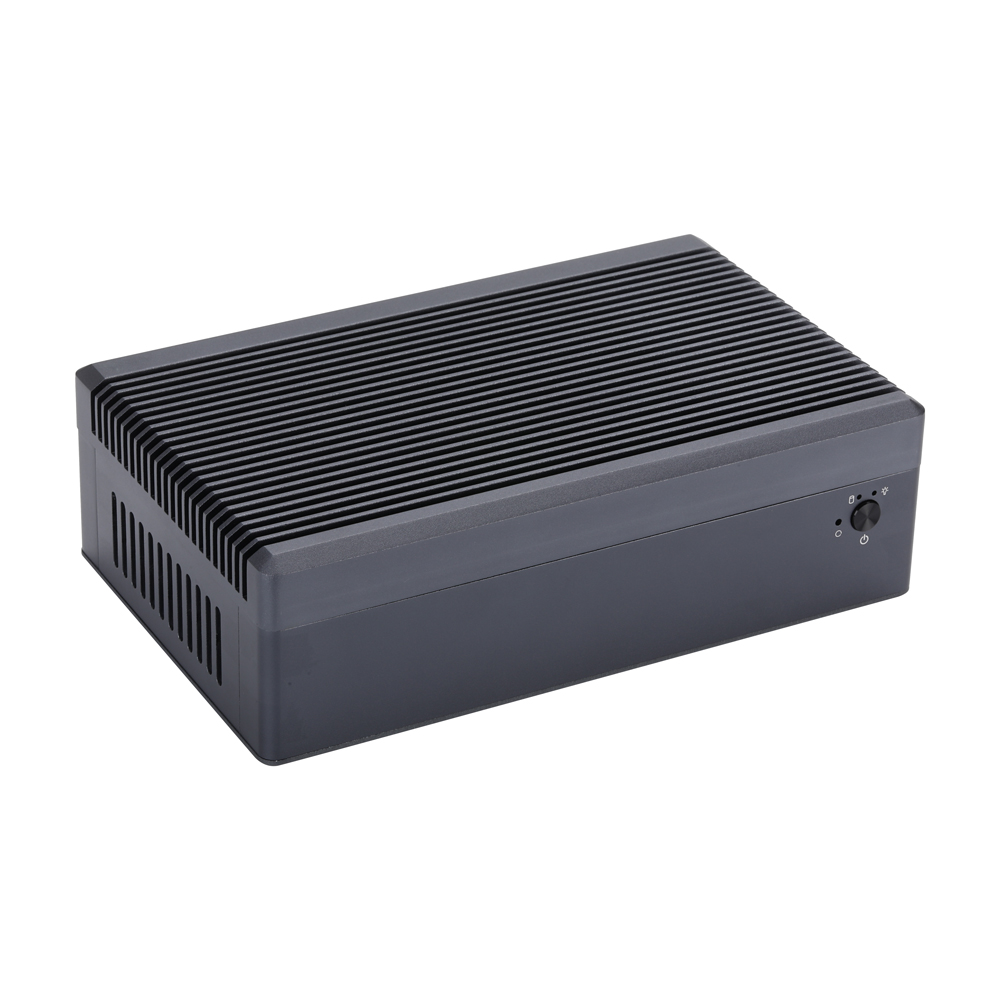

| Front I/O | |
| Power Button | 1 × Power Button, 1 × CMOS Clear Button |
| LED | 1 × Power LED, 1 × HDD LED |

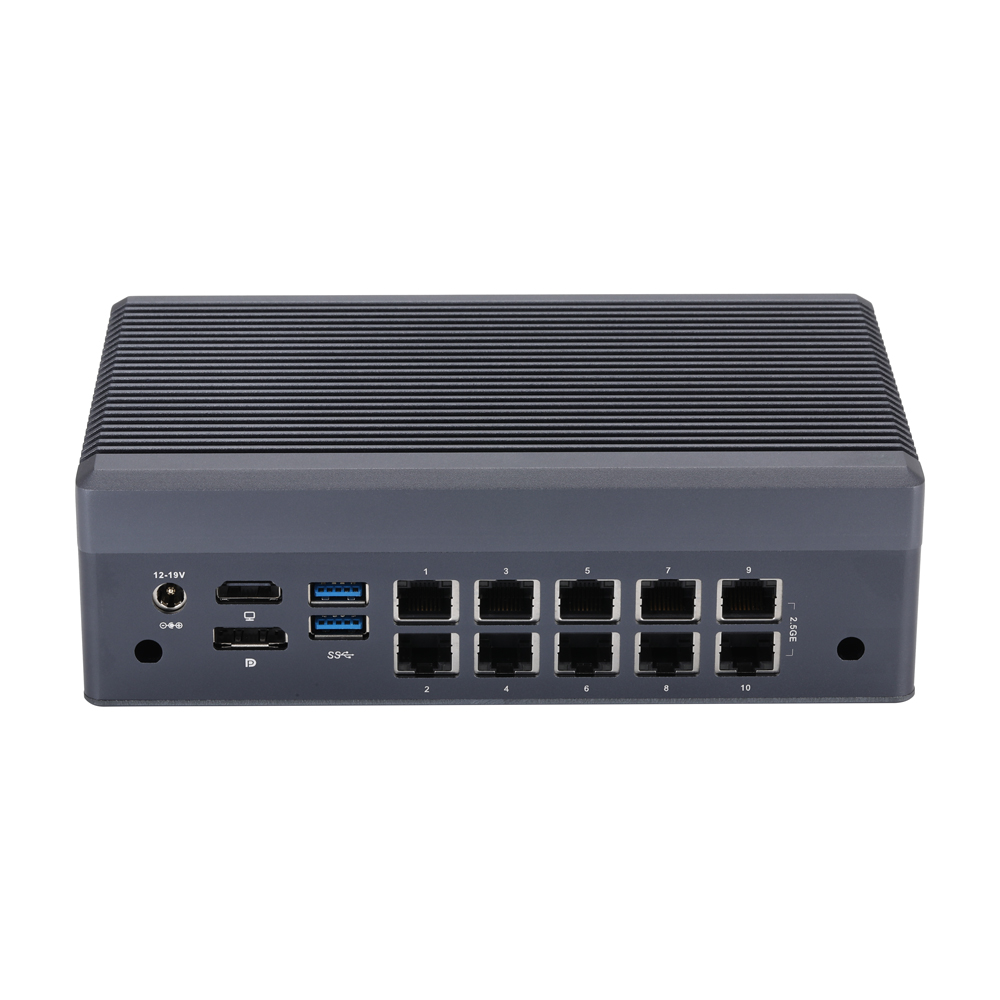

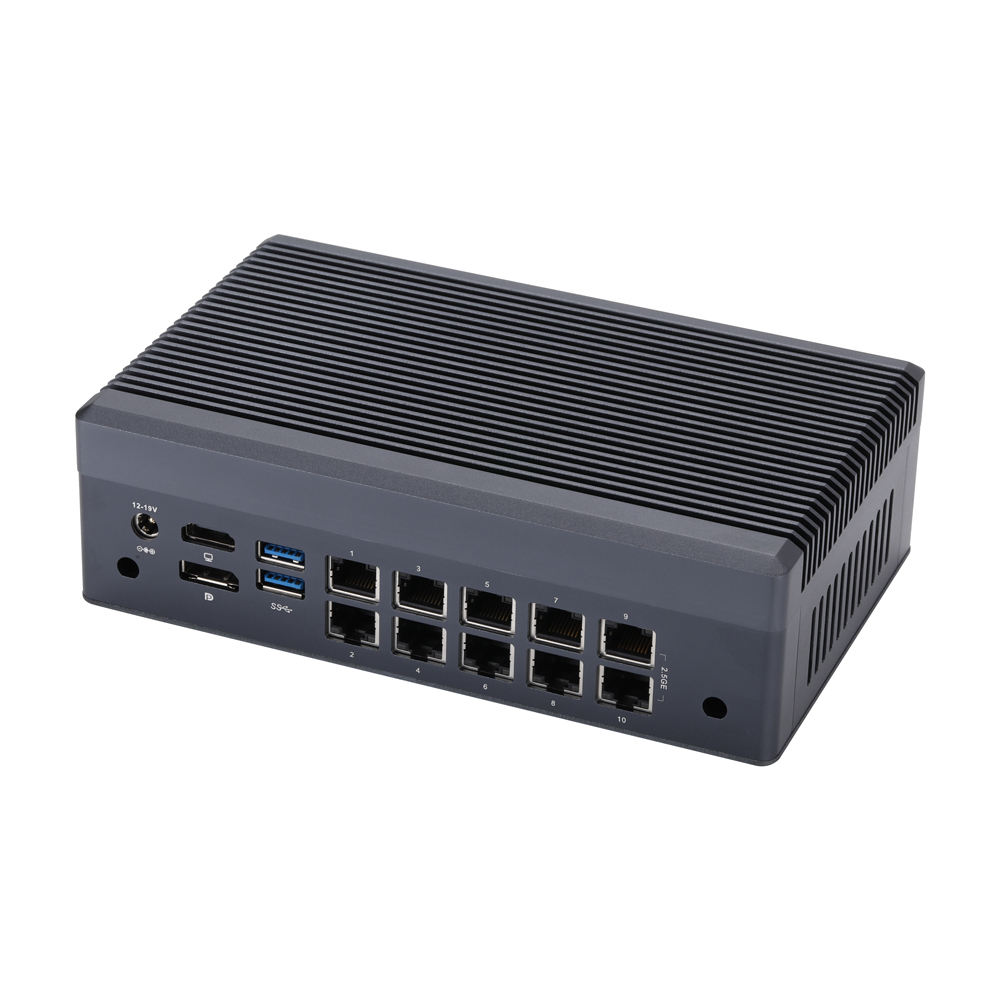

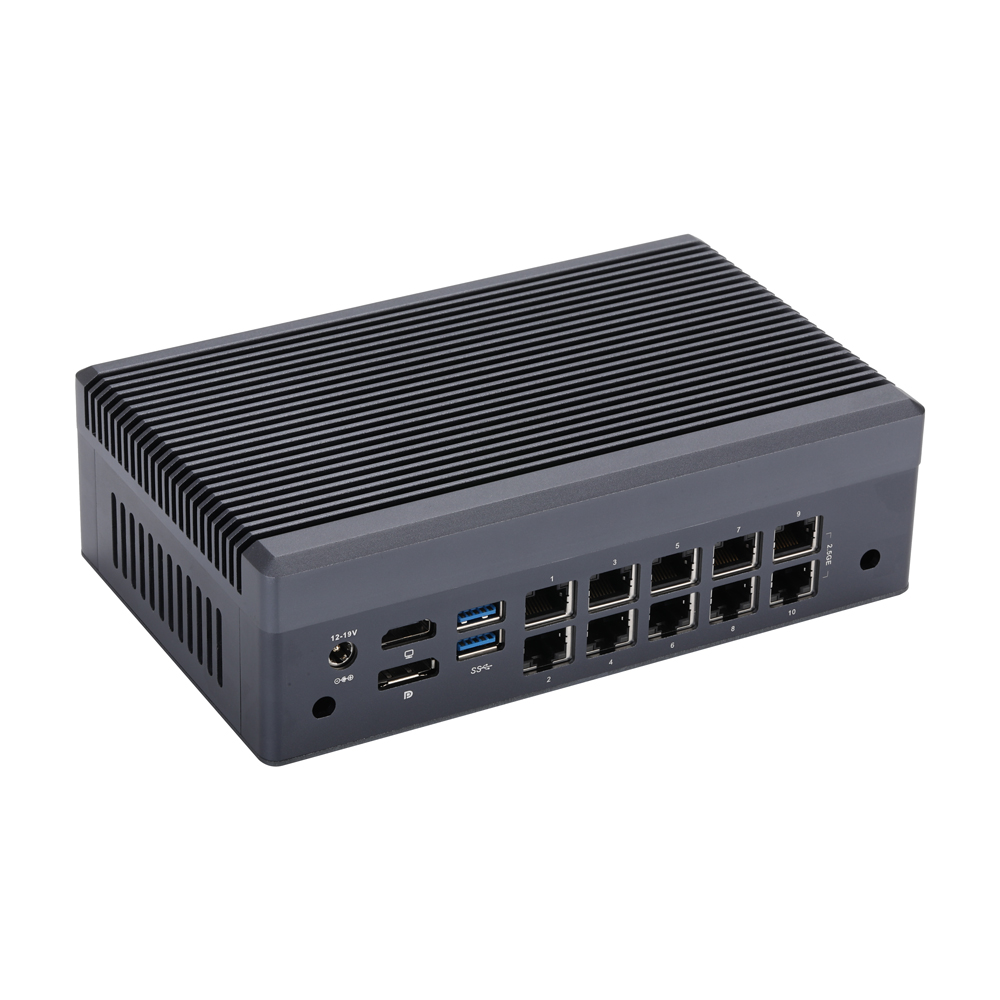

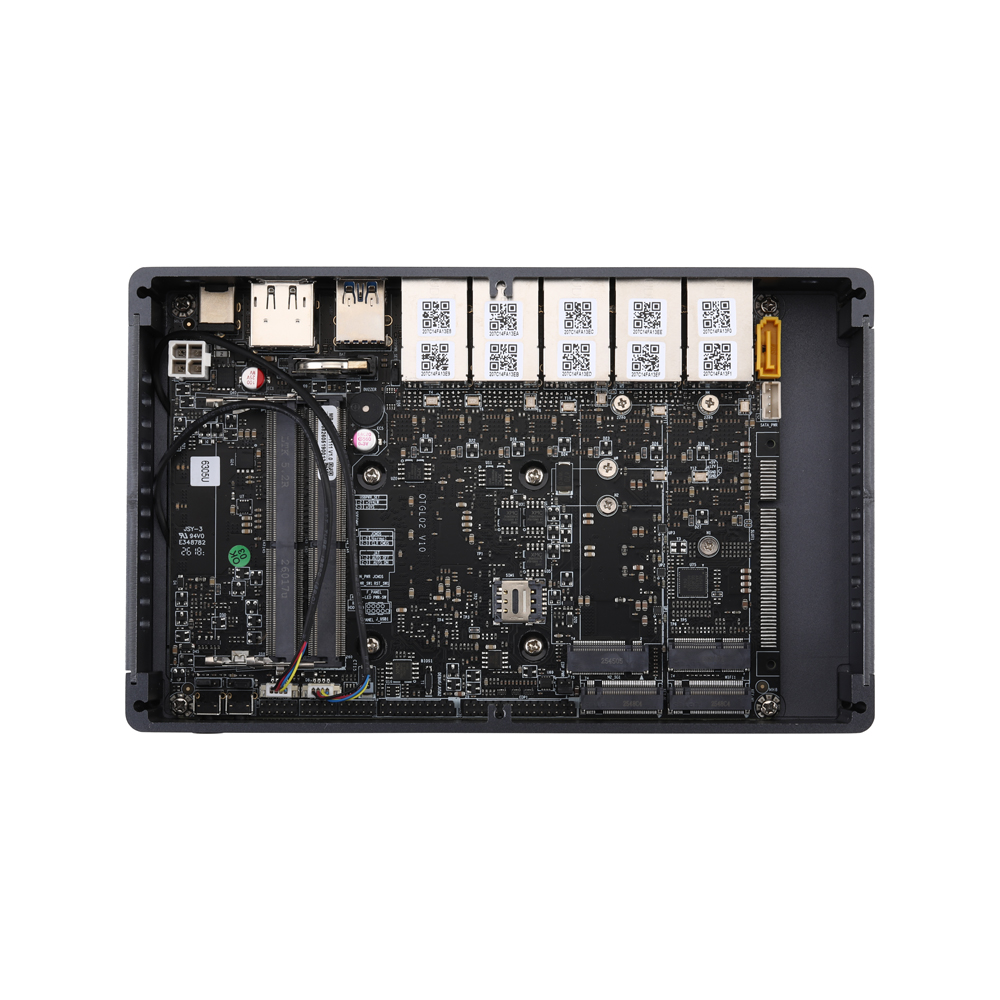

| Rear I/O | |
| Power | 1 × DC Jack |
| USB | 2 × USB 3.0 |
| Video Output | 1 × Display Port, 1 × HDMI |
| LAN | 10 × Intel I226-V 2.5 Gigabit LAN |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) |
| Expansion | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) 1 × M.2 for Wi-Fi (E key, Type: 2230) 1 × M.2 for 4G/5G (B key, Type: 3042/3052) |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| CMOS Clear Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Requirement | |
| Power Adapter | 12V7A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 196 × 122 × 59mm |
| Weight | 1.5kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 285 × 260 × 93mm |
| Kensington Lock | No |

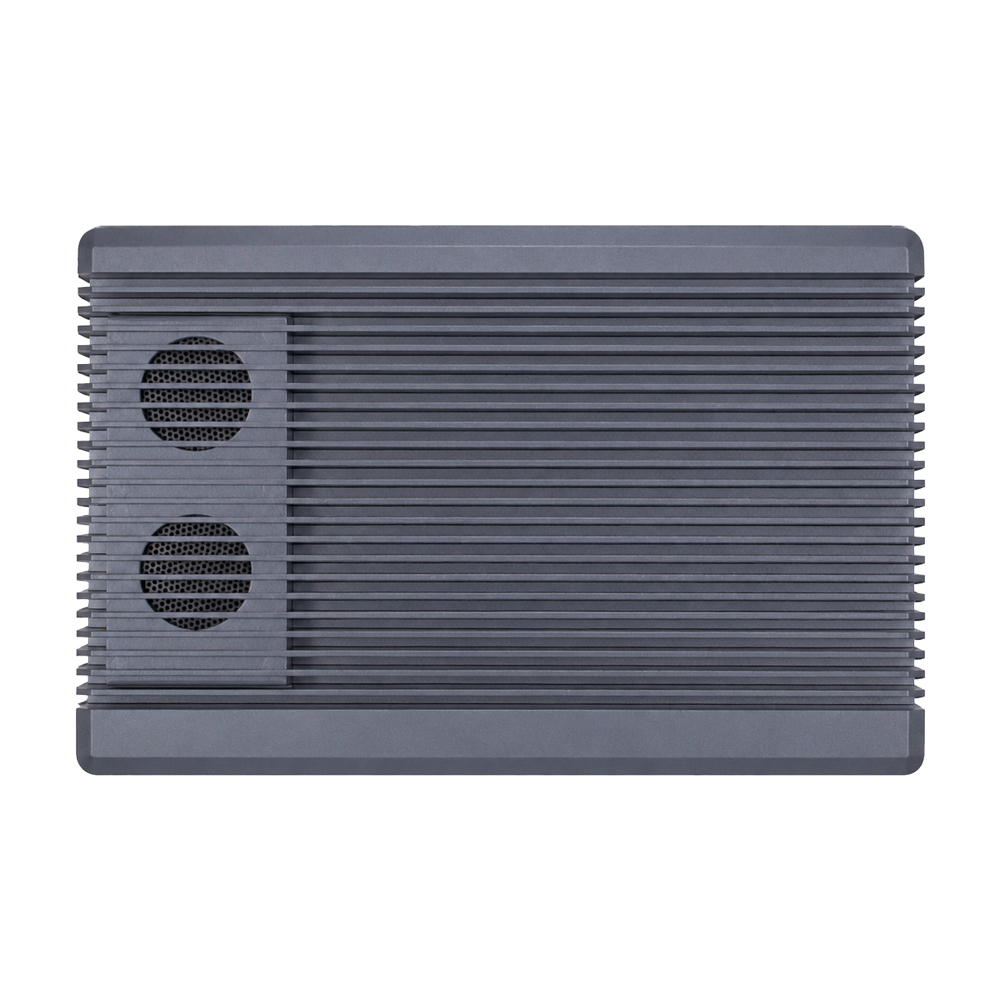

| Cooling Mode | Fan |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Ordering and GTpecifications Information
Quick Order Model: Q31231GT-S23
| Ordering Code | Q31211GT | Q31221GT | Q31231GT | Q31251GT | Q31271GT |
| Case | S23 | S23 | S23 | S23 | S23 |
| Code Name | Alder Lake U | Alder Lake U | Alder Lake U | Alder Lake U | Alder Lake U |
| Processor Type | Celeron | Pentium | Core i3 | Core i5 | Core i7 |
| Processor Number | 7305 | 8505 | 1215U | 1235U | 1255U |
| Total Cores | 5 | 5 | 6 | 10 | 10 |
| # of Performance-cores | 1 | 1 | 2 | 2 | 2 |
| # of Efficient-cores | 4 | 4 | 4 | 8 | 8 |
| # of Threads | 5 | 6 | 8 | 12 | 12 |
| Max Turbo Frequency | - | 4.40 GHz | 4.40 GHz | 4.40 GHz | 4.70 GHz |
| Performance-core Base Frequency | 1.10 GHz | 1.20 GHz | 1.20 GHz | 1.30 GHz | 1.70 GHz |
| Performance-core Max TurboFrequency | - | 4.40 GHz | 4.40 GHz | 4.40 GHz | 4.70 GHz |
| Efficient-core Base Frequency | 0.9 GHz | 0.9 GHz | 0.9 GHz | 0.9 GHz | 1.20 GHz |
| Efficient-core Max Turbo Frequency | - | 3.30 GHz | 3.30 GHz | 3.30 GHz | 3.50 GHz |
| Cache | 8M | 8M | 10M | 12M | 12M |
| Processor Graphics | Intel UHD Graphics | Intel UHD Graphics | Intel UHD Graphics | Intel Iris GTe Graphics eligible | Intel Iris GTe Graphics eligible |
| TDP | 15-55W | 15-55W | 15-55W | 15-55W | 15-55W |
| Ordering Code | Q41231GT | Q41251GT | Q41271GT | - | - |
| Case | S23 | S23 | S23 | - | - |
| Code Name | Alder Lake P | Alder Lake P | Alder Lake P | - | - |
| Processor Type | Core i3 | Core i5 | Core i7 | - | - |
| Processor Number | 1220P | 1240P | 1260P | - | - |
| Total Cores | 10 | 12 | 12 | - | - |
| # of Performance-cores | 2 | 4 | 4 | - | - |
| # of Efficient-cores | 8 | 8 | 8 | - | - |
| # of Threads | 12 | 16 | 16 | - | - |
| Max Turbo Frequency | 4.40 GHz | 4.40 GHz | 4.70 GHz | - | - |
| Performance-core Base Frequency | 1.50 GHz | 1.70 GHz | 2.10 GHz | - | - |
| Performance-core Max Turbo Frequency | 4.40 GHz | 4.40 GHz | 4.70 GHz | - | - |
| Efficient-core Base Frequency | 1.10 GHz | 1.20 GHz | 1.50 GHz | - | - |
| Efficient-core Max Turbo Frequency | 3.30 GHz | 3.30 GHz | 3.40 GHz | - | - |
| Cache | 12M | 12M | 18M | - | - |
| Processor Graphics | Intel UHD Graphics | Intel Iris GTe Graphics eligible | Intel Iris GTe Graphics eligible | - | - |
| TDP | 28-64W | 28-64W | 28-64W | - | - |
| Ordering Code | Q51251GT | Q51271GT | Q51291GT |
| Case | S23 | S23 | S23 |
| Code Name | Alder Lake H | Alder Lake H | Alder Lake H |
| Processor Type | Core i5 | Core i7 | Core i9 |
| Processor Number | 12450H | 12650H | 12900H |
| Total Cores | 8 | 10 | 14 |
| # of Performance-cores | 4 | 6 | 6 |
| # of Efficient-cores | 4 | 4 | 8 |
| # of Threads | 12 | 16 | 20 |
| Max Turbo Frequency | 4.40 GHz | 4.70 GHz | 5.00 GHz |
| Performance-core Base Frequency | 2.00 GHz | 2.30 GHz | 2.50 GHz |
| Performance-core Max Turbo Frequency | 4.40 GHz | 4.70 GHz | 5.00 GHz |
| Efficient-core Base Frequency | 1.50 GHz | 1.70 GHz | 1.80 GHz |
| Efficient-core Max TurboFrequency | 3.30 GHz | 3.50 GHz | 3.80 GHz |
| Cache | 12M | 24M | 24M |
| Processor Graphics | Intel UHD Graphics | Intel Iris GTe Graphics eligible | Intel Iris GTe Graphics eligible |
| TDP | 45-95W | 45-115W | 45-115W |
PC Case Options
| Category | SATA Support |
| S23 | Yes |
| S20 | Yes |
Custom Options
| Category | Description |
| GPIO | 1 |
| RS-485 | 2 |
| PS2 | 2 |
| TPM 2.0 | 1 (Z32H330TC) |
