Mini PC Q10700X S08 Series

Q10700X industrial mini PC with Intel Jasper Lake CPU, HDMI & DP, 5× RS-232, USB 3.0, Type-C, 3× M.2, SATA, and dual Realtek Gigabit LAN—compact and versatile for embedded and control systems.

NIC
2
USB
1 × USB 3.0, 5 × USB 2.0, 1 × Type C
RS-232
5
RS-485
COM1/2 can be set up as RS-485
VGA
None
PS/2
None
GPIO
None
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

OVERVIEW

Main Features

  • Intel Jasper Lake Processor

  • 1 × HDMI, 1 × Display Port

  • 5 × RS-232

  • 1 × USB 3.0, 5 × USB 2.0, 1 × Type C

  • 3 × M.2, 1 × SATA 3.0

  • 2 × Realtek Gigabit LAN


Q10700X Series Product Expansion and Product Image Differences

Base Model: Q10700X

Qotom Mini PC Q10700X-S08

Extended Models:

Q10700XV: +1 × VGA, 1 × RS-232

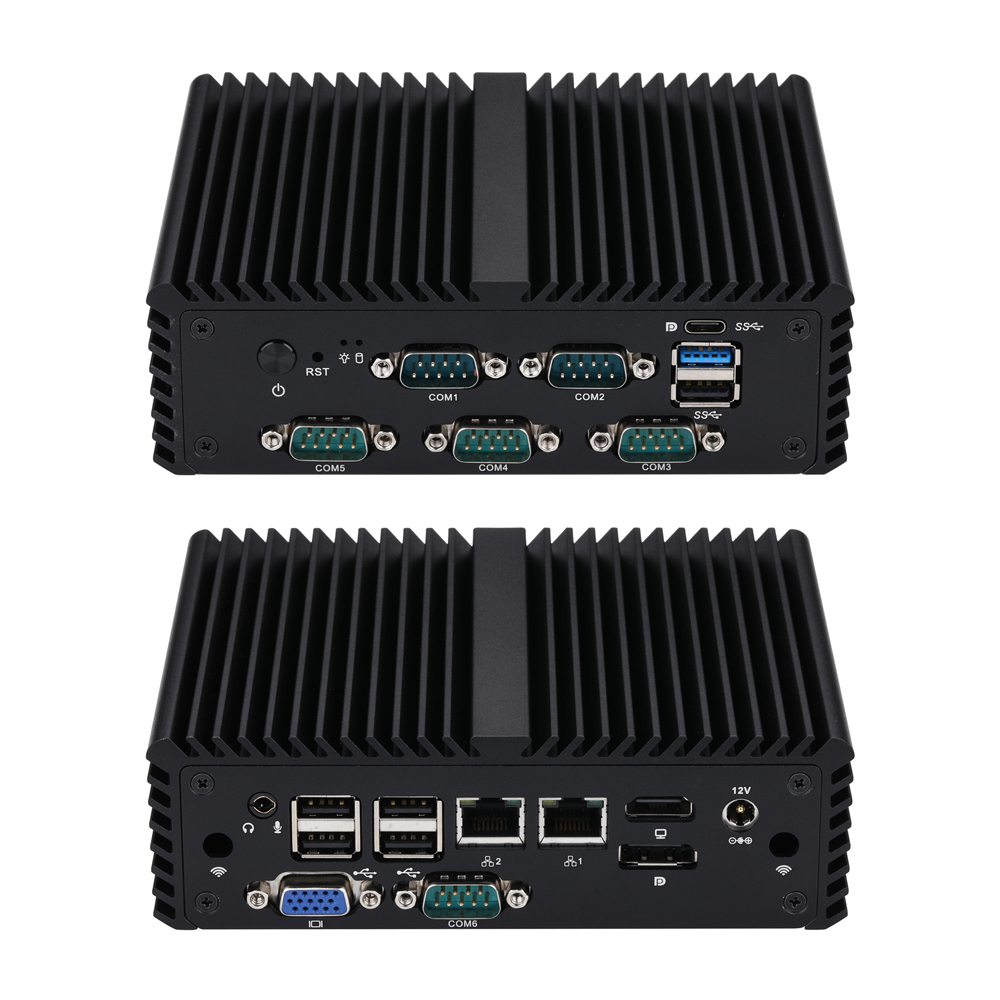

Qotom Mini PC Q10700XV-S08


SPECIFICATION


Processor System
CPUIntel Jasper Lake Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket (Up to 16G)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogYes
Front I/O
Power Button1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
Serial Port5 × RS-232 (COM1/2 can be set up as RS-485)
(COM1-5 support 5V/12V, Requires Customization)
USB1 × USB3.0, 1 × USB2.0, 1 × Type C (USB 3.0)
Rear I/O
Power1 × DC Jack
Video Output1 × HDMI, 1 × Display Port
USB4 × USB 2.0
LAN2 × Realtek Gigabit LAN
Audio1 (Mic-in, Line-out)
PS/20
Serial Port0
Storage
Type1 × 2.5-inch HDD/SSD
1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)
Expansion
M.21 × M.2 for SSD
(M key, Type: 2280, PCIe 3.0 × 1)
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
GPIO0
Power Header1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)
SIM Card Slot1
Clear CMOS JumperYes, 1 × 3Pin, Pitch 2.0mm
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
Power Requirement
Power Adapter12V3A
DC Jack5.5mm, 2.5mm
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension155 × 127 × 48mm
Weight0.87kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design
OS Support
OSUEFI Windows 10, UEFI Linux

PACKING

Packing List

NO.CategoryQuantityRemark
1Mini PC1
2Silicone Mat4
3VESA Bracket1
4Screws for VESA Bracket1
5Power Adapter1
6AC Power Cord1
7Screws for SATA SSD/HDD1
8SATA cable for SSD/HDD1Option
9Antennas2Option
ItemQuantity
  • 1
    Mini PC
    1
  • 2
    Silicone Mat
    4
  • 3
    VESA Bracket
    1
  • 4
    Screws for VESA Bracket
    1
  • 5
    Power Adapter
    1
  • 6
    AC Power Cord
    1
  • 7
    Screws for SATA SSD/HDD
    1
  • 8
    SATA cable for SSD/HDD
    Option
    1
  • 9
    Antennas
    Option
    2

ORDERING


Ordering and Specifications Information

Quick Order Model: Q10722X-S08

Ordering CodeCaseCode Name Processor TypeProcessor Number# of Cores# of ThreadsBase FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
Q10711XS08Jasper LakeCeleronN4500221.1GHz2.8GHz4MIntel UHD Graphics6W
Q10712XS08Jasper LakeCeleronN4505222.0GHz2.9GHz4MIntel UHD Graphics10W
Q10721XS08Jasper LakeCeleronN5100441.1GHz2.8GHz4MIntel UHD Graphics6W
Q10722XS08Jasper LakeCeleronN5105442.0GHz2.9GHz4MIntel UHD Graphics10W
Q10723XS08Jasper LakeCeleronN5095442.0GHz2.9GHz4MIntel UHD Graphics15W
Q10731XS08Jasper LakePentiumN6000441.1GHz3.0GHz4MIntel UHD Graphics6W
Q10732XS08Jasper LakePentiumN6005442.0GHz3.3GHz4MIntel UHD Graphics10W
Q10711XS08
Case
S08
Code Name
Jasper Lake
Processor Type
Celeron
Processor Number
N4500
# of Cores
2
# of Threads
2
Base Frequency
1.1GHz
Max Turbo Frequency
2.8GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
6W
Q10712XS08
Case
S08
Code Name
Jasper Lake
Processor Type
Celeron
Processor Number
N4505
# of Cores
2
# of Threads
2
Base Frequency
2.0GHz
Max Turbo Frequency
2.9GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
10W
Q10721XS08
Case
S08
Code Name
Jasper Lake
Processor Type
Celeron
Processor Number
N5100
# of Cores
4
# of Threads
4
Base Frequency
1.1GHz
Max Turbo Frequency
2.8GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
6W
Q10722XS08
Case
S08
Code Name
Jasper Lake
Processor Type
Celeron
Processor Number
N5105
# of Cores
4
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
2.9GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
10W
Q10723XS08
Case
S08
Code Name
Jasper Lake
Processor Type
Celeron
Processor Number
N5095
# of Cores
4
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
2.9GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q10731XS08
Case
S08
Code Name
Jasper Lake
Processor Type
Pentium
Processor Number
N6000
# of Cores
4
# of Threads
4
Base Frequency
1.1GHz
Max Turbo Frequency
3.0GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
6W
Q10732XS08
Case
S08
Code Name
Jasper Lake
Processor Type
Pentium
Processor Number
N6005
# of Cores
4
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
3.3GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
10W
