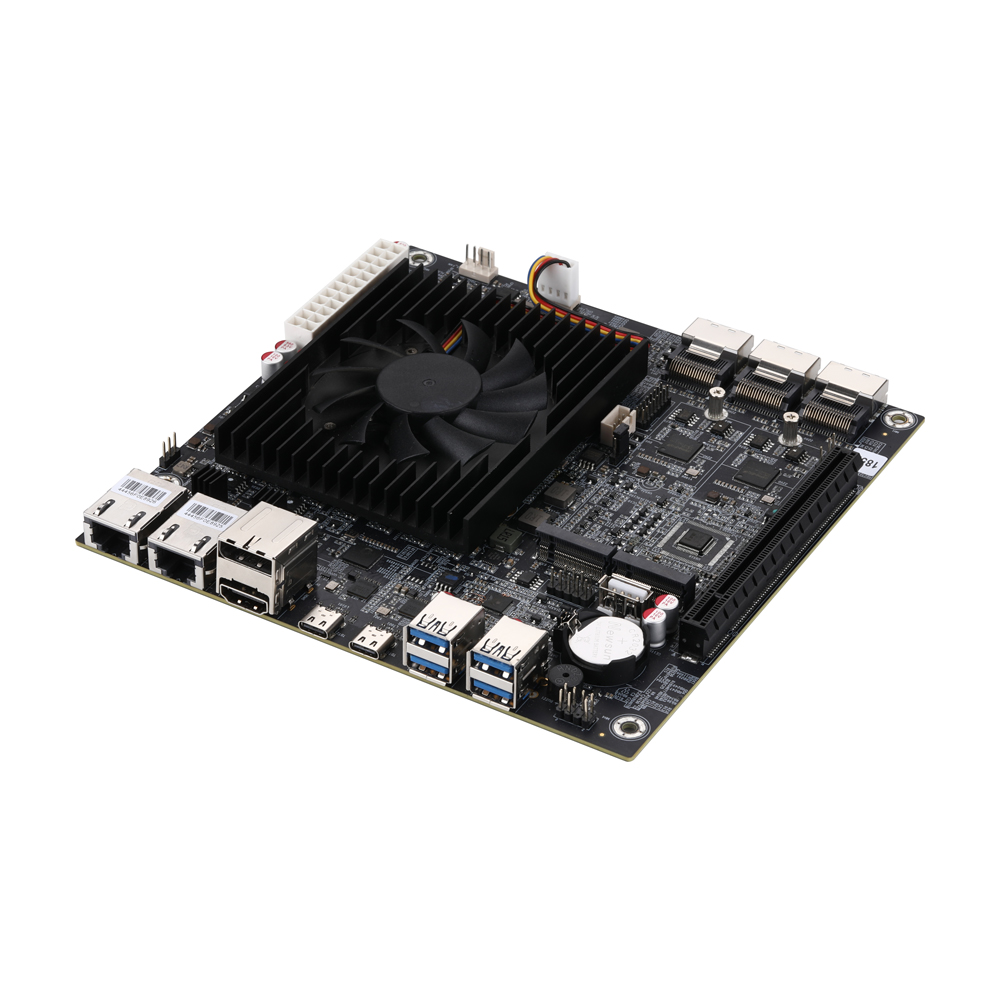

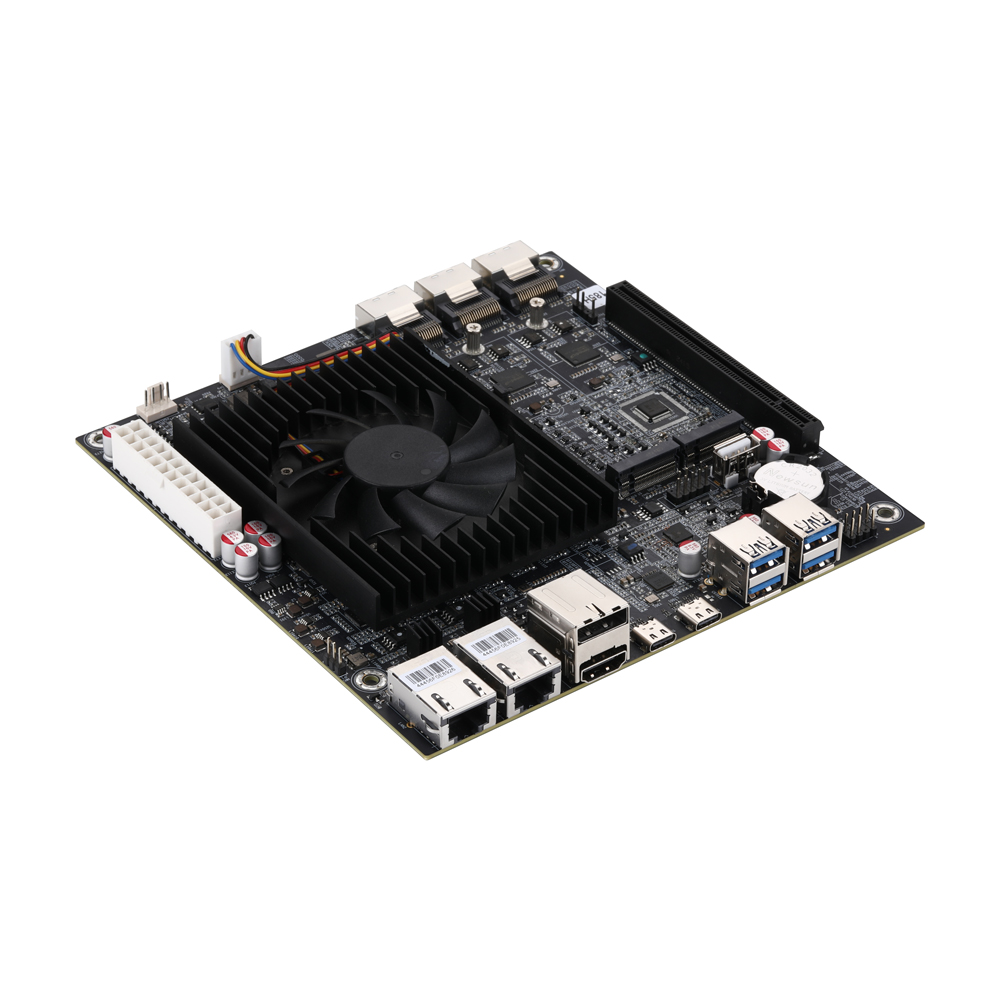

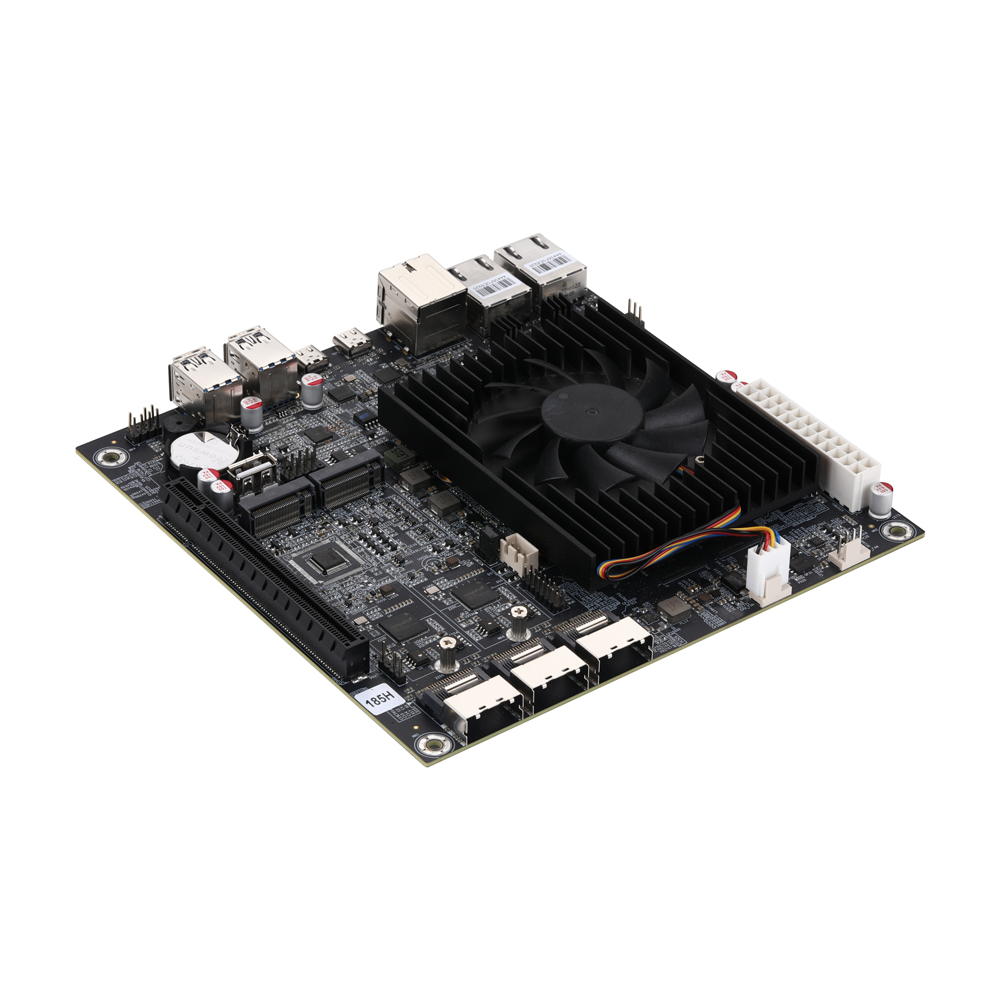

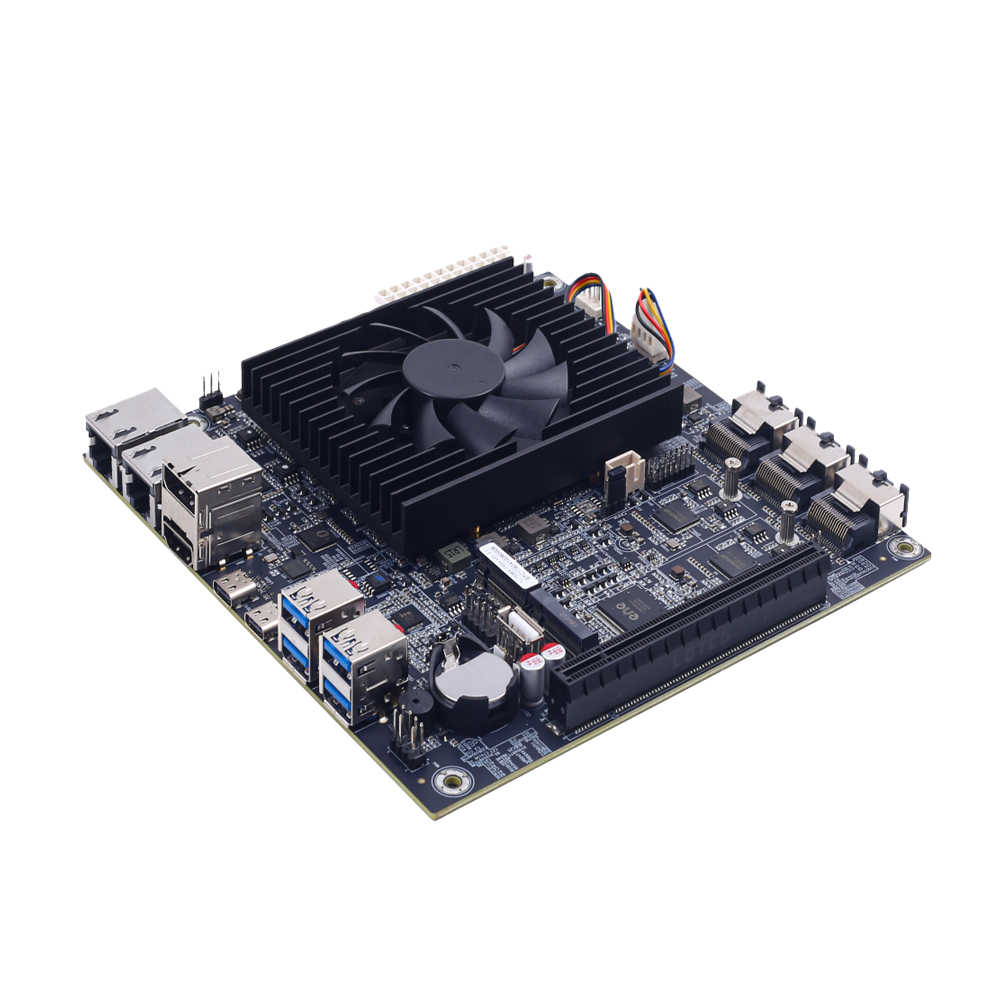

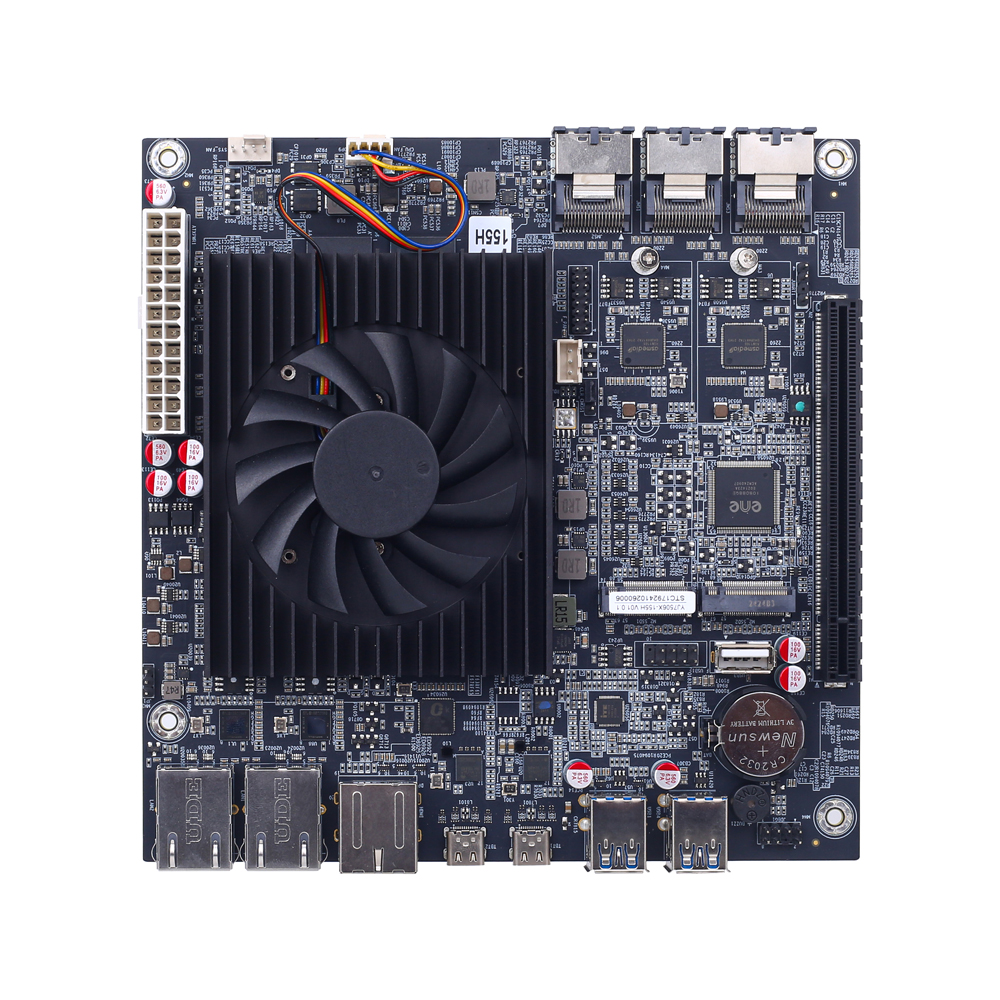

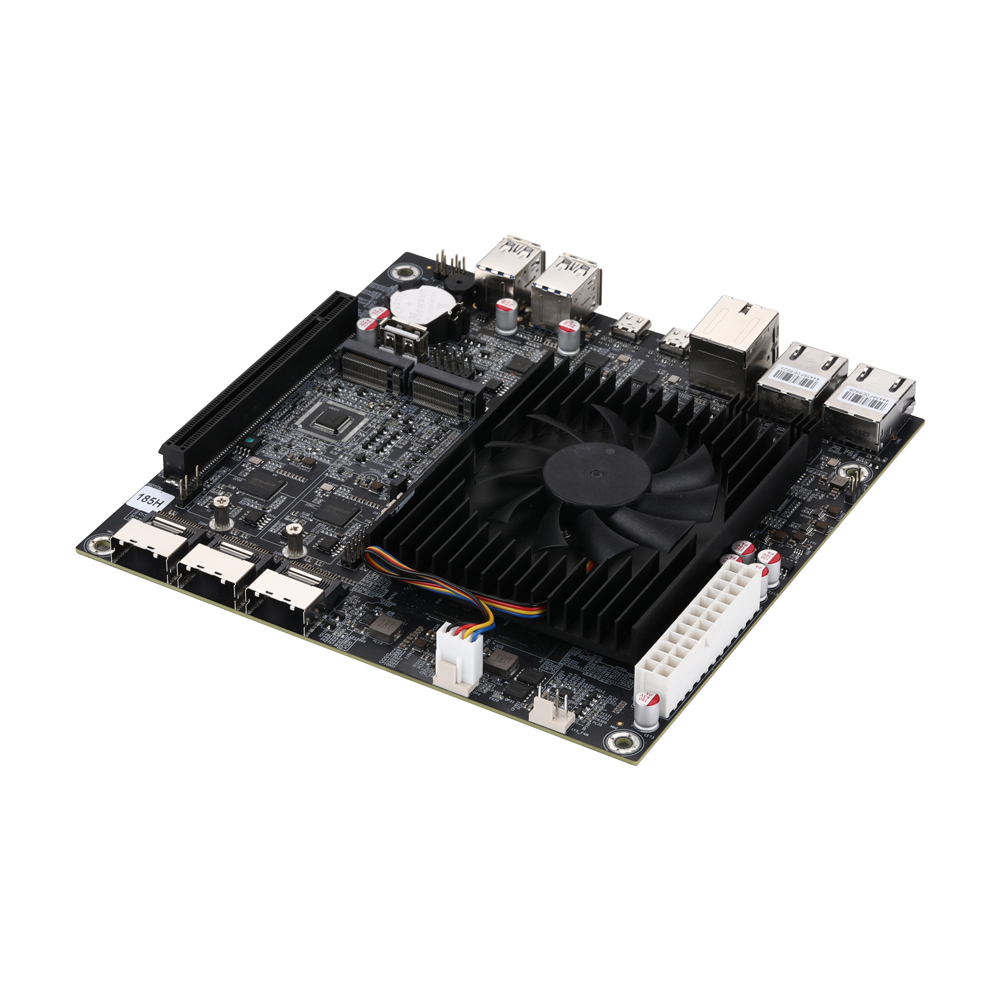

Motherboard MB7U20Z-1500 Series
MB7U20Z-1500 mini server board with Intel Meteor/Arrow Lake CPUs, PCIe 5.0 x8, dual 10GbE LAN, Thunderbolt 4, and up to 12× SATA—perfect for storage, networking, and high-speed computing.
- Mini SAS
- 3
- SATA 3.0
- 0
Tell us the configuration and quantity you need.
Detailed Information
Main Features
Intel Meteor Lake U/H Ultra Processor(Series 1)
Intel Arrow Lake U/H Ultra Processor(Series 2)
1 × Display Port, 1 × HDMI
2 × Thunderbolt 4, 4 × USB 3.2, 1 × USB 2.0
2 × M.2, 3 × Mini SAS ( 12 × SATA 3.0)
2 × Marvell AQC113C 10 Gigabit LAN
1 × PCIe× 16 Slot ( PCIe 5.0 × 8)
Specification
| Processor System | |
| Dimension | 170 × 170mm |
| CPU | Intel Meteor Lake U/H Ultra Processor(Series 1) Intel Arrow Lake U/H Ultra Processor(Series 2) |
| Core Number | By CPU |
| Max. Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | By CPU |
| BIOS | UEFI |
| Expansion Slot | |
| M.2 | 2 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) |
| PCIe Slot | 1 × PCIe Slot (Type: X16, PCIe 5.0 × 8) |
| Memory | |
| Technology | LPDDR5 8400MHz SDRAM |
| Default | 32GB, Integrated |
| Max. | 64GB (Option) |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| Display Port | 1 |
| HDMI | 1 (Support HDMI 1.4a) |
| Multi Display | Yes |
| Ethernet | |
| RJ45/10G | 2, Marvell AQC113C 10 Gigabit LAN |
| Storage | |
| M.2 | 2 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) |
| Mini SAS | 3 × Mini SAS ( 12 × SATA 3.0) |
| Real I/O | |
| Ethernet | 2 × 10G |
| Display | 1 × Display Port, 1 × HDMI |
| Thunderbolt 4 | 2 |
| USB | 4 × USB 3.2 Gen2 10Gbps (Type A) |
| Front I/O | |
| Mini SAS | 3 × Mini SAS ( 12 × SATA 3.0) |
| Internal Connector | |
| PCIe Slot | 1, PCIe slot (Type: X16, PCIe 5.0 × 8) |
| Power Connector | ATX PWR (24 pin) |
| CPU FAN Connector | 1, 1 × 4Pin, Pitch 2.54mm |
| SYS FAN Connector | 1, 1 × 4Pin, Pitch 2.54mm |
| Front Panel Header | 1, 2 × 8Pin, Pitch 2.0mm |
| USB 2.0 Connector | 1 × USB 2.0 (Type A) |
| USB 2.0 Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Serial Port | 1, 1 × 4Pin, Pitch 2.54mm |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| Power Requirement | |
| Input PWR | ATX PWR (24 pin) |
| Watchdog Timer | |
| Output | From Super I/O to Drag RESETCON# |
| Interval | 256 Segments,0,1,2,3,,,255 sec/min |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| Accessories | |
| Accessories | No |
| OS Support | |
| OS | UEFI Windows 11, UEFI Linux |
Packing
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
Ordering and spec information
Ordering and Specifications Information
Quick Order Model: MB7H20Z-1551
| Ordering Code | MB7U20Z-1551 | MB7U20Z-1571 | MB7H20Z-1551 | MB7H20Z-1571 | MB7H20Z-1591 |
| Code Name | Meteor Lake | Meteor Lake | Meteor Lake | Meteor Lake | Meteor Lake |
| Processor Type | Core Ultra 5 | Core Ultra 7 | Core Ultra 5 | Core Ultra 7 | Core Ultra 9 |
| Processor Number | 125U | 155U | 125H | 155H | 185H |
| Total Cores | 12 | 12 | 14 | 16 | 16 |
| # of Performance-cores | 2 | 2 | 4 | 6 | 6 |
| # of Efficient-cores | 8 | 8 | 8 | 8 | 8 |
| # of Low Power Efficient-cores | 2 | 2 | 2 | 2 | 2 |
| # of Threads | 14 | 14 | 18 | 22 | 22 |
| Max Turbo Frequency | 4.30 GHz | 4.80 GHz | 4.50 GHz | 4.80 GHz | 5.10 GHz |
| IntelTurbo Boost Max Technology 3.0 Frequency | / | / | / | 4.80 GHz | 5.10 GHz |
| Performance-core Max Turbo Frequency | 4.30 GHz | 4.80 GHz | 4.50 GHz | 4.80 GHz | 5.10 GHz |
| Efficient-core Max Turbo Frequency | 3.60 GHz | 3.80 GHz | 3.60 GHz | 3.80 GHz | 3.80 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.10 GHz | 2.10 GHz | 2.50 GHz | 2.50 GHz | 2.50 GHz |
| Performance-core Base Frequency | 1.30 GHz | 1.70 GHz | 1.20 GHz | 1.40 GHz | 2.30 GHz |
| Efficient-core Base Frequency | 800 MHz | 1.20 GHz | 700 MHz | 900 MHz | 1.80 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz | 700 MHz | 700 MHz | 700 MHz | 1.00 GHz |
| Cache | 12M | 12M | 18M | 24M | 24M |
| Processor Graphics | Intel Graphics | Intel Graphics | Intel Arc graphics | Intel Arc graphics | Intel Arc graphics |
| TDP | 15-57W | 15-57W | 28-115W | 28-115W | 45-115W |
| Ordering Code | MB7U20Z-1651 | MB7U20Z-1671 | MB7H20Z-1651 | MB7H20Z-1671 | MB7H20Z-1691 |
| Code Name | Arrow Lake | Arrow Lake | Arrow Lake | Arrow Lake | Arrow Lake |
| Processor Type | Core Ultra 5 | Core Ultra 7 | Core Ultra 5 | Core Ultra 7 | Core Ultra 9 |
| Processor Number | 225U | 255U | 225H | 255H | 285H |
| Total Cores | 12 | 12 | 14 | 16 | 16 |
| # of Performance-cores | 2 | 2 | 4 | 6 | 6 |
| # of Efficient-cores | 8 | 8 | 8 | 8 | 8 |
| # of Low Power Efficient-cores | 2 | 2 | 2 | 2 | 2 |
| # of Threads | 14 | 14 | 14 | 16 | 16 |
| Max Turbo Frequency | 4.80 GHz | 5.20 GHz | 4.90 GHz | 5.10 GHz | 5.40 GHz |
| Intel Turbo Boost Max Technology 3.0 Frequency | / | / | / | / | / |
| Performance-core Max Turbo Frequency | 4.80 GHz | 5.20 GHz | 4.90 GHz | 5.10 GHz | 5.40 GHz |
| Efficient-core Max Turbo Frequency | 3.80 GHz | 4.20 GHz | 4.30 GHz | 4.40 GHz | 4.50 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.40 GHz | 2.40 GHz | 2.50 GHz | 2.50 GHz | 2.50 GHz |
| Performance-core Base Frequency | 1.50 GHz | 2.00 GHz | 1.70 GHz | 2.00 GHz | 2.90 GHz |
| Efficient-core Base Frequency | 1.30 GHz | 1.70 GHz | 1.30 GHz | 1.50 GHz | 2.70 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz | 700 MHz | 700 MHz | 700 MHz | 1.00 GHz |
| Cache | 12M | 12M | 18M | 24M | 24M |
| Processor Graphics | Intel Graphics | Intel Graphics | Intel Arc 130T GPU | Intel Arc 140T GPU | Intel Arc 140T GPU |
| TDP | 15-57W | 15-57W | 28-115W | 28-115W | 45-115W |
