Motherboard MB2J260-0700 Series Motherboard MB2J260-0700 Series Motherboard MB2J260-0700 Series Motherboard MB2J260-0700 Series Motherboard MB2J260-0700 Series Motherboard MB2J260-0700 Series

Motherboard MB2J260-0700 Series

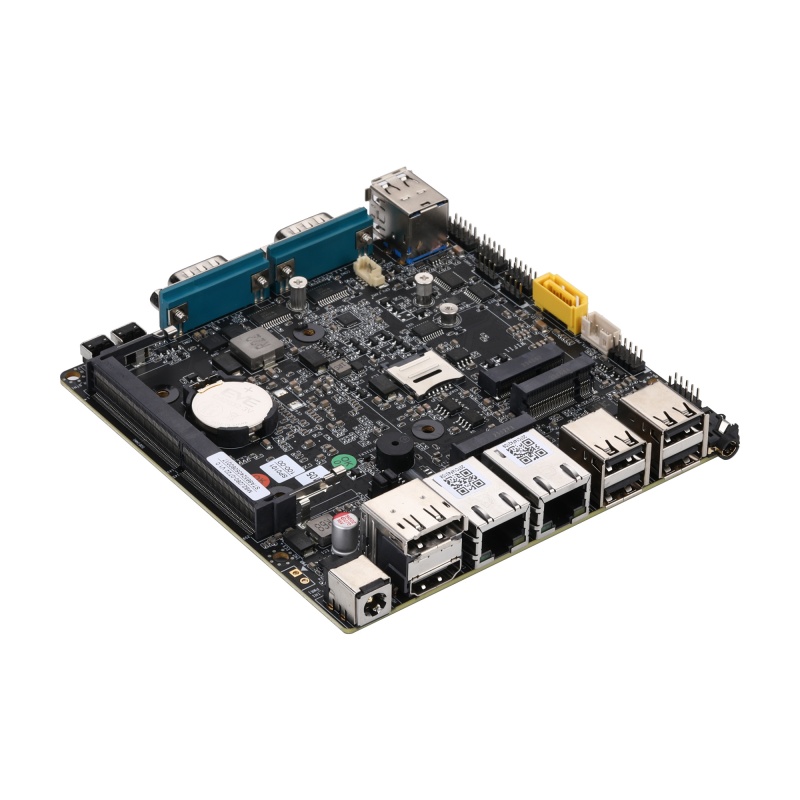

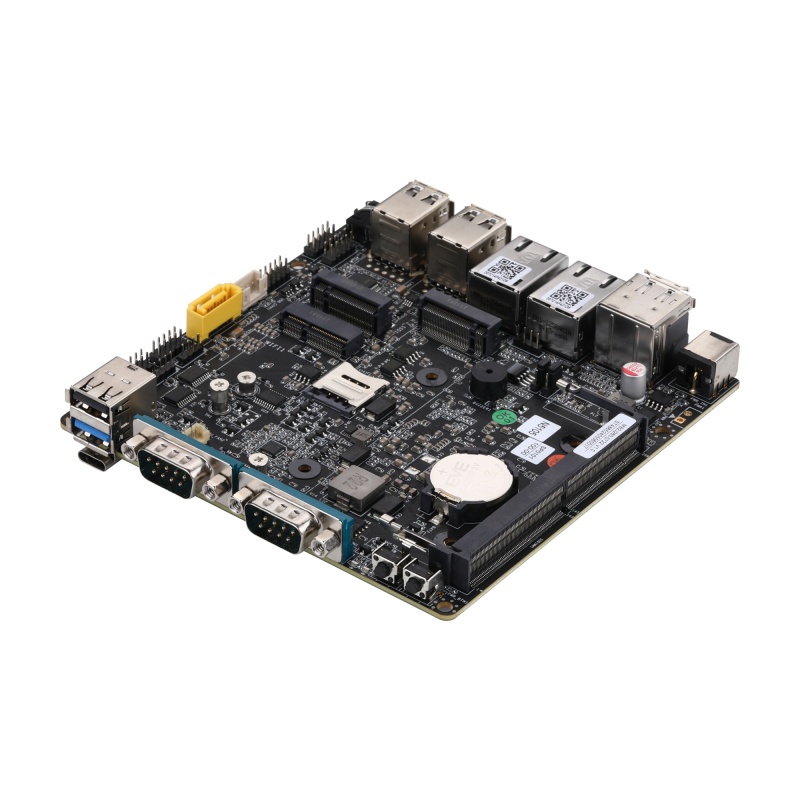

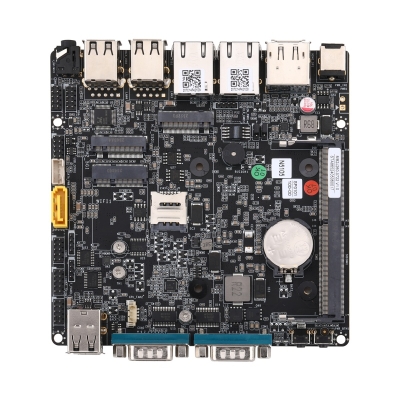

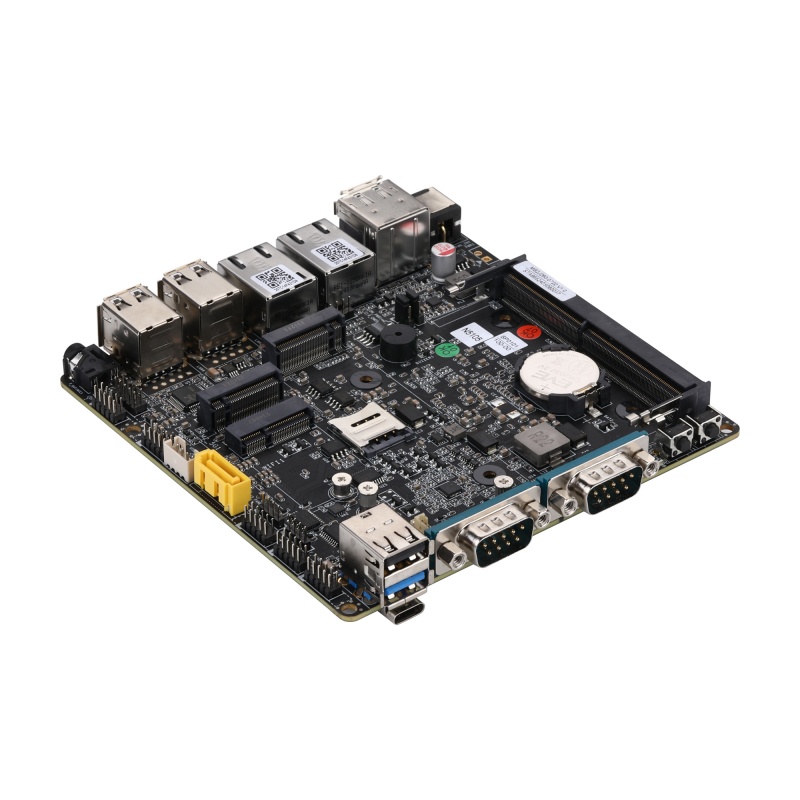

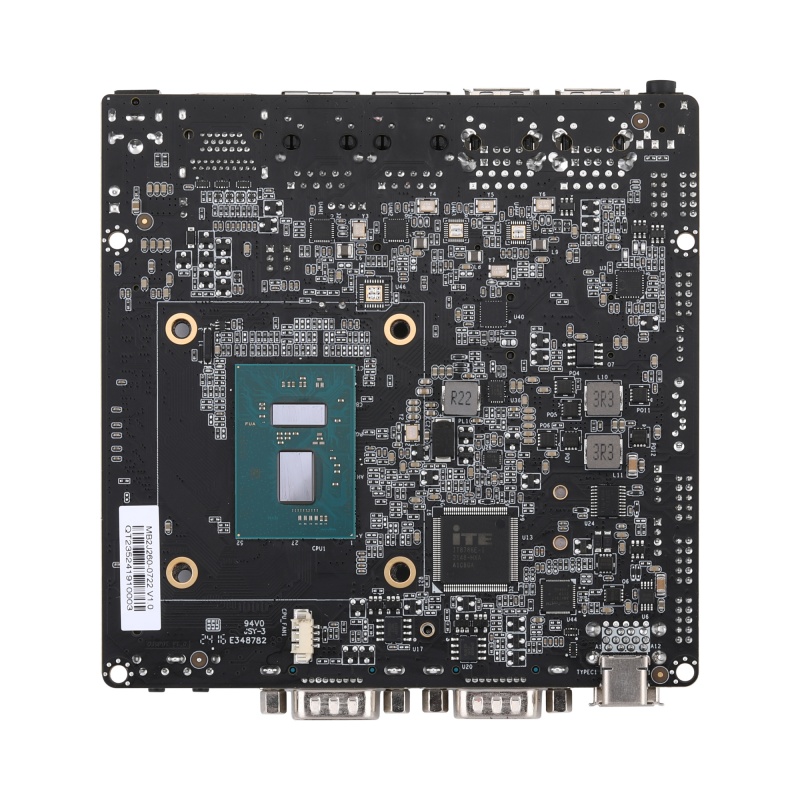

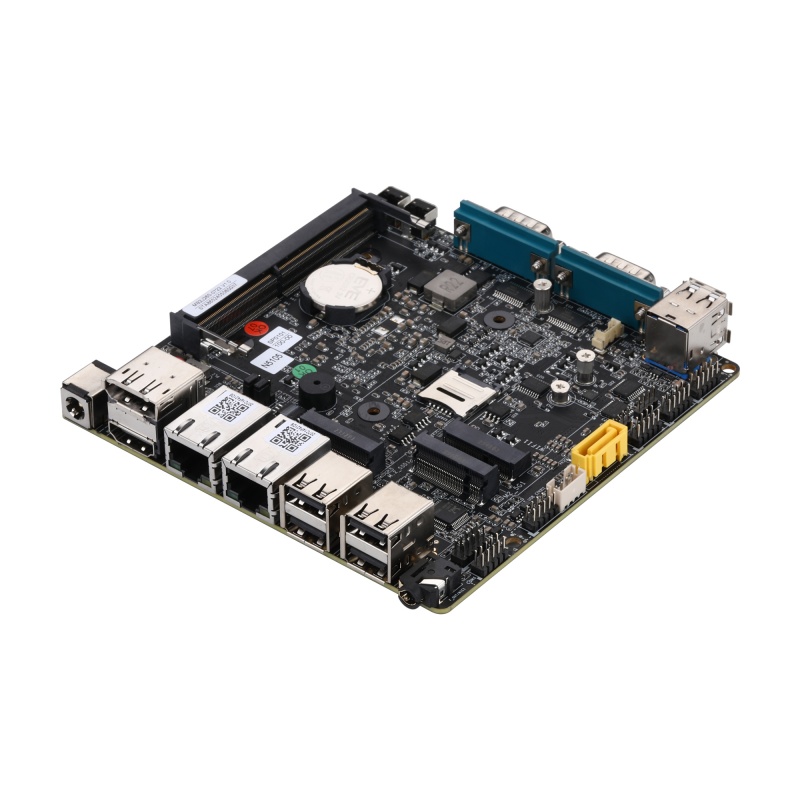

Qotom MB2J260-0700 industrial motherboard with Intel Jasper Lake CPU, triple display output, multiple USB ports, 6×RS-232, and dual Gigabit LAN for embedded and industrial use.

NIC
2
USB
6
RS-232
6
RS-485
0
VGA
1
PS/2
2
GPIO
0
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

  • Intel Jasper Lake Processor

  • 1 × HDMI, 1 × Display Port, 1 × VGA (Header)

  • 1 × USB 3.0, 5 × USB 2.0, 1 × Type C

  • 3 × M.2, 1 × SATA 3.0

  • 6 × RS-232, 2 × PS/2

  • 2 × Realtek Gigabit LAN

Specifications

Processor System
Dimension120 × 120mm
CPUIntel Jasper Lake Processor
Core NumberBy CPU
SpeedBy CPU
L2 CacheBy CPU
ChipsetBy CPU
BIOSUEFI
Expansion Slot
M.21 × M.2 for SSD
(M key, Type: 2280, PCIe 3.0 × 1)
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Memory
TechnologyDDR4 2666MHz SDRAM
Max.32GB
Socket1 × SO-DIMM
Graphics
ControllerBy CPU
VRAMShared Memory
Display1 × Display Port
1 × HDMI
1 × VGA (Header)
Multi DisplayYes
Ethernet
Interface100/1000Mbps
Controller2 × Realtek Gigabit LAN
Connector2 × RJ-45
Audio
ControllerRealtek HD Audio
SATA
Max. Data Transfer RateSATA 3.0 (6.0Gb/S)
Accessories
AccessoriesCable for HDD, Cable for Serial Port
Real I/O
DC-IN1
Display1 × HDMI, 1 × Display Port
Ethernet2
USB4 × USB 2.0
Audio1 (Mic-in, Line-out)
Front I/O
Power Button1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
Serial Port2 × RS-232
USB1 × USB 3.0, 1 × USB 2.0
Type C1, USB 3.0 and Display Port
Internal Connector
VGA Header1, 2 × 5Pin, Pitch 2.0mm
Serial Port4, 2 × 5Pin, Pitch 2.0mm
RS-485COM1/2 can be set up as RS-485
PS/22, 1 × 4Pin, Pitch 2.0mm
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
Clear CMOS JumperYes, 1 × 3Pin, Pitch 2.0mm
USB 2.02, 2 × 5Pin, Pitch 2.0mm
Front Panel Header2, 1 × 4Pin, Pitch 2.0mm
Power Header1, Phoenix 1 × 2Pin, Pitch 3.5mm (Option)
Watchdog Timer
OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min
Power Requirement
Input PWR12V DC in, 5.5mm/2.5mm
Environment
Operating Temperature0-50 ℃
OS Support
OSUEFI Windows 10, UEFI Linux

In the box

Packing List

NO.CategoryQuantityRemark
1Motherboard1
2HDD cable1
3Radiator1Option
4Fan1Option
5Serial cableSeveral Depending on the model
ItemQuantity
  • 1
    Motherboard
    1
  • 2
    HDD cable
    1
  • 3
    Radiator
    Option
    1
  • 4
    Fan
    Option
    1
  • 5
    Serial cable
    Depending on the model
    Several

Models & options

Ordering and Specifications Information

Quick Order Model: MB2J260-0722

Ordering CodeCode NameProcessor TypeProcessor Number# of Cores# of Threads Base FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
MB2J260-0711Jasper LakeCeleronN4500221.1GHz2.8GHz4MIntel UHD Graphics6W
MB2J260-0712Jasper LakeCeleronN4505222.0GHz2.9GHz4MIntel UHD Graphics10W
MB2J260-0721Jasper LakeCeleronN5100441.1GHz2.8GHz4MIntel UHD Graphics6W
MB2J260-0722Jasper LakeCeleronN5105442.0GHz2.9GHz4MIntel UHD Graphics10W
MB2J260-0723Jasper LakeCeleronN5095442.0GHz2.9GHz4MIntel UHD Graphics15W
MB2J260-0731Jasper LakePentiumN6000441.1GHz3.0GHz4MIntel UHD Graphics6W
MB2J260-0732Jasper LakePentiumN6005442.0GHz3.3GHz4MIntel UHD Graphics10W
MB2J260-0711Jasper Lake
Code Name
Jasper Lake
Processor Type
Celeron
Processor Number
N4500
# of Cores
2
# of Threads
2
Base Frequency
1.1GHz
Max Turbo Frequency
2.8GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
6W
MB2J260-0712Jasper Lake
Code Name
Jasper Lake
Processor Type
Celeron
Processor Number
N4505
# of Cores
2
# of Threads
2
Base Frequency
2.0GHz
Max Turbo Frequency
2.9GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
10W
MB2J260-0721Jasper Lake
Code Name
Jasper Lake
Processor Type
Celeron
Processor Number
N5100
# of Cores
4
# of Threads
4
Base Frequency
1.1GHz
Max Turbo Frequency
2.8GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
6W
MB2J260-0722Jasper Lake
Code Name
Jasper Lake
Processor Type
Celeron
Processor Number
N5105
# of Cores
4
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
2.9GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
10W
MB2J260-0723Jasper Lake
Code Name
Jasper Lake
Processor Type
Celeron
Processor Number
N5095
# of Cores
4
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
2.9GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB2J260-0731Jasper Lake
Code Name
Jasper Lake
Processor Type
Pentium
Processor Number
N6000
# of Cores
4
# of Threads
4
Base Frequency
1.1GHz
Max Turbo Frequency
3.0GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
6W
MB2J260-0732Jasper Lake
Code Name
Jasper Lake
Processor Type
Pentium
Processor Number
N6005
# of Cores
4
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
3.3GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
10W
