Data Storage Q30900DS S14 NAS
Integrated processor, 4 Gigabit Intel network cards, Type C, support 2xDDR4 memory, 4x3.5-inch HDD, 2xM.2 for SSD (M key, Type: 2242/2260/2280)
Main Features
Intel 8th Whiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
1 × Display Port, 2 × HDMI
3 × USB 3.0, 1 × USB 2.0, 1 × Type C
2 × M.2, 4 × SATA 3.0
4 × Intel I225-V/I226-V 2.5 Gigabit LAN
| Processor System | |
| CPU | • Intel 8thWhiskey Lake-U Processor • Intel 8th Coffee Lake-U Processor • Intel 10th Comet lake-U Processor |
| CPU TDP | By CPU |

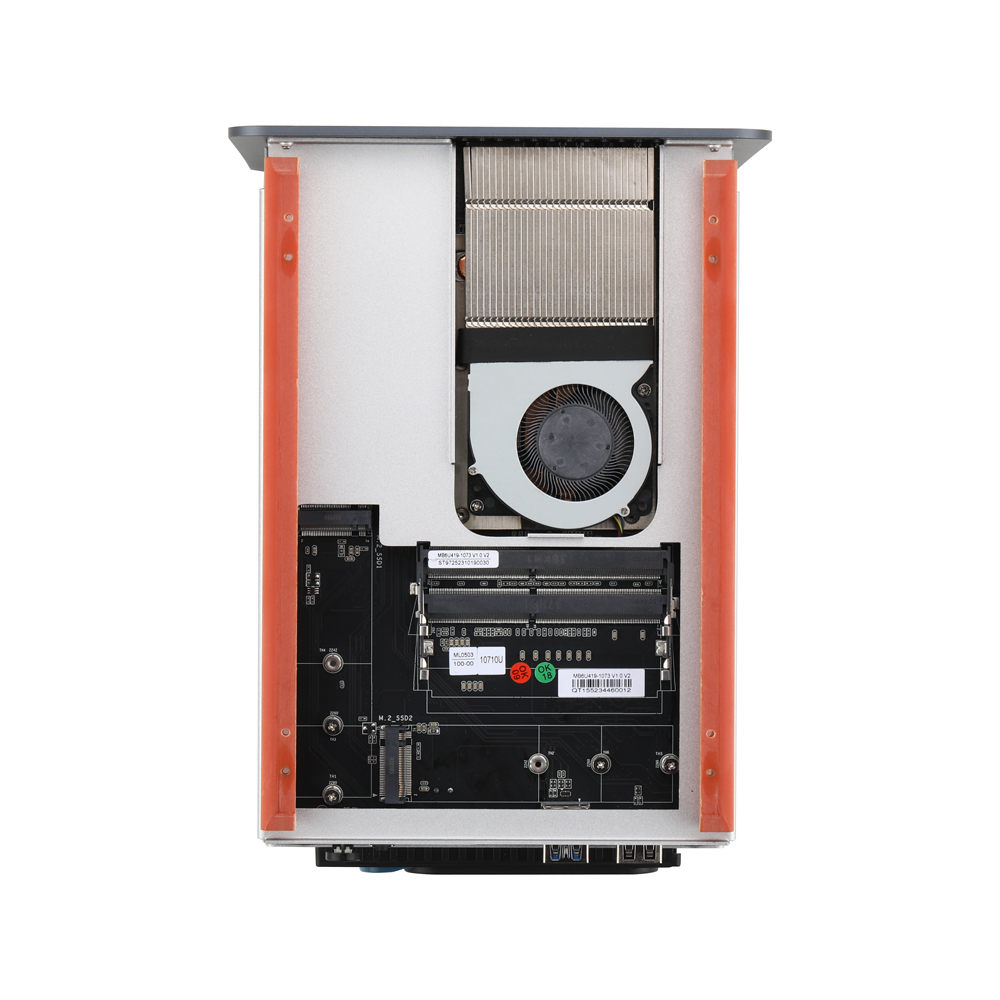

| Memory | 1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 4 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Watch Dog | Yes |

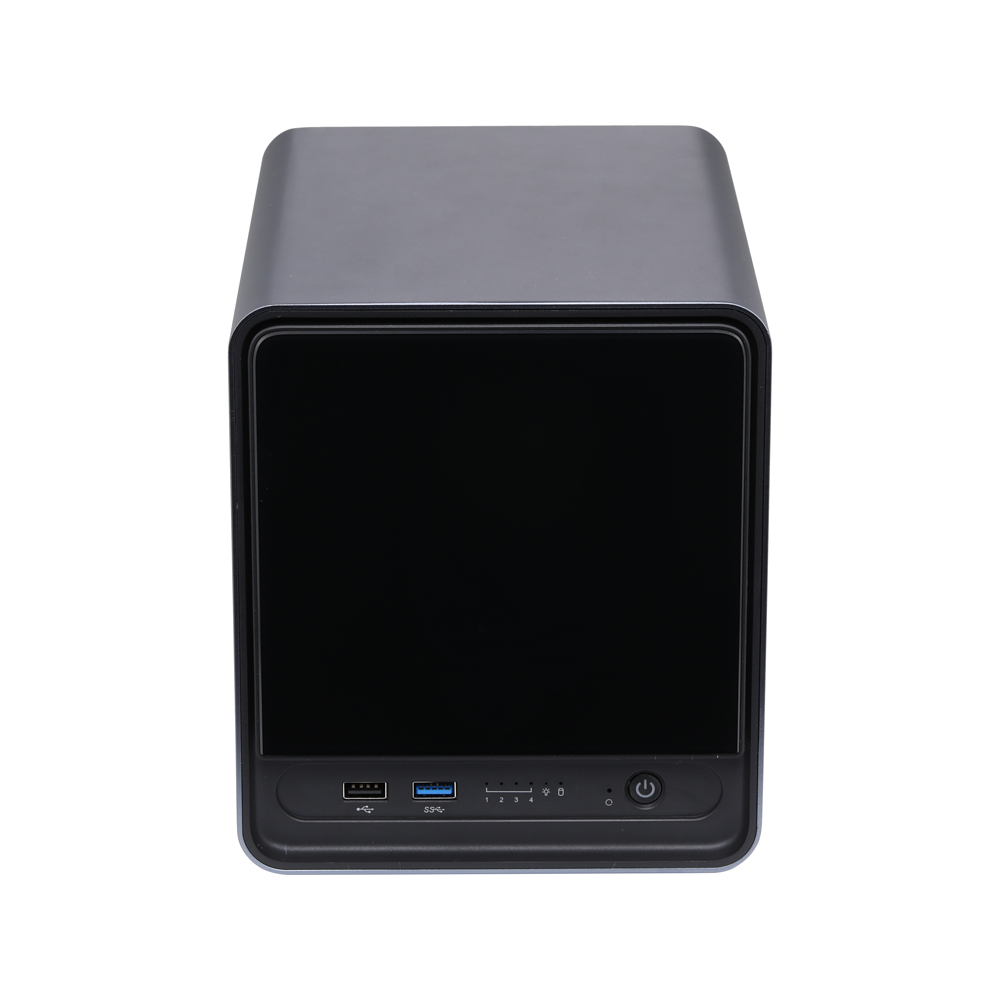

| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 1 × USB 3.0, 1 × USB 2.0 |

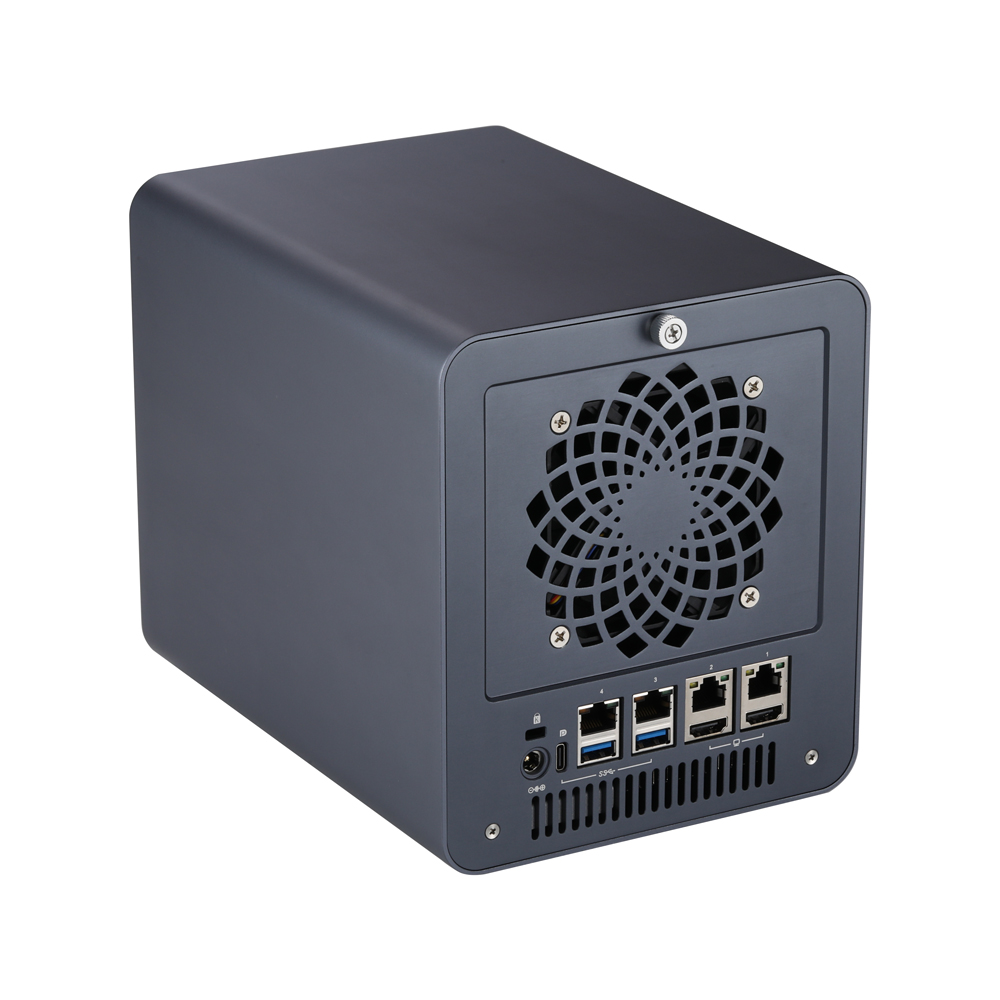

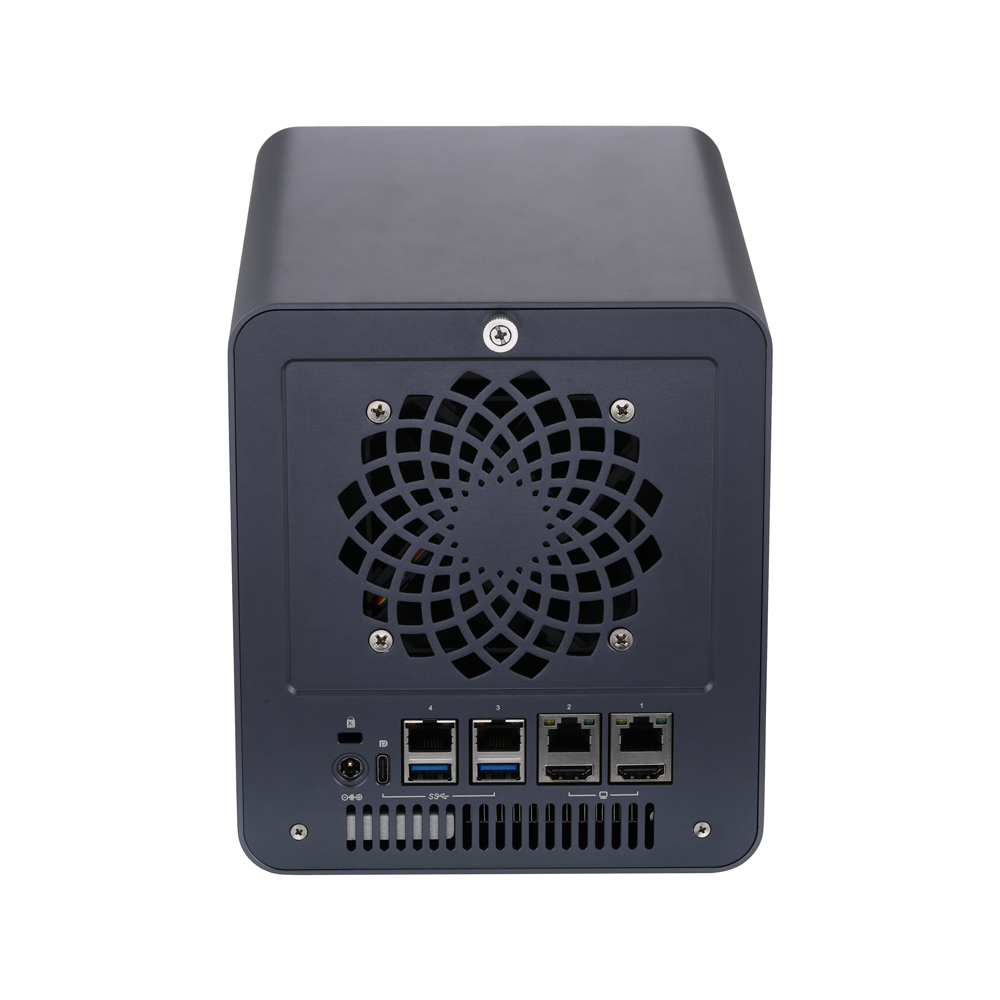

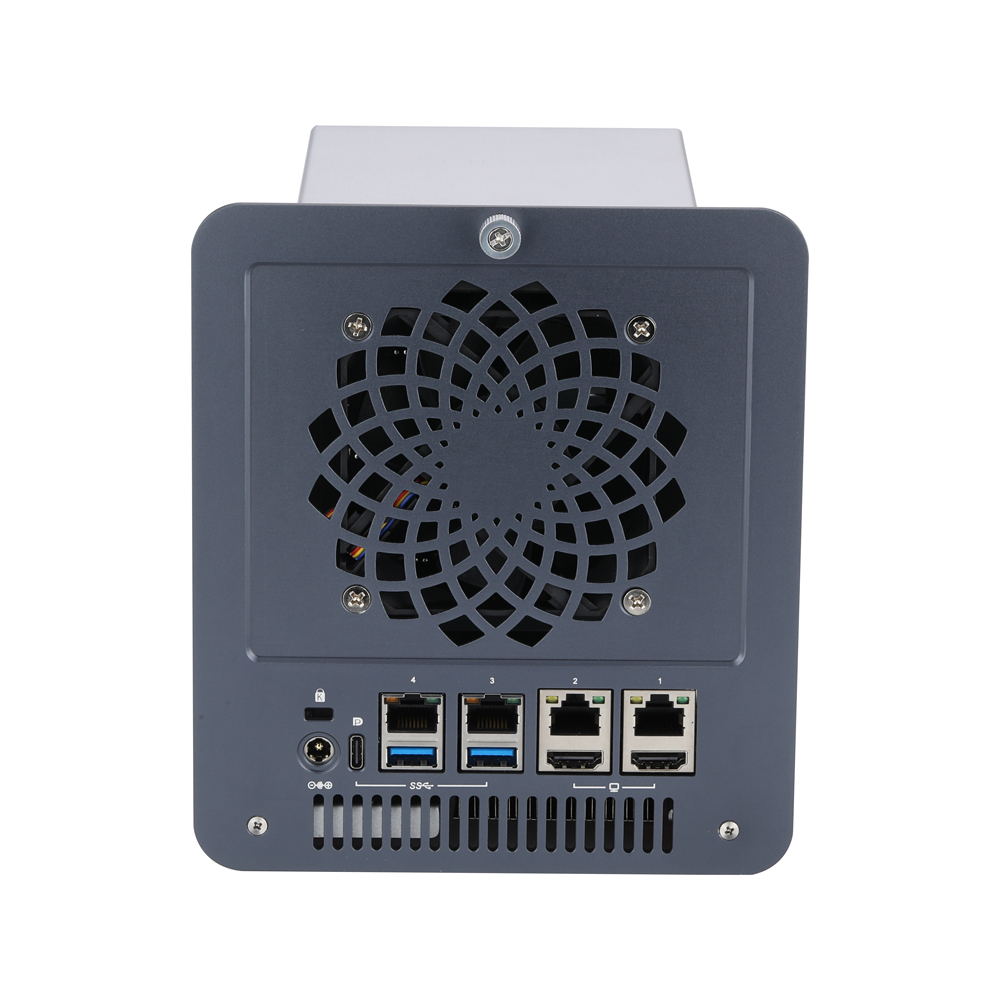

| Rear I/O | |
| Power | 1 × DC Jack |
| LAN | 4 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Video Output | 2 × HDMI |
| USB | 2 × USB 3.0 |
| Type C | 1 × Type C (USB3.0, Display Port) |
| Storage | |

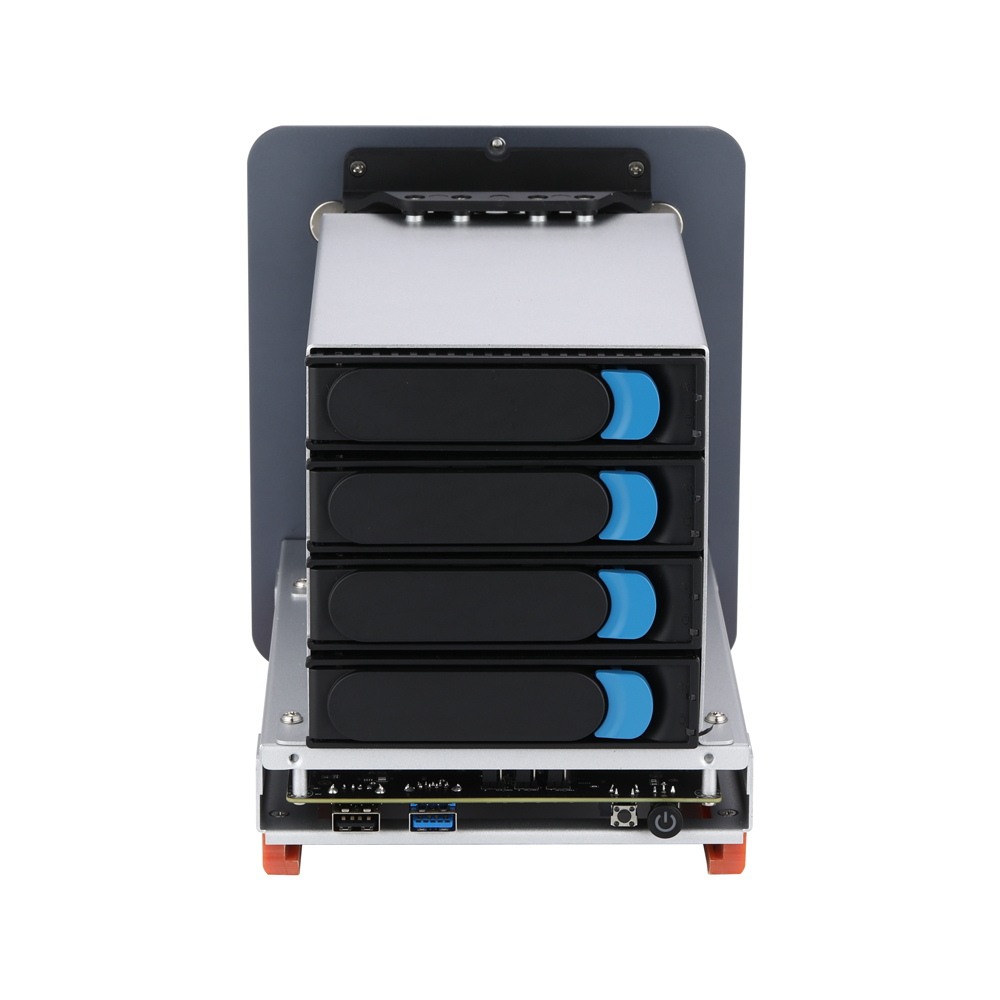

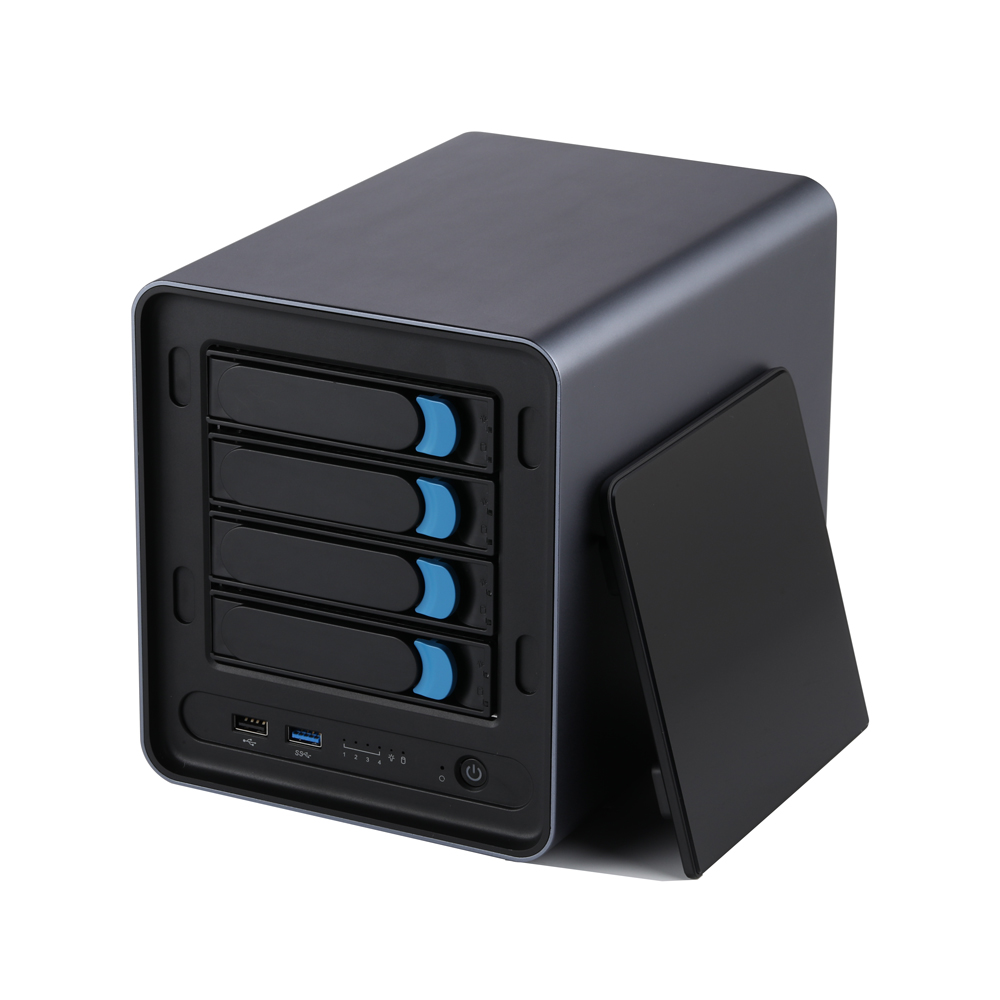

| Type | 4 × 3.5-inch HDD 2 × M.2 for SSD (M key, Type: 2242/2260/2280) |
| Expansion | |
| M.2 | 1 × M.2 for SSD (M key, PCIe 3.0 × 4) (Type: 2242/2260/2280) |
| M.2 | 1 × M.2 for SSD (M key, PCIe 3.0 × 1) (Type: 2242/2260/2280) |
| AutoStart Jumper | 1, 1 × 3Pin, Pitch 2.0mm |
| CMOS Clear Jumper | 1, 1 × 3Pin, Pitch 2.0mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| USB | 1, 2 × 5Pin, Pitch 2.0mm |
| Serial Port | 1 × RS-232, 1, 2 × 5Pin, Pitch 2.0mm |
| Power Requirement | |
| Power Adapter | 19V4.74A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 150 × 222 × 175mm |
| Weight | 3.5kg |
| Mounting | - |
| Packaging Dimension | 290 × 240 × 260mm |
| Kensington Lock | Yes |
| Cooling Mode | Fan |
| OS Support | |
| OS | Windows 10, Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | Power Adapter | 1 | |
| 4 | AC Power Cord | 1 | |
| 5 | Screws for SATA SSD/HDD | 1 |
Ordering and Specifications Information
Quick Order Model: Q30912DS-S14
| Ordering Code | Case | Code Name | Processor Type | Processor Number | Cores | Threads | Base FreqDSncy | Max Turbo FreqDSncy | Cache | Processor Graphics | TDP |
| Q30912DS | S14 | Whiskey Lake | Celeron | 4305U | 2 | 2 | 2.2GHz | / | 2M | Intel UHD Graphics | 15W |
| Q30921DS | S14 | Whiskey Lake | Pentium | 5405U | 2 | 4 | 2.3GHz | / | 2M | Intel UHD Graphics | 15W |
| Q30931DS | S14 | Whiskey Lake | Core i3 | 8145U | 2 | 4 | 2.1GHz | 3.9GHz | 4M | Intel UHD Graphics | 15W |
| Q30951DS | S14 | Whiskey Lake | Core i5 | 8265U | 4 | 8 | 1.6GHz | 3.9GHz | 6M | Intel UHD Graphics | 15W |
| Q30971DS | S14 | Whiskey Lake | Core i7 | 8565U | 4 | 8 | 1.8GHz | 4.6GHz | 8M | Intel UHD Graphics | 15W |
| Q30952DS | S14 | Coffee Lake | Core i5 | 8260U | 4 | 8 | 1.6GHz | 3.9GHz | 6M | Intel UHD Graphics 620 | 15W |
| Q31011DS | S14 | Comet Lake | Celeron | 5205U | 2 | 2 | 1.9GHz | / | 2M | Intel UHD Graphics | 15W |
| Q31012DS | S14 | Comet Lake | Celeron | 5305U | 2 | 2 | 2.3GHz | / | 2M | Intel UHD Graphics | 15W |
| Q31021DS | S14 | Comet Lake | Pentium | 6405U | 2 | 4 | 2.4GHz | / | 2M | Intel UHD Graphics | 15W |
| Q31031DS | S14 | Comet Lake | Core i3 | 10110U | 2 | 4 | 2.1GHz | 4.1GHz | 4M | Intel UHD Graphics | 15W |
| Q31051DS | S14 | Comet Lake | Core i5 | 10210U | 4 | 8 | 1.6GHz | 4.2GHz | 6M | Intel UHD Graphics | 15W |
| Q31071DS | S14 | Comet Lake | Core i7 | 10610U | 4 | 8 | 1.8GHz | 4.9GHz | 8M | Intel UHD Graphics | 15W |
| Q31072DS | S14 | Comet Lake | Core i7 | 10810U | 6 | 12 | 1.1GHz | 4.9GHz | 12M | Intel UHD Graphics | 15W |
| Q31073DS | S14 | Comet Lake | Core i7 | 10710U | 6 | 12 | 1.1GHz | 4.7GHz | 12M | Intel UHD Graphics | 15W |
PC Case Options
| Category | SATA Support |
| S14 | Yes |
Custom Options
| Category | Description |
| VGA | 1 |
| GPIO | 1 |
| Serial Port | 1 × RS-232 |
| USB 2.0 | 2 |
